CNC Router is the perfect computer-controlled machine for cutting and engraving non metals. Such as wood, acrylic, MDF, plastic, marble, rubber, epoxy resin, glass, foam, crystal and other materials. It typically falls into two types, ball screw-driven and rack & pinion-driven. More configuration options include carousel or linear ATC, double platforms, auto loading & unloading platforms, auto labeling platform, drilling head, etc.
Outstanding
stability
High
efficiency
Excellent
precision

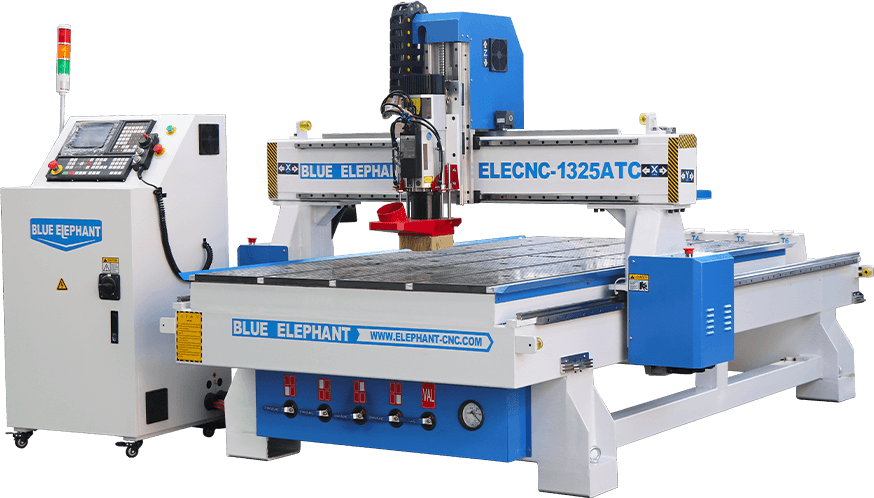

ATC CNC router is the first choice for enterprises with large production volume. Compared with the traditional manual tool change production method, this type of ATC CNC engraving machine has an independent tool magazine with different tool bits. It can automatically change the required tools by computer program control without stopping work during processing. And it can complete a series of cutting, hollowing, grooving, punching, milling grooves, milling planes and other different processing needs. Therefore, both the processing quality and processing efficiency have been greatly improved.
According to the different tool changing methods, automatic tool changing engraving machines can be subdivided into linear ATC CNC machine and disc ATC engraving machines.

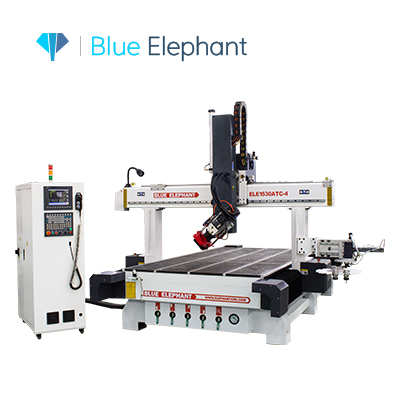

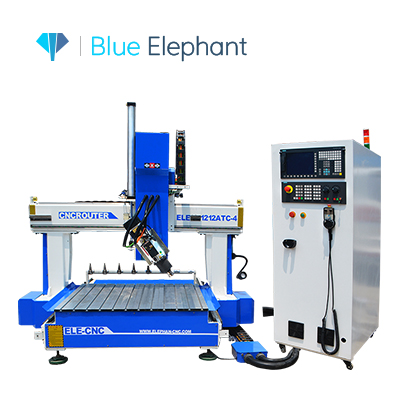

In a broad sense, a 4th axis engraving machine refers to an engraving machine whose processing path include X, Y, Z, and A axes.
And we are going to talk about a four-axis engraving machine whose spindle can swing left and right. Because the spindle of this type of engraving machine can swing left and right,
the spindle can approach the work piece from multiple different angles and efficiently process three effective processing surfaces. It can realize not only the plane engraving machine,
but also the three-dimensional engraving of irregular work pieces. And this type of 4 axis CNC machine is suitable for common work piece, three-dimensional work piece, complex work piece and irregular graphics processing.
In addition, this type of four-axis engraving machine makes full use of the geometric configuration of the tool, controls the angle of the force, reduces the vibration of the force, prolongs the life of the tool, enhances the stability of the processing, and improves the processing accuracy. With the advantages of complete functions, wide processing range and high processing accuracy, more and more users choose the 4 axis CNC router. If you have similar three-dimensional work pieces, this four-axis engraving machine will be your ideal choice.

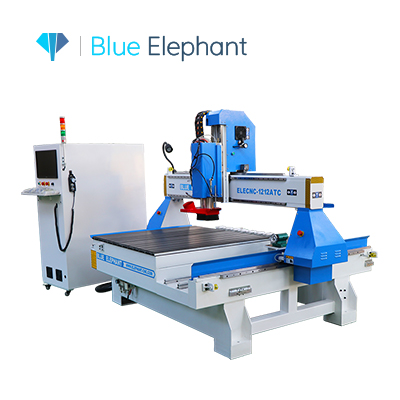

Rotary axis CNC router refers to CNC machines with a rotary device. It mainly process cube or cylindrical work pieces. During the processing, it is not necessary to repeatedly rotate and process the work piece manually. Compared with ordinary CNC machines, rotary axis CNC routers reduce manual workload and improve production efficiency. Besides that the rotary axis can also realize the processing requirements of local processing without being limited by the size of the object.
5 axis CNC router has five coordinate axes. And different coordinate axes can move simultaneously. The 5 axis CNC router is specially used for the machining of complex curved surface work pieces. It is the only means to solve the processing of impellers, blades, marine propellers, steam turbine rotors, large diesel engine crankshafts, etc. In addition, it also has a significant influence in the aviation, aerospace, military, scientific research, precision equipment, etc.

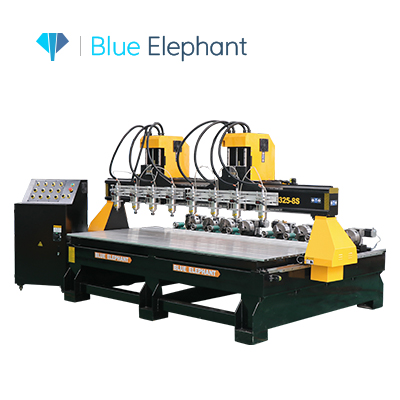

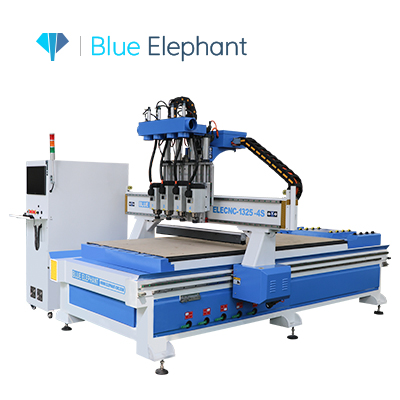

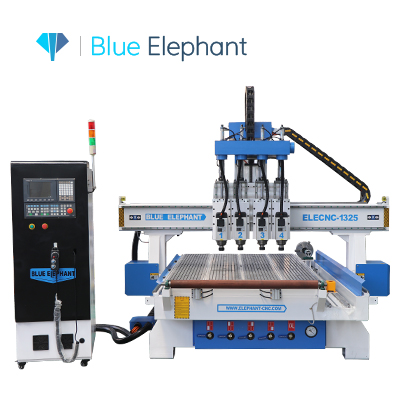

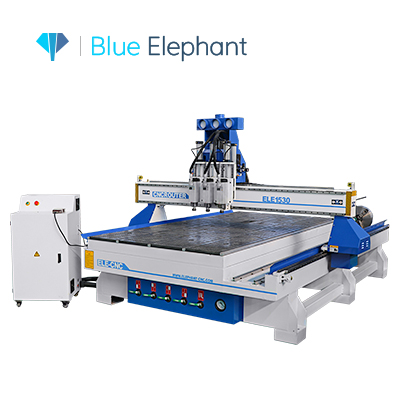

The multi-head CNC router is an advanced CNC equipment specially designed for wood cutting and engraving. It usually has two or more spindles. And each spindle is equipped with different cutting tools, allowing it to perform multiple engraving or cutting operations at the same time. So it greatly improves production efficiency.
CNC wood router has the features of low cost, simple operation and easy maintenance. It is favored by users at home and abroad. If you are just doing flat machining on some plates, this CNC wood router is definitely your ideal choice.
4x8 wood CNC machine has cost-efficient kits & popular table working size of 1325 (1300×2500 cm), it is suitable for the carving of Plywood, MDF, Solid Wood, Soft metals, welcomed by entry-level users and meets most woodworking needs.
Click to learn more.
Mini CNC router is also called small CNC router and desktop CNC router. Compared with other CNC machines, it has a relatively small size mainly including 600*900mm and 120*120mm. With a compact structure and a small footprint, it is easy to move and use. And this small CNC router adopts advanced industrial numerical control operation software and typesetting processing software to complete various processing requirements on small work piece of users. Therefore, mini CNC router is welcomed by woodworking enthusiasts and the advertising industry.
Foam CNC router is also called EPS CNC wood router for processing foam. Relative to heavy-duty metal cutting machine, foam engraving machines are lightweight CNC machine. And compared with ordinary engraving machines, this type of foam engraving machine has a larger processing size and processing stroke. Especially in the mold industry such as automobile foam molds, gypsum molds, paraffin molds, large ship wooden molds, aviation wooden molds, propellers, and train wooden molds, this type EPS CNC router is very popular.
CNC router is a kind of computer numerical controlled woodworking machine and used for cutting and engraving various materials, such as wood, acrylic, PVC board, MDF, marble, rubber board, plastics, glass, and foams, crystal, etc. The wood CNC router machine is widely used in many industries such as interior and exterior decorations, wood panels, signboards, wooden frames, moldings, musical instruments, furniture, and so on.
Blue Elephant offers a variety of CNC wood router machines with many standard configurations for you to choose from. For instance, ATC CNC machines, 4 axis CNC machines, 3 axis CNC machines, multi-head CNC machines, mini CNC machines, best hobby CNC machines, stone CNC machines, and EPS CNC machines. In terms of worktable size, the best CNC router falls into 2x4, 4x4, 5x10, 4x8 CNC router, etc.
According to your different processing materials and processing requirements, we also provide customized production of CNC engraving machine. Whether it is the machine parts selection or machine processing size, we are committed to satisfying your diverse processing needs with the highest price/performance ratio. With an annual export volume of over 3,000 units, the best CNC machines from Blue Elephant are the first choice for your engraving industry.
Customized production can save you 30% of additional procurement costs. We can customize the wood CNC machine in accordance with your specific CNC wood carving demands. The custom options may include the worktable size, worktable type, power and brand of all mechanical and electrical parts of the wood CNC machine.
International top brand accessories to ensure your higher productivity and increase profit margin by 40%. All major mechanical and electrical parts of our wood CNC machine come from domestically or internationally known brand. For example, HSD spindle, YASKAWA motor, SIEMENS control system, etc.
Professional product and operational training, reducing operating error rate by 80%. We have a R&D team of more than 20 people focusing on the production and innovation of the wood carving machine. Our 6 sales team of more than 40 people can provide you with complete information of the wood carving machine in time.
Perfect after-sales service can help you avoid any worries in the use of the machine. An after-sales team of over 15 people provides you with 24/7 online and offline services to solve your worries about the CNC wood cutting machine.
Since the processing requirements of users are different, the choice of the best CNC router machine models is also different. Therefore, we need to choose the right woodworking CNC engraving machine according to our own processing needs.
For example, if your main business is door panel processing, an ordinary CNC wood router can meet your demands. For example, 3 axis 4x8 CNC router, etc. If you need to engrave various patterns and designs, you’ll need multiple CNC router bits. Then an ATC CNC router machine or a multi-process CNC router for sale with multiple CNC bits is your best CNC router choice.
In case that your business involves the production of double-colored signs, nameplates, small signs, and 3D letters, crafts, and gifts, desktop CNC machines can be your best choice. For example, the CNC 6040, CNC 6090, and other desktop CNC router. All the CNC 6040, CNC 6090 and other desktop CNC machines are the best hobby CNC woodworking machines for the advertising, craft and gift making, and small furniture making industries.
If you are mainly processing three-dimensional workpieces, then you need a 4-axis CNC machine or a 5-axis wood CNC router. If you are mainly processing cylindrical workpieces, then you may need a rotary axis wood CNC machine.
And if you mainly process soft material workpieces, such as fabrics, then you need a digital cutting machine. If you are mainly processing hard materials such as stone, then the stone CNC machine is your ideal choice.
Of course, if you are processing foam and other materials, a foam CNC engraving machine could be a good choice.
For CNC machine manufacturers, we must first consider the manufacturer’s production strength. Production strength is directly reflected in the woodworking CNC machine quality and types of CNC machine. Therefore, it is very necessary to visit the manufacturer for field inspection if possible. Field inspection can more intuitively inspect the processing effect of the CNC wood carving machine. In addition, remember to check if the CNC wood carving machine manufacturer provides a complete after-sales service system. These services include a series of pre-sales and after-sales services. It is specifically manifested in software training, technical guidance, installation guidance, and usage guidelines of the wood carving machine. A perfect service system shall allow you to sit back and relax in terms of the wood CNC machine purchase, operation, installation, and maintenance.
Customers should choose the model of their best CNC router machines according to their business needs and budget. Generally, the wood engraving machines with small CNC router table sizes mainly include 300x400mm, 600x400mm, 600×600mm, and 600×900mm, and the feed width needs to be less than 600 mm. Such CNC routers for woodworking are also deemed as the desktop CNC router or hobby CNC router. Engraving a two-color board is the most basic application of a desktop CNC router, and it is very acceptable. The price of the hobby CNC router is relatively inexpensive.
CNC engraving machines with large CNC router table size include 1200×1200mm, 1200×1500mm, 1200×2400mm, 1300×2500mm, 1500×2400mm, 2400×3000mm. And the feed width of the above models is less than 1200mm. The most commonly used size of wood panels for cabinet making is 1220×2440mm. So the 4x8 CNC router and other CNC routers for woodworking with larger router table sizes are quite suitable for processing such wooden panels. Among the best CNC machines, the 4x8 CNC router is the best-selling model.
Choice of the spindle motor.For the spindle motor of the woodworking CNC machine, different power suits different CNC woodworking applications. You need to choose a spindle motor suitable for your use according to your materials and processes. This can improve production efficiency and save resources.
Generally, low-power spindle motors are mainly used in the advertising industry and fine processing of small crafts. And it is mainly for engraving work. Because of its low power, the ability of a wood carving machine to cut thick materials is relatively poor. And it is not suitable for engraving and milling thick materials.
The general high-power CNC engraver machine spindle motor is mainly for cutting, engraving, and milling. The high power ensures strong cutting ability.
Choice of the drive system.There are two options for the drive system of the CNC routers for woodworking, namely three-phase stepper motor and servo motor. The servo motor is a closed-loop control. It will measure the speed of the motor in real-time when the wood CNC machine is powered on. Because of its large starting torque, the starting speed is fast, and it will reach its rated speed in a short time. In addition, its overload capacity is strong and suitable for the cases of frequent starting and stopping and when the starting torque is required. However, the stepper motor belongs to open-loop control, does not measure the speed, starts relatively slowly, and generally does not have the overload capability.
If your production requires fast speed and high processing accuracy, we recommend the servo motor for your wood CNC machine. But the price of a servo motor is much higher than that of a stepper motor. In case that you neither want a stepper motor nor have enough budget, the hybrid servo motor could be a good choice for your wood CNC machine.
Choice of the transmission system.Generally, the drive system of the CNC router machine adopts a rack guide rail. The rack falls into the straight rack and helical rack. Compared with the straight rack transmission, the helical rack has better bite and higher precision. Guide rails of the wood CNC machine generally include square rails and circular rails. The load capacity and accuracy retention capacity of square rails are several times that of circular rails. The large-format CNC routers for woodworking usually adopt square rails as the transmission system. This can not only improve the processing accuracy but also improve the service life of the CNC routers for woodworking.
The most important factor affecting the CNC router price is the CNC wood router configuration. Depending on the configuration of the wood engraving machine, the processing functions realized by the CNC wood router machine are also different (cutting, hollowing, lettering, plane carving, embossing, etc.). Thus, the CNC router price is naturally different. The configuration related to the CNC router price mainly has the following 7 aspects:
1. Transmission method.In terms of transmission mode, wood engraving machines are divided into ball screw-driven CNC router machine and rack-driven CNC router machine. The three axes of the former CNC router machine are driven by ball screws. While the X and Y axis of the latter CNC wood router is driven by racks, and the Z axis can adopt ball screw transmission. Therefore, from the perspective of driving mode alone, the price of a rack-driven CNC wood cutting machine is more expensive than a ball screw-driven machine.
2. Spindle.When it comes to the cooling method of the spindle, the water-cooled spindle of the same power is cheaper than the air-cooled spindle. From the brand point of view, imported brand spindles are more expensive than domestic ones. To take the point of the power, high-power spindles are more expensive than low-power ones.
3. Motor and driver.Similar to the spindle of the CNC woodworking machine, the power and the brand of the motor and driver are also the main factors that determine the CNC router price.
4. CNC router table.The most commonly used CNC router table falls into three types: aluminum T-slot, vacuum T-slot, and whole vacuum worktable. Besides, the CNC router table also comes in various dimensions. Different types and sizes of CNC router tables lead to different prices. The higher the worktable size, the higher the CNC wood cutting machine price.
5. Machine bed.The machine beds of a CNC wood router can fall into ordinary square tubes, thick-walled square tubes, cast iron, and other types. CNC routers for woodworking, especially nesting CNC, shall have rigid and durable wood CNC machine bed for the purpose of long-term and large quantity of cutting work. The cost of the bed also has an effect on the price of the CNC wood router.
6. Crossbeam.The material of the crossbeam of a wood CNC machine can be steel, iron, or aluminum. The material of the beam directly affects the machining accuracy. And the price of different materials varies greatly.
7. Guide.The guide rails of the wood CNC router are divided into square rail compasses. The gauges of the same specifications are stable and accurate, and of course, the price is much more expensive than the compasses.
In addition to the factors listed above that affect the CNC router price, other factors may include after-sales service fees, packaging fees, transportation fees, customs fees, etc.
