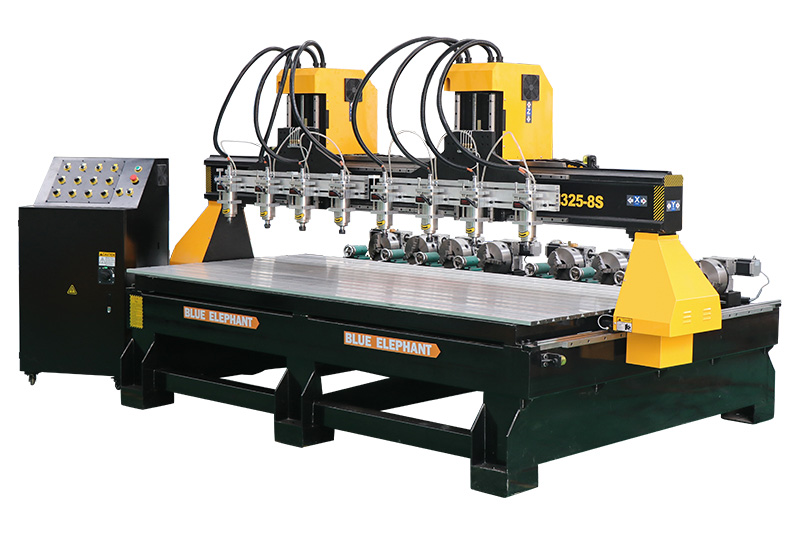

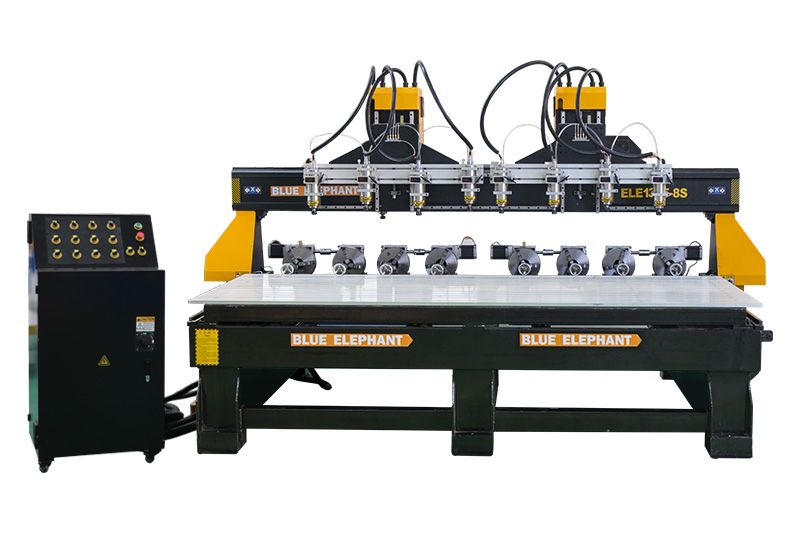

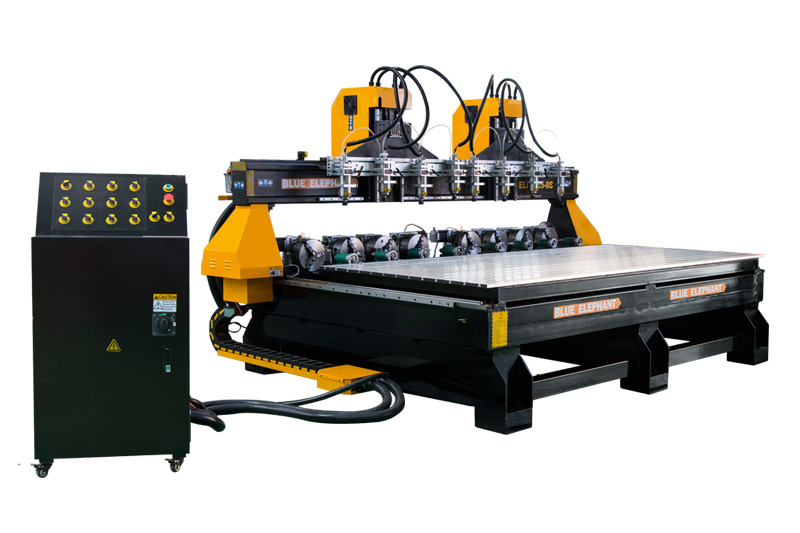

Multi Spindles Woodworking Machine with 8 Spindles

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC1325-8S
Category : Multi-head CNC Router
Price Range : $10,000 to $30,000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

Compared with other multi spindle CNC router, this machine has more spindles, 8 spindles work in the same time, greatly improving the processing efficiency. In this case, the machine has some similarities with ATC CNC router Machine.

Features

1. Multi spindles can work at the same time, and the machine can improve the engraving efficiency.
2. Adopting water cooling spindle, it has the features of low noise and better cooling effect.
3. Designed with rotary device, the machine can be used to process cylinder objects such as table legs, stair handrails, sculptures, 3D relief and so on.
4. The account of spindle and working area can be customized according your requirements.

Parameters

Model	ELECNC1325-8S
X,Y axis travel	1800*2500mm, option: can be customized by customer requirement
Z axis travel	300mm,option: 400mm, 500mm, etc
Spindle type	2.2kw water cooling spindle, 0-24000RPM * 8 sets
Inverter type	2.2KW * 8 sets
Rotary device	Diameter 100mm (Options 80mm,160mm, 200mm, etc.)
Tool Collet	ER20 collet: φ4, φ6, 1/8, 1/2
Control system	DSP B18 control system
Driving system	Leadshine servo motor and driver
Machines tructure	Heavy duty body with steel structure beam
Work table	Movable T-slot working table
Linear guide	Taiwan linear guide
Transmission	X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	ArtCAM, Aspire, Fusion 360, etc
Command language	G Code & M code
Traveling speed	15m/min
Working speed	0-5m/min
Working accuracy	±0.03mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Accessories	Water chiller
Control system	NC studio, Taiwan LNC
Spindle type	Air cooling spindle

Click for details

Frequent Asked Questions

1.What spindle power can I use with this machine?

Consider the number and weight of spindles, we suggest you choose 1.5KW spindle and 2.2KW spindle. Usually, it is enough for carving work, such as table legs and chair legs.

2.Water cooling and air cooling spindle, which one is better?

Both water cooling and air cooling spindle are in good quality. The water cooling spindle use water cooling method so it needs you to maintain a water pump or water chiller, but the cooling effect is better. Air cooling use a fan to cooling so it doesn’t need maintain but it will be a little noisy than water cooling. You can choose based on your situation such as environment temperature.

3.How can I choose the suitable working area?

For this kind of machine, you can tell our salesman your maximum material size or cylinder diameter. Then we will recommend you the suitable rotary and working area.

Multi-head CNC Router Details

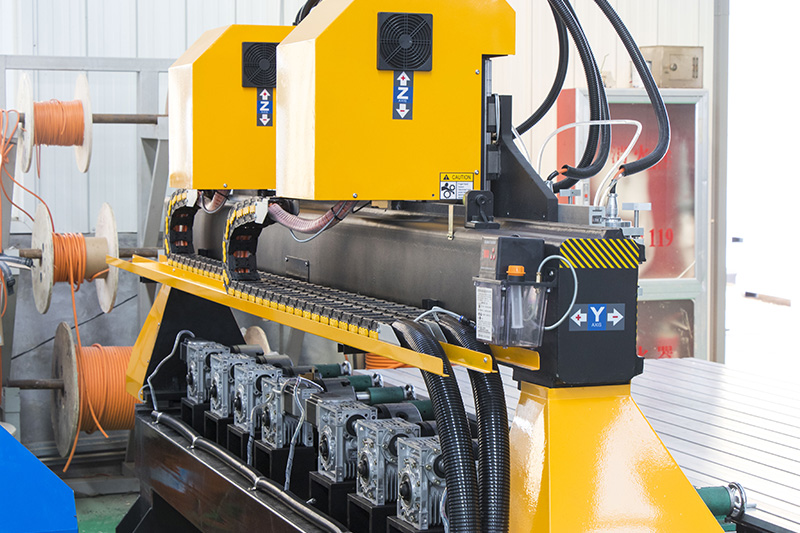

Rotary device

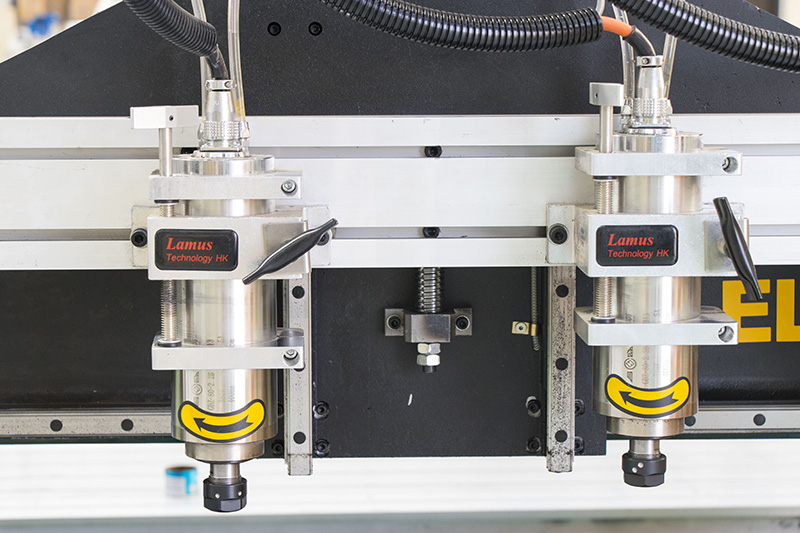

Water cooling spindles

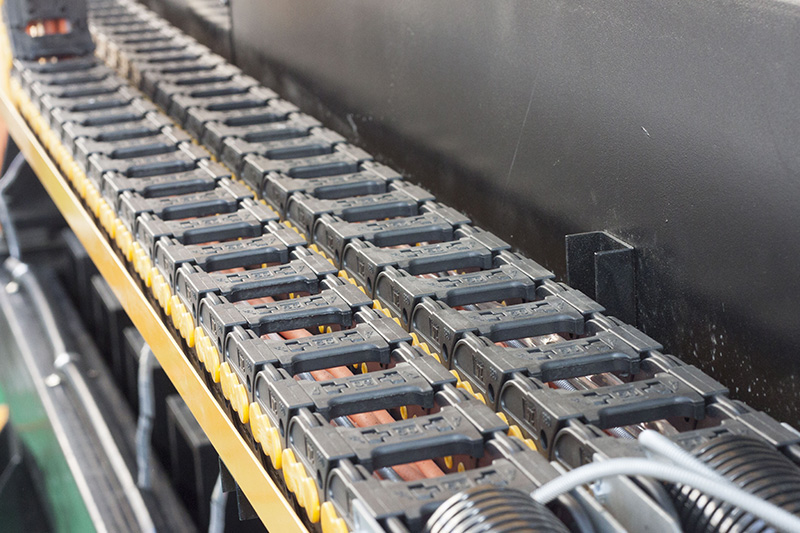

Towline

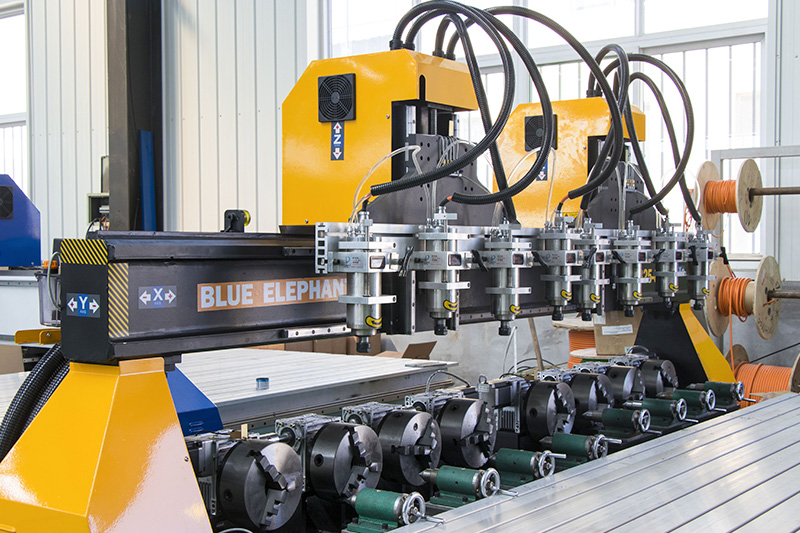

8 spindles

Application

Main application: process 3D wave boards, cabinet doors, solid wood doors, craft wooden doors, paint-free doors, craft window, art embossed screens,embossed craft gifts, solid wood art murals, woodwork calligraphy carving, art photo frames, electrical countertops, sports equipment, violin arcs, non-ferrous metal carving and cutting. Widely used in antique furniture, European-style furniture and other furniture industries.

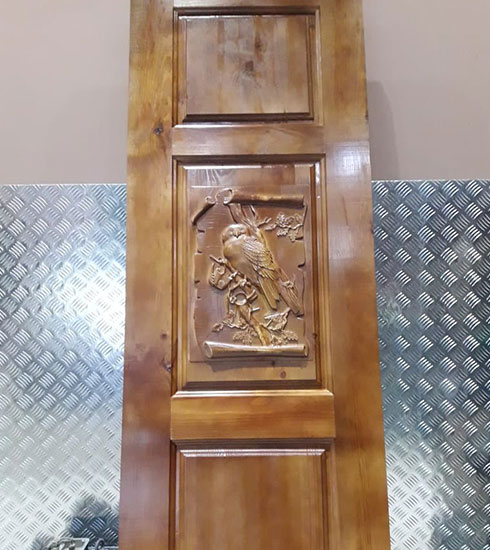

Samples
