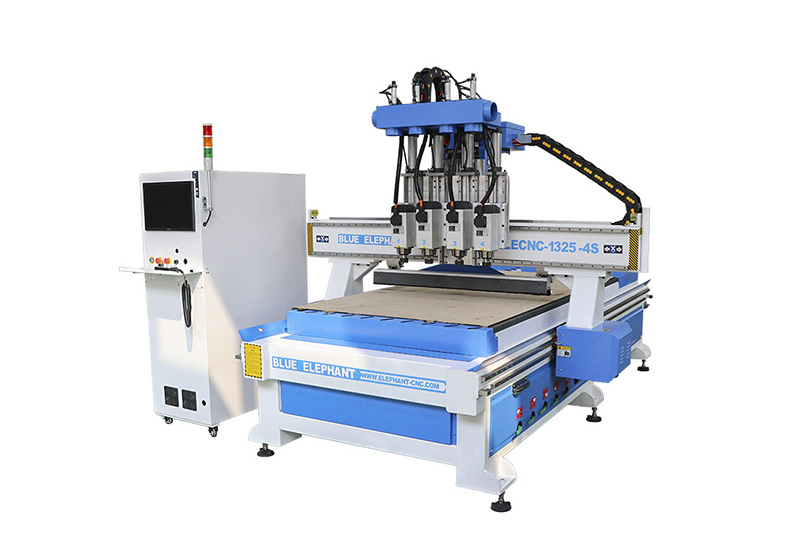

4 Spindles CNC Wood Router
4 Processes Nesting CNC Router

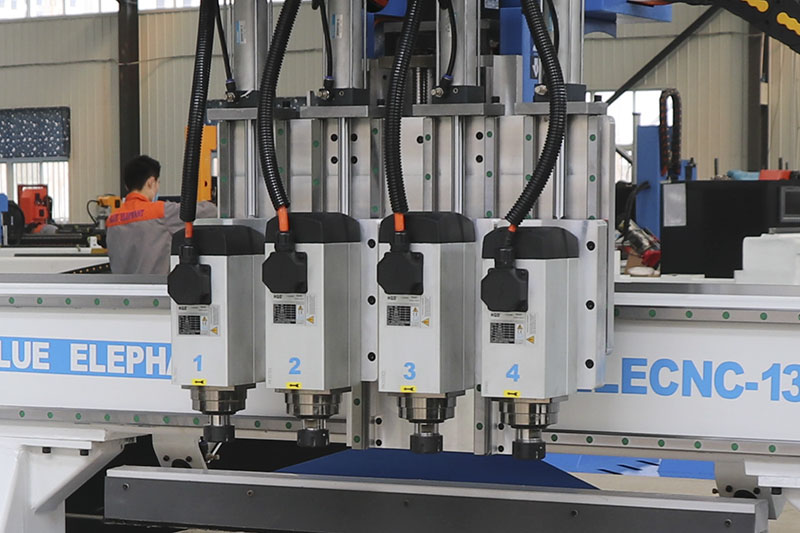

This is a multi-spindle engraving machine with 4 spindles. The 4 spindles are automatically changed according to the processing requirements, which greatly saves the time of manual tool change and also improves the production efficiency accordingly.
1. With air cooling spindle, and the working speed can reach to 18000RPM for per minutes.
2. 4 spindles CNC is much more economic than ATC, so it is good model to choose if you are in furniture industry.
3. With heavy-duty frame and gantry; the machine was designed for durable.
4. Adopting automatic tool sensor, it can save more time and increase efficiency.
| Model | ELECNC-1325-4S |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm, 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 4x3.5kw HQD air cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Control system | DSP A123, option: Japan Syntec 60we, Taiwan LNC 2200 |
| Driving system | Stepper FL118 motor and drivers.option:850w Japan Yaskawa servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | 10-12mm steel plant heavy duty body |
| Work table | Vacuum& T-slot work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | 20# Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc. |
Click for details

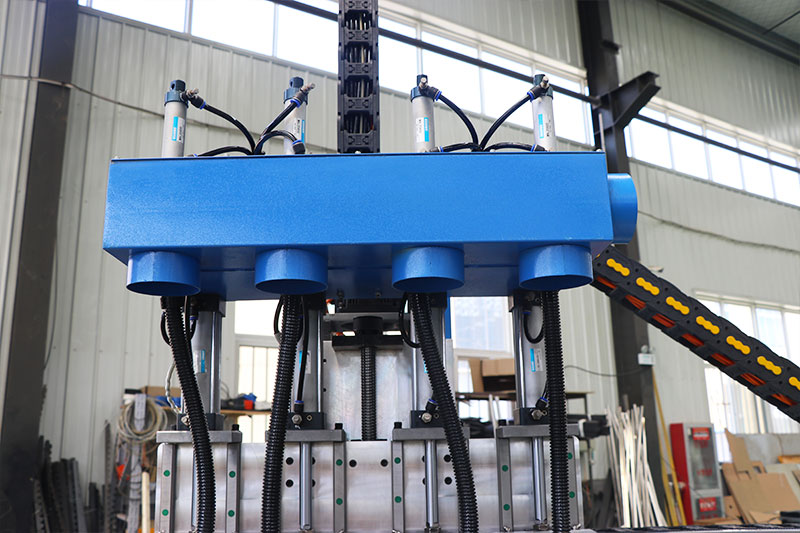

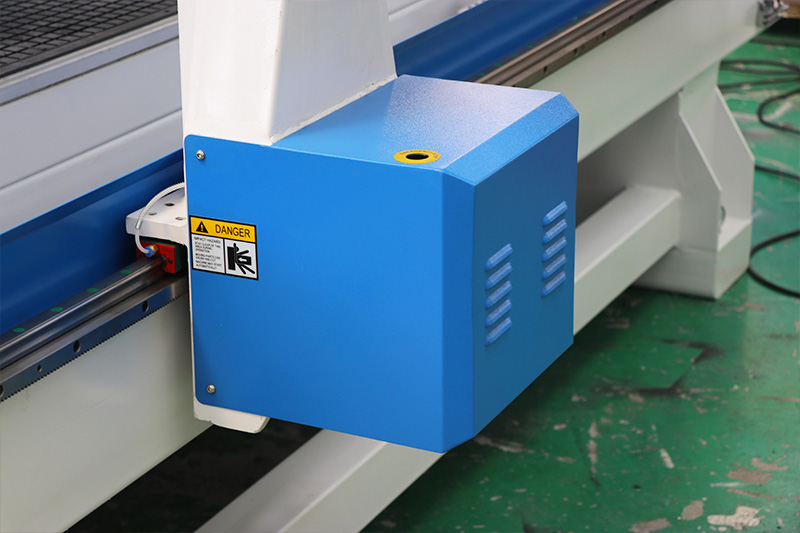

Spindles

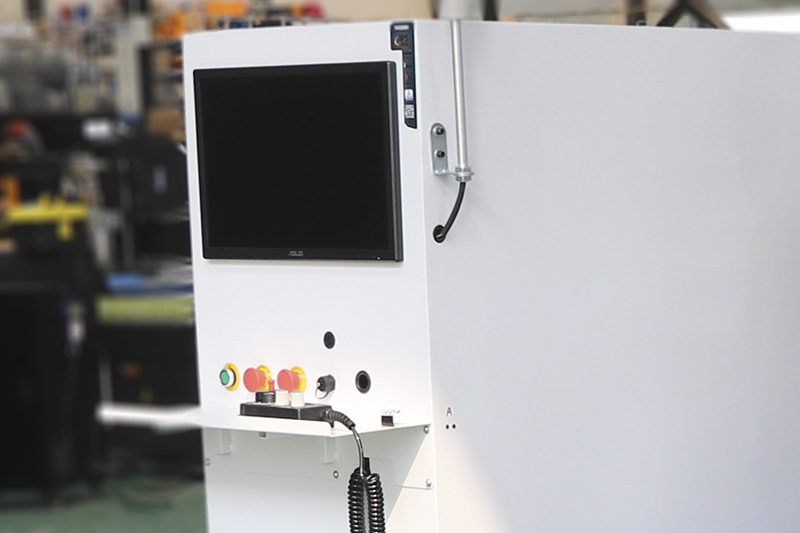

Cabinet

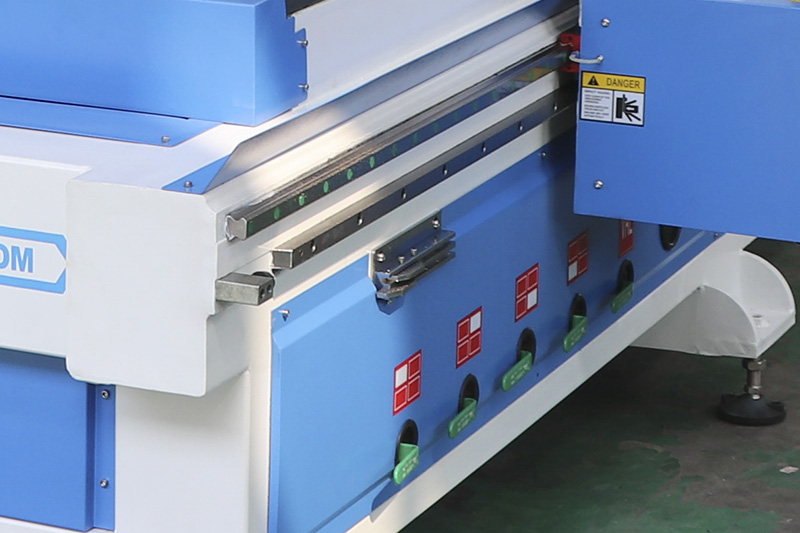

Guide rail
