Description

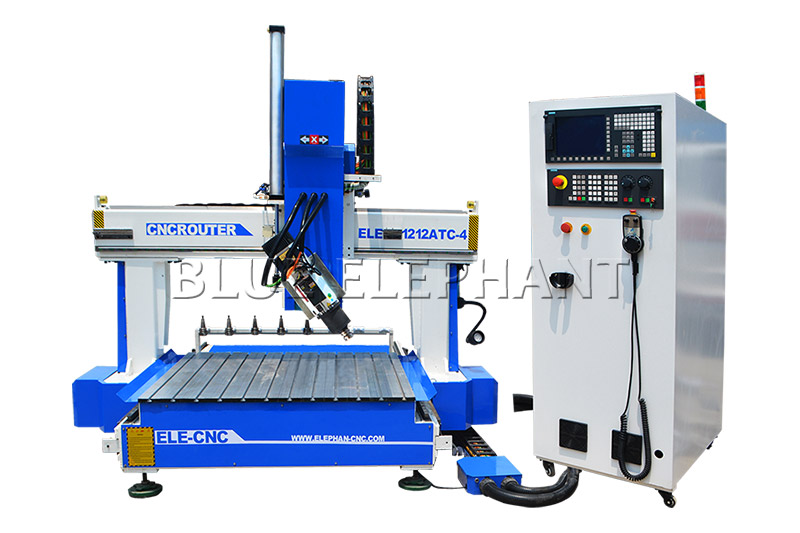

Small 3D CNC Router is a 4 axis cnc machine with automatic tool changer spindle, good at 2D/3D wood carving and engraving, it has a smart table size of 1200*1200mm / 4'x4'.

Features

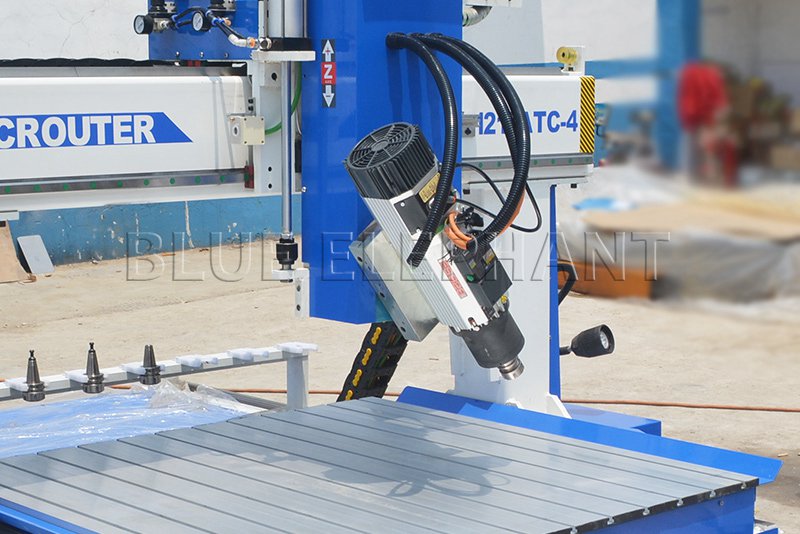

1. The spindle kit of Small 3D CNC Router is able to swing ±90 degrees, meets the processing need of 3D and complex surface carving;
2. Linear tool changing method has fast tool changing speed, cost-effective, which greatly saves the processing time;
3. Quality global-brand CNC kits, such as Siemens controller and servo motors, ensure the long time and accuracy of woodworking;
4. Smart table size saves space, very popular in personal business or workshop.

This machine is best for automatic woodworking of small 3D workpiece, long-time complex engraving and carving in wood or other materials such as acrylic, MDF, plastic, hardwood, etc.

Parameters

Model	ELECNC1212ATC
X,Y axis travel	1200x1200mm, option:15003000mm;21003000mm;2100*4000mm,etc
Z axis travel	200mm, option:300mm,400mm,500mm,600mm,etc
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Drilling bank	Taiwan or Italy 5+4 vertical drills
Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet	ISO30,ER32 collet:φ4,φ6,1/8,1/2
Control system	Taiwan SYNTEC /LNC controller, option：Ncstudio
Driving system	1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option:1kw Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	5 pieces(X2,Y3)
Linear guide	Taiwan Linear guide with dust proof
Transmission	X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool Calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE,cUL certificate
Compatible Software	Artcam,Alphcam,Type 3,Ucancam, Aspire,etc
Command Language	G Code & M Code
Traveling speed	80m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working Accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	1. Water circulation 2. Ring blower 3. Rotary vane,oil-free: Tongyou,Taiwan Eurovac,Germany Becker
Dust collect system	1. 3kw,5.5kw,7.5kw,etc,including dust hood, pipe, all full set 2. New type
Air Compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc

Click for details

Frequent Asked Questions

How to quickly learn to use ATC CNC router?

Basic CNC programming is very easy to learn and can be completed in a few days. However, you need to understand basic mathematics and how processing works. You can learn intermediate CNC programming skills within one year.

Do I need to calibrate the CNC router?

Yes. The CNC router must be calibrated on a regular basis to avoid any potential error in the machining process, in order to meet the customer’s demands as always. In accordance with the manufacturer’s original specifications, CNC machine calibration aims to diagnose and correct errors that may deviate over time.

How to choose between the linear ATC or carousel ATC?

Carousel ATC tool change action more fast. And the linear ATC structure is simple and reliable, but spend more time on tool change.

Do I need to replace the collets of the CNC router?

Yes. The collet is a small part used to physically secure a CNC router cutter to the spindle motor shaft of the CNC router. The collets fall into multiple types and sizes according to the design of CNC router spindle motor shaft and the cutter holder. It is necessary to replace the collets regularly in the daily maintenance of the CNC router. This can ensure better performance, longer service life and better results of the CNC router cutters. If you use your CNC router every day, you may need to replace the collets every three months.

ATC CNC Router Details

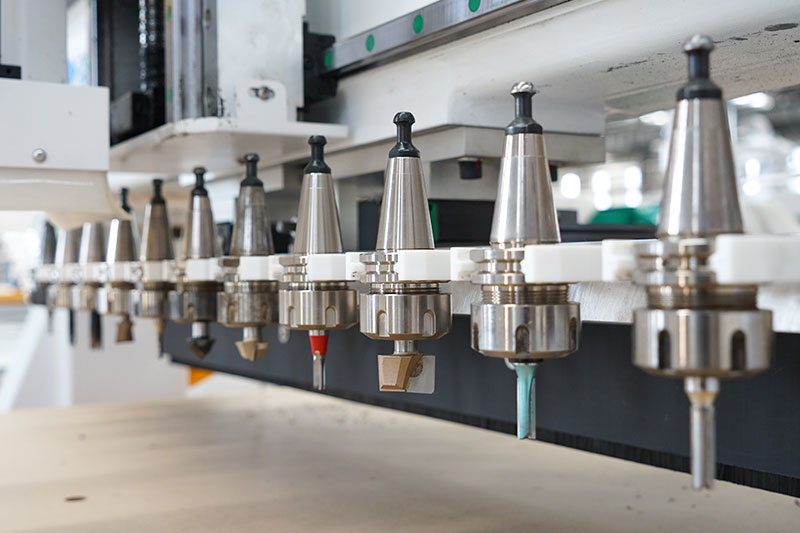

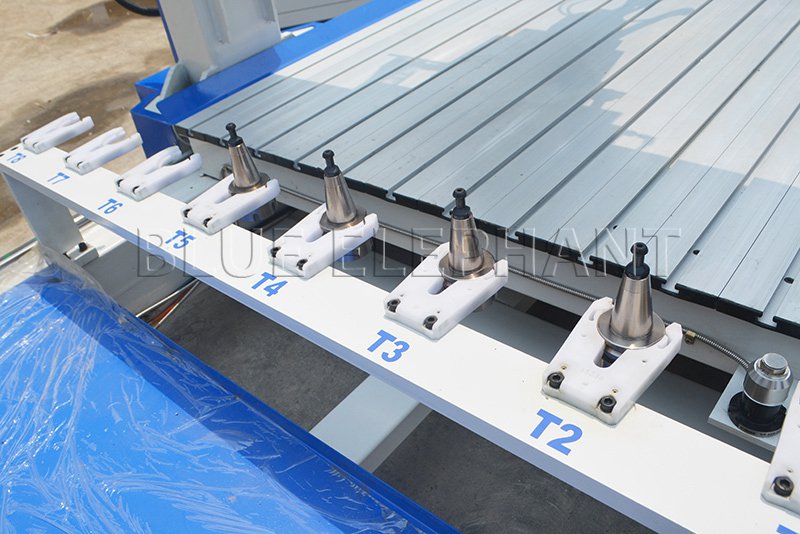

Linear tool magazine

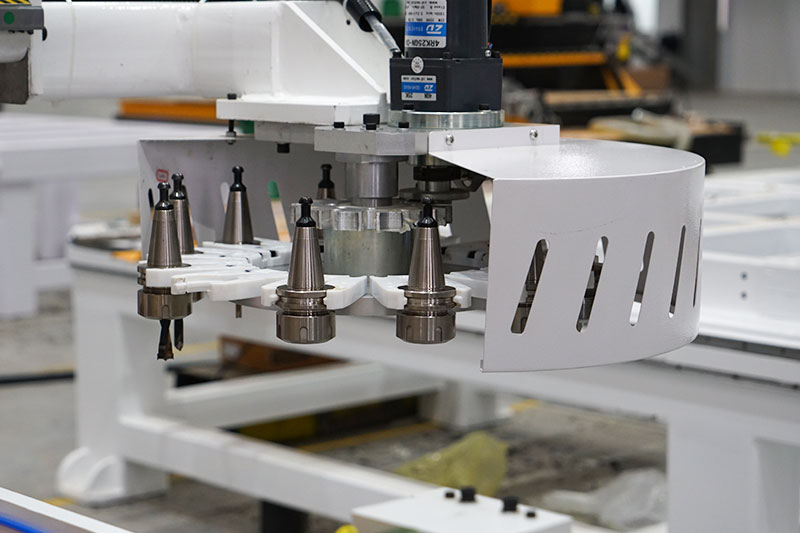

Carousel tool magazine

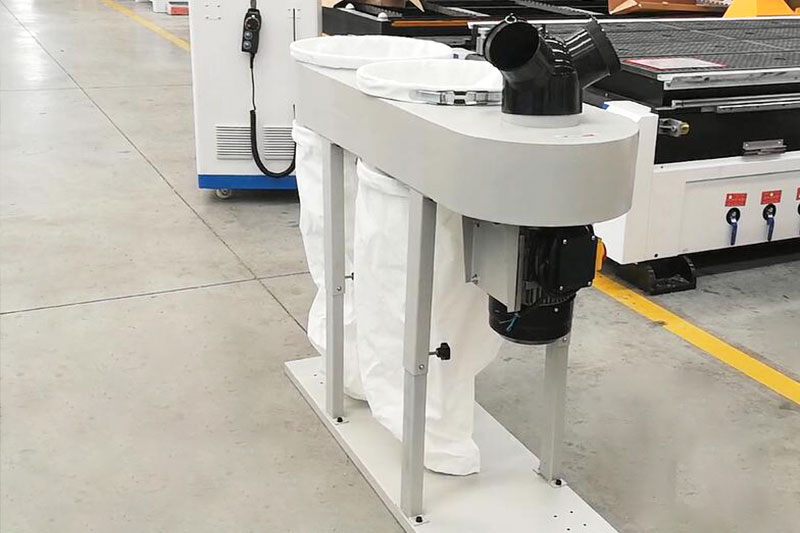

New type collector

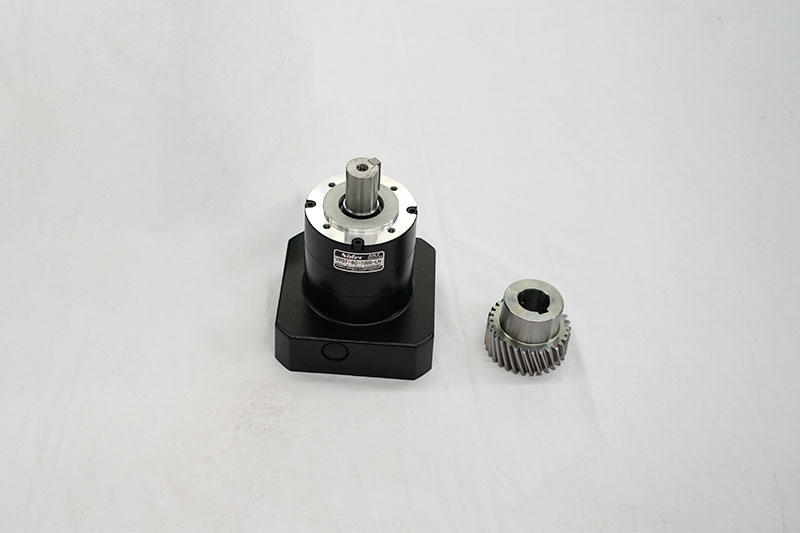

Shimpoo reducer

Application

The 4 axis ATC CNC router here refers to the ATC CNC router with a rotating spindle, which can swing 180° from left to right. The working path of the 4 axis ATC CNC router includes X, Y, Z and A axis. So it is also suitable for cutting and engraving 3D workpieces, such as foam molds, wood and stone sculpture and statues except for the basic applications. In addition, it can also drill side holes or make side grooves or slots on the side of wood panels. The 4 axis ATC CNC router has an extensive use in sculpture and statue making, mold, furniture, decoration, craft, advertising and other fields.

Furniture industry: various types of doors, windows, cabinets, shelves, tables, chairs, sofas, couches, stools, benches, beds, desks, night stands, bunks, cupboard, tea boards
Decoration industry: door frames, handrails, building columns, pillars, table legs, chair legs, photo frames, mirror frames, screens, lights, holiday decorations
Craft industry: artworks, gifts, souvenirs, clock frames, stamps, badges, medals, trophies, holiday ornaments
Advertising industry: advertising signs, logos, labels, 3D letters and numbers, double color boards, acrylic nameplates, company names, LED lights
Mold industry: wood mold, foam mold and metal mold
Musical instrument industry: 3D surface carving, shape cutting, guitar, bass, violin, viola, violoncello, erhu, and other string instrument
Other: printed circuit boards, isolated materials, engraving or routing of home appliance enclosures, EVA packages of tools and devices, engraving or routing of the lining material of medical equipment, electronics or other containers.

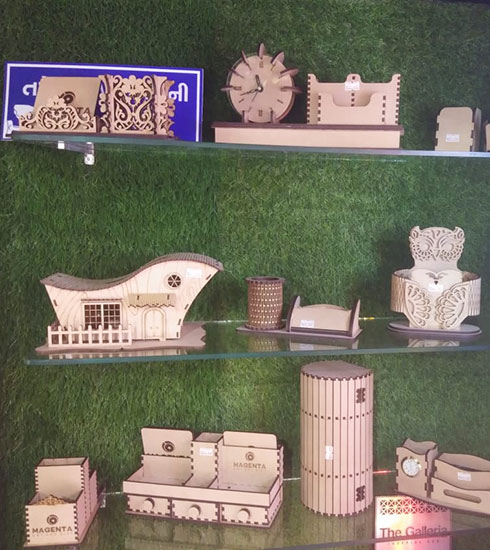

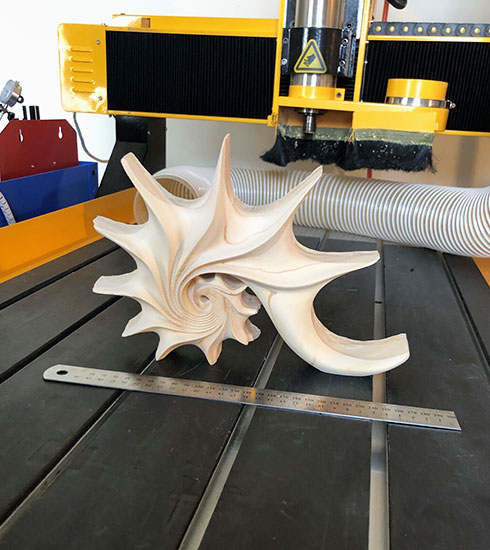

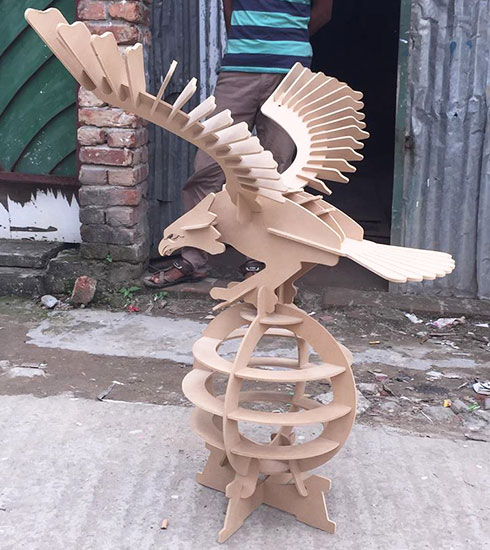

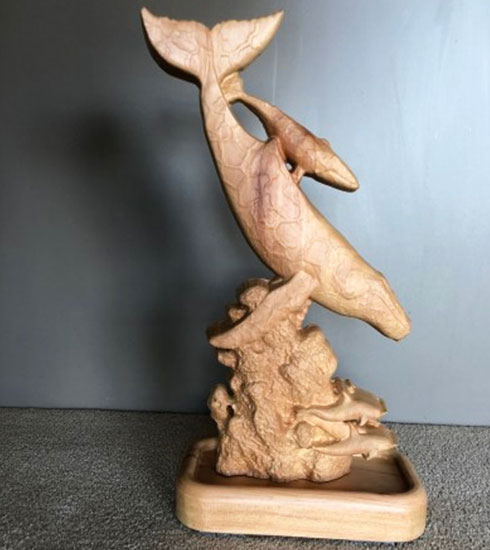

Samples
