1212 Small CNC Router Working on MDF

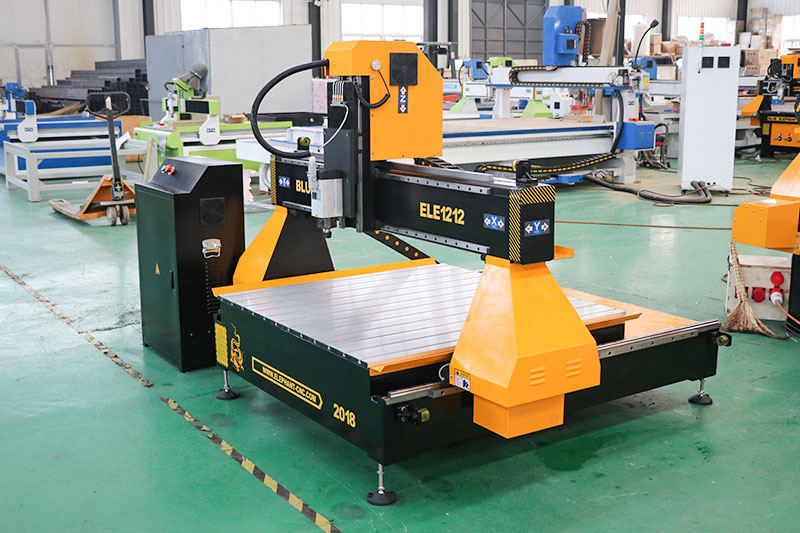

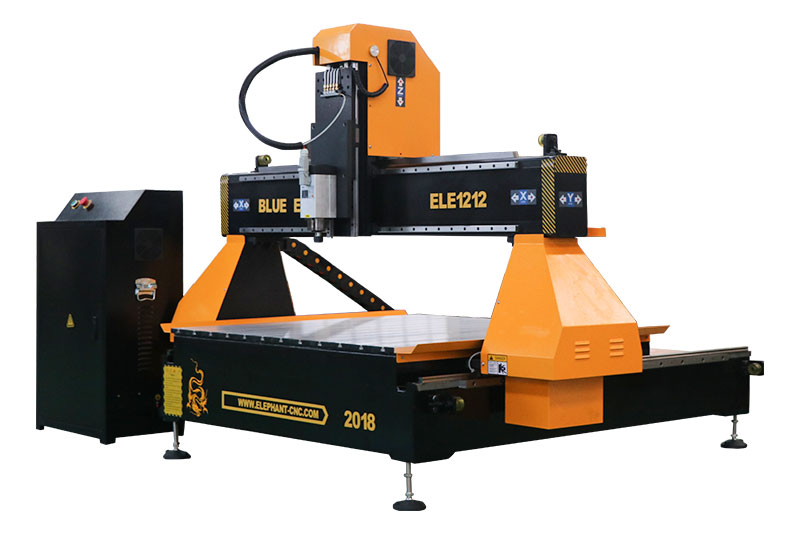

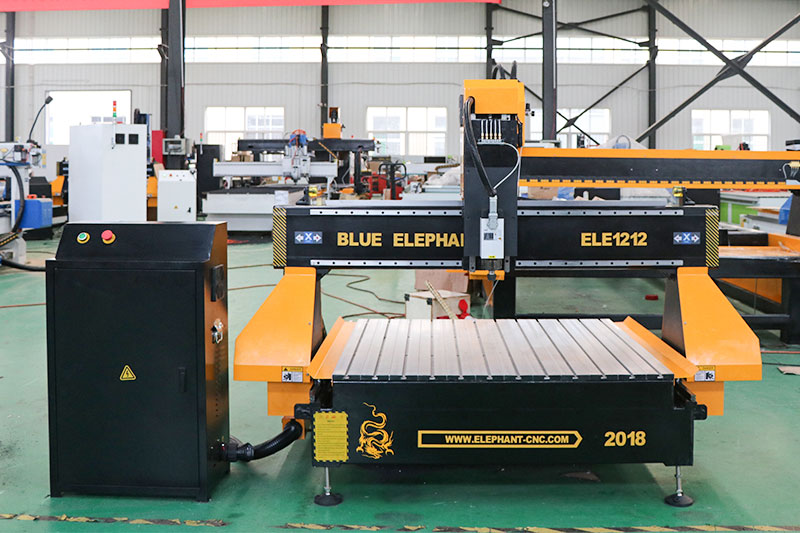

1212 CNC Woodworking Machine
This is one of the best popular desktop small CNC machine for woodworking. It has a worktable size of 4×4 feet. So it is very suitable for home user, small shops, and beginners.
1. Manufactured with 1.5kw HQD air cooling spindle, and the spindle’s speed can reach 18000RPM for per minute.
2. This CNC wood router is equipped with Mach 3 control system, which is easy to learn and use.
3. Equipped with heavy-duty frame, which can promise the machine working more stable and durable.
4. All the specifications can be customized and designed following your requirements.
| Model | ELECNC1212 |
| X,Y axis travel | 1200x1200mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 2.2kw air cooling spindle, ER20 |
| Inverter type | 2.2kw |
| Tool magazine | No tool magazine Option: Linear type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Mach3, option: DSP A11 |
| Driving system | Stepper 450B motor and drivers. option: servo motor |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | T-slot work table with PVC protection |
| Linear guide | #20 Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan helical rack Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.003mm |
| Working accuracy | ±0.07mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ |
| Work table | Vacuum work table |
| Vacuum pump | Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system | 2.2kw, 3kw, etc., including dust hood, pipe, all full set New type 1.5kw |
| Protection device | Light curtain |
| Spindle type | 3kw,5.5kw,9kw ATC spindle,etc |
| rotary | 80mm diameter, 100mm diameter, etc. |
Click for details

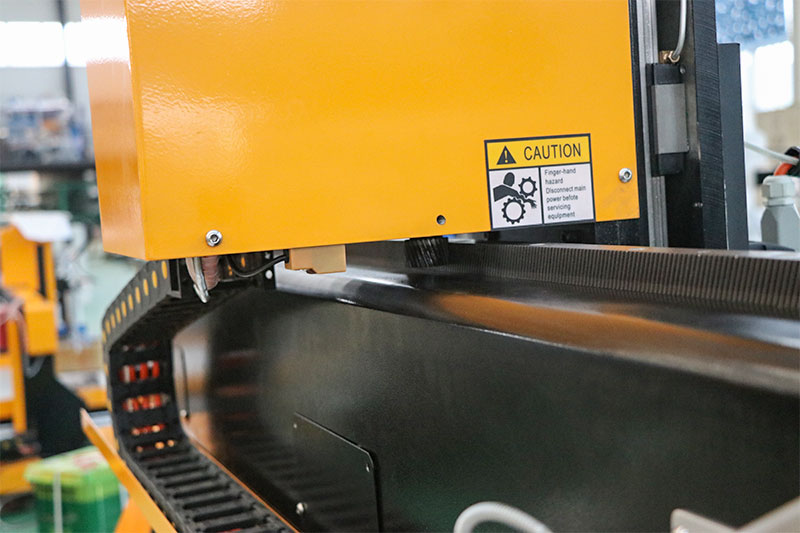

Helical rack

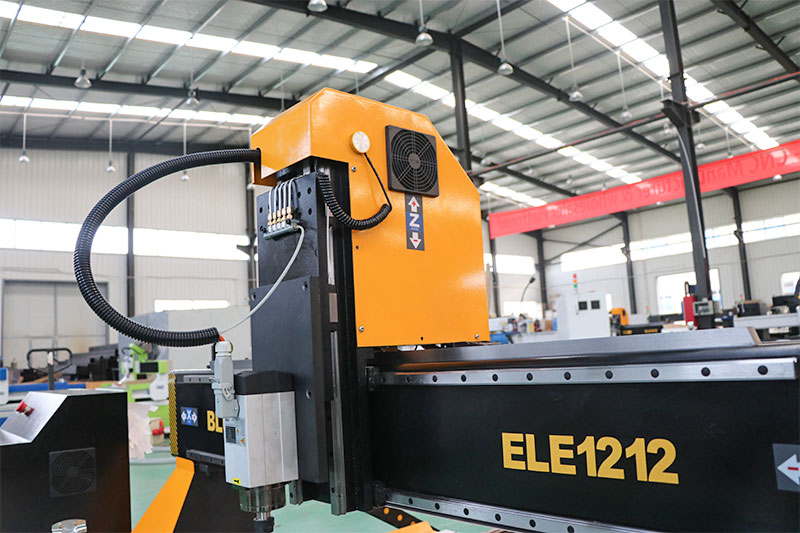

Spindle

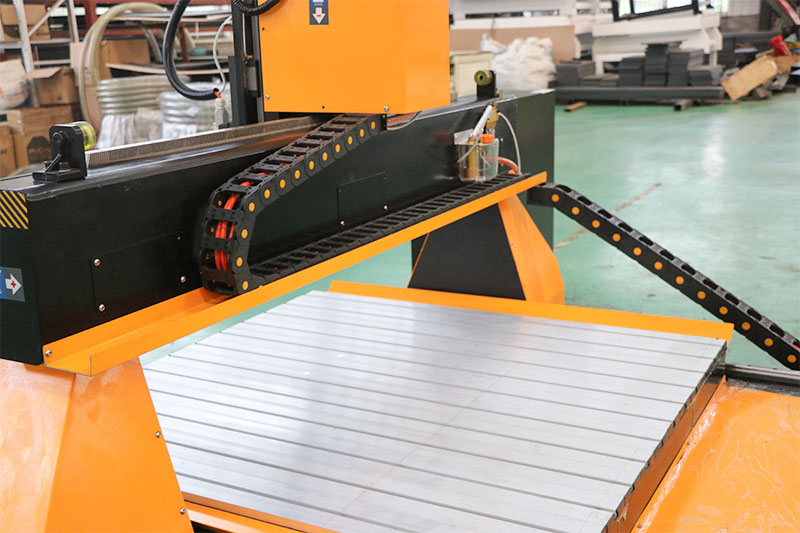

Towline

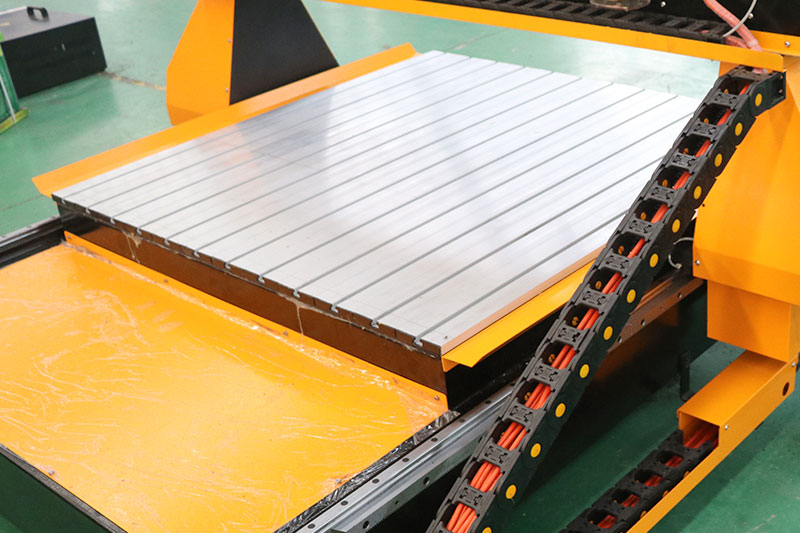

Aluminum T-slot working table
Click for solution
Click for quotation
First full test including tool change... automatic loading and unloading worked perfectly! It’s pretty good. Thanks a lot for your support!
The container has just arrived, time to take it off from container. I'll send you photos when we unload. Thanks a lot we are really happy with the CNC router!
I have been very busy with work and haven't had much spare time, but I did make a couple test cuts and it seems to be working great! Once I can work it into my production I will get you some video to share.
I did level my spoil board today with a 4 wide bit, no lines at all- so everything was in perfect alignment straight from factory-impressive!
