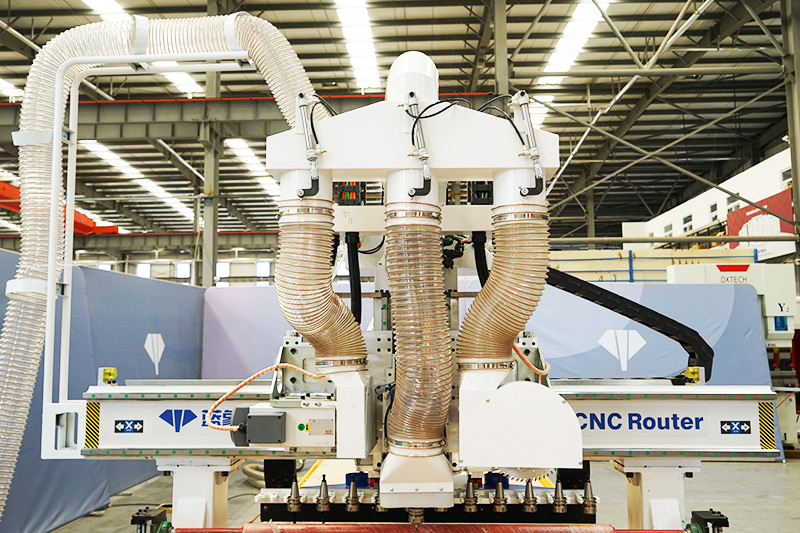

2024 New Launch Universal Aluminum and Wood Cutting Machine for Furniture Making

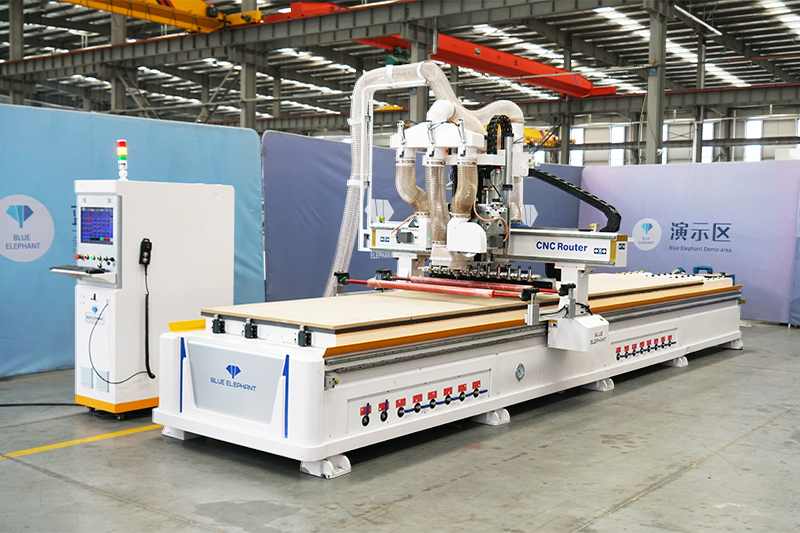

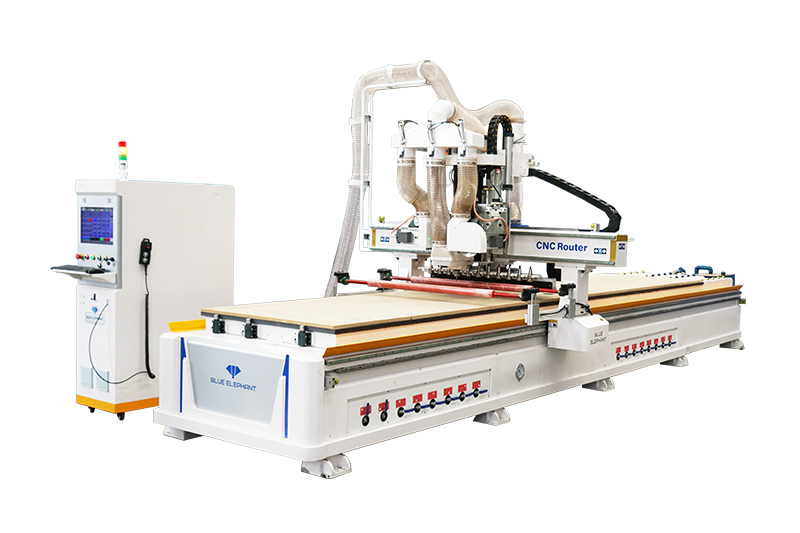

1325 ATC CNC Nesting Machine
Universal aluminum and wood cutting machine can process all kinds of wood plates in the traditional panel furniture industry, but also can process aluminum honeycomb aluminum plate, welding large plate and other aluminum plates in the aluminum furniture industry, can be double-station switching, time-saving and efficient.
1.It can process wood panels, as well as aluminum honeycomb panels, welding panels and other aluminum panels.
2. Double station table structure. The material can be processed alternately by the front and back station, or the whole table can work at the same time.
3.It is equipped with double pressure wheels to avoid board running.
4. The machine also equipped with tabletop dust scraping function. When the plate processing is completed and the plate is removed, the tabletop residue can be vacuumed through the dust scraping structure.
| Universal Aluminum and Wood Cutting Machine | |
| Travel | 1300x6000x200mm |
| Control system | Taiwan SYNTEC controller |

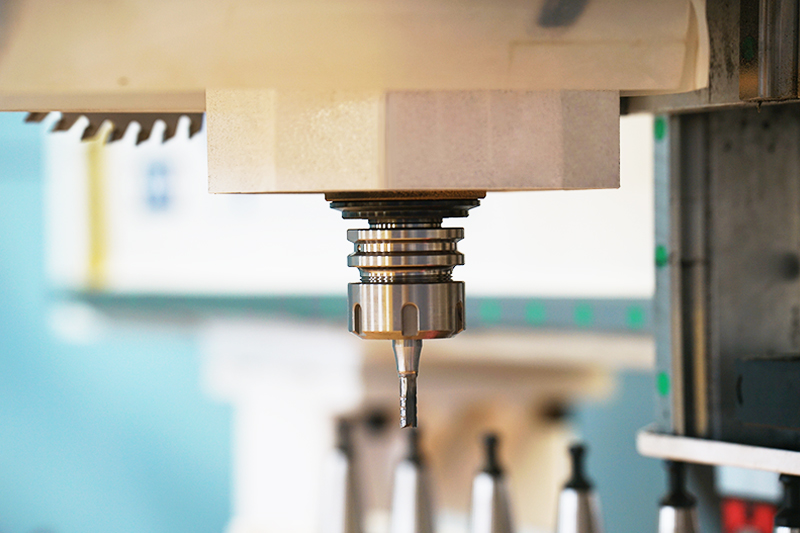

| Tool change spindle type | 9KW air cooling tool change spindle |
| Transverse saw blade spindle | 5.5KW saw blade spindle |
| Longitudinal saw blade spindle | 5.5KW saw blade spindle |
| Servo | Servo motor |
| Reducer | Japan SHIMPO reducer |
| Guide rail | Taiwan guide rail |
| Rack spline | Taiwan rack spline M2 |
| Tool magazine | 12pcs linear tool magazine, under the gantry |
| Lubrication system | 1.5L electric gear pump |
| Work table | Vacuum adsorption work table |
| Vacuum pump | 7.5KW water circulation vacuum pump x2 |
| Vacuum cleaner | 5.5KW double bag vacuum cleaner |
| Working voltage/frequency | 380V/50HZ/3P |
| Total power | About 16KW |
| Machine overall size | Length 7360mmxwidth 2480mmx height 2500mm |
Click for details

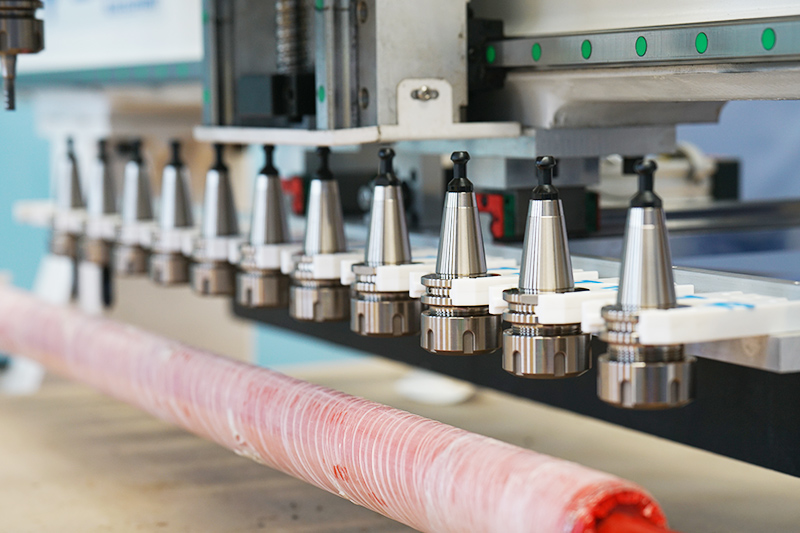

12pcs linear tool magazine, under the gantry
Longitudinal saw blade spindle

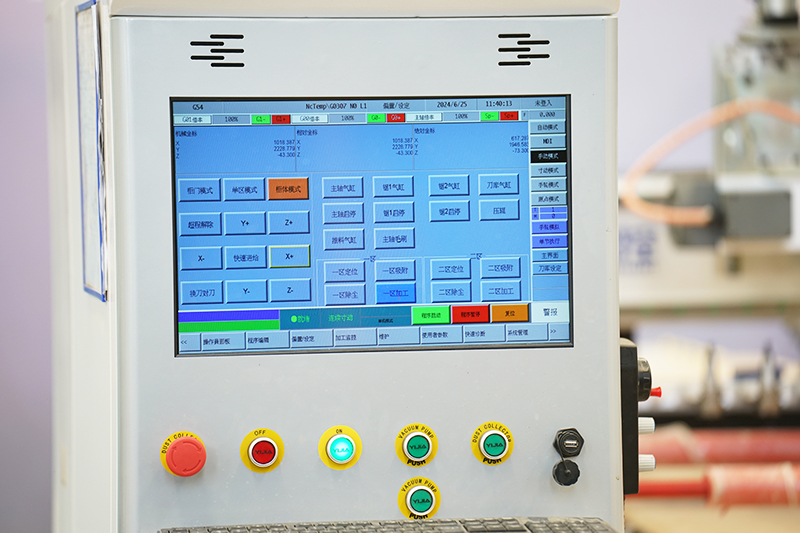

Taiwan SYNTEC controller

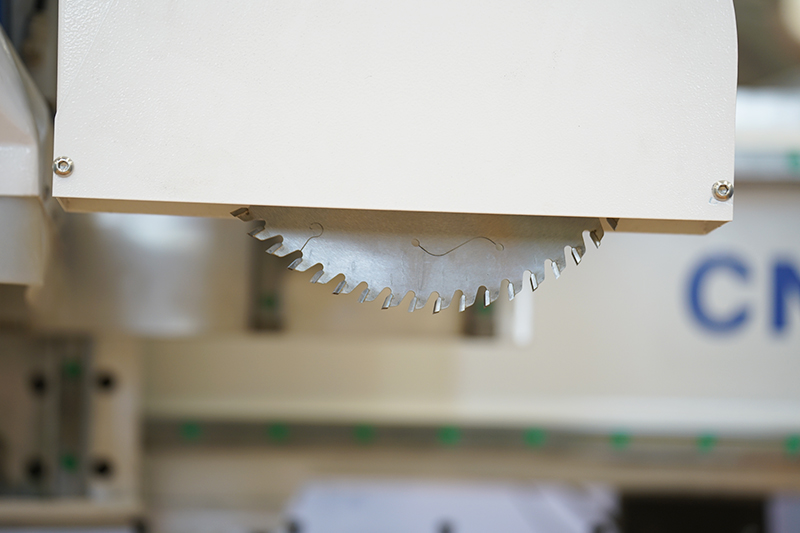

Saw blade
