1328 Linear ATC Nesting CNC Router

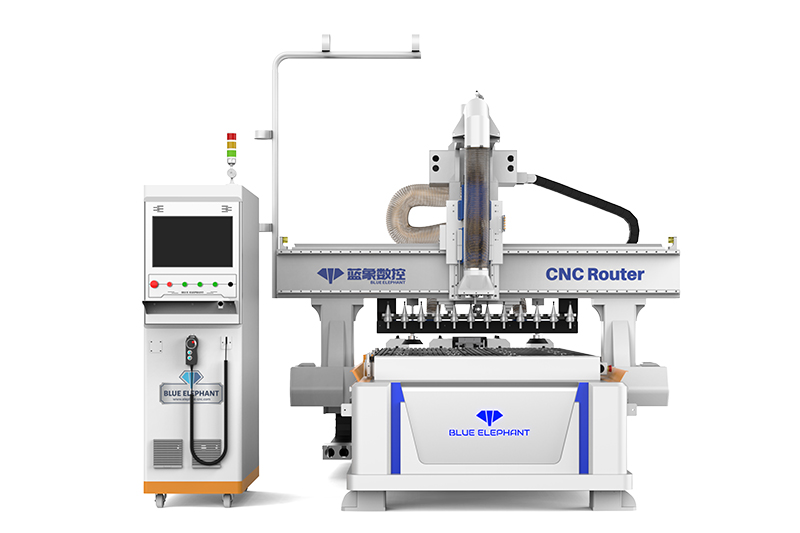

New Look 1328 Nesting CNC Router
This CNC cabinet machine for sale is the most classic and also the entry-level ATC nesting CNC machine for CNC cabinet and furniture making. It can complete all woodworking processes with fast speed and excellent precision, including cutting, engraving, milling, pocketing, vertical drilling, etc. The CNC nesting machine is equipped with a large-power automatic tool change spindle and a linear tool magazine. So it can realize both manufacturing of custom cabinets and wardrobes and engraving of door panels.
1. The 12-tool linear automatic tool magazine reduces tool changing time and improve work efficiency.
2. Its new-type heavy duty machine structure ensures strong loading capacity and stable operation.
3. Optional LNC or SYNTEC control system has strong compatibility and is easy to operate and control. It is also equipped with a handwheel to facilitate the control of movement for the CNC router.
4. The whole vacuum table is divided into 7 zones with each zone controlled by a control valve. The strong adsorption force prevents sliding or moving of the wooden panel during operation.
5. Auxiliary feeding rollers make it more convenient to load wooden boards and reduce human labor.
| Model | ELECNC-1328ATC |
| X,Y axis travel | 1300x2800mm option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan SYNTEC/LNC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor, 4 sets. option: 1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces (X2,Y3) |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump | Water circulation Ring blower Rotary vaneoil-free: Tongyou, Taiwan Eurovac, Germany Becker |
| Dust collect system | 3kw, 5.5kw, 7.5kw, etc, including dust hood, pipe, all full set New type |
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
| Rotary device | Industrial-grade support of rotary device diameter 200mm, 320mm |
Click for details

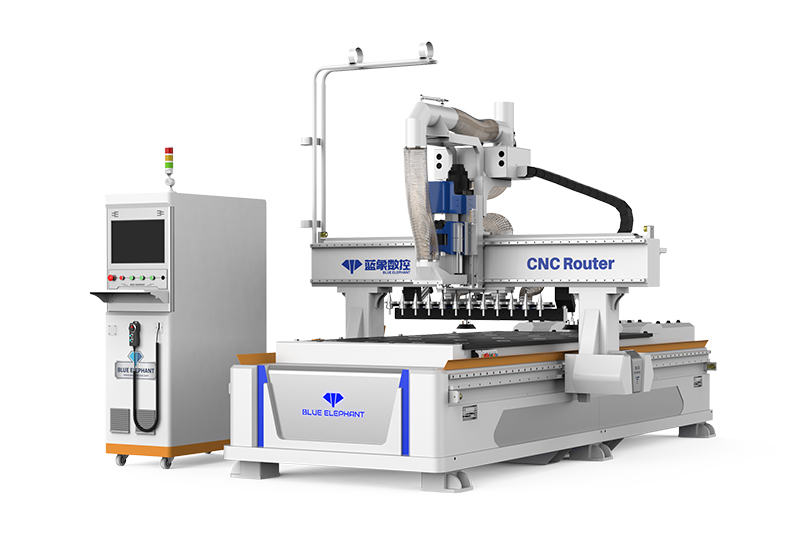

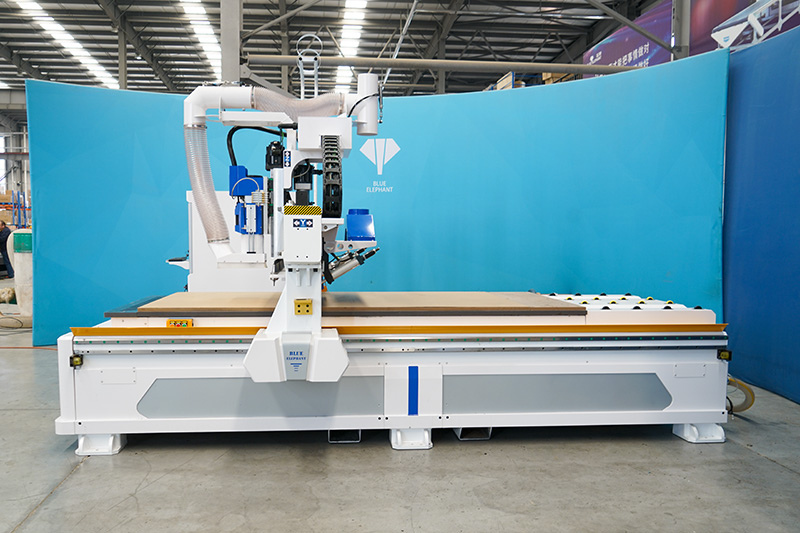

Side view

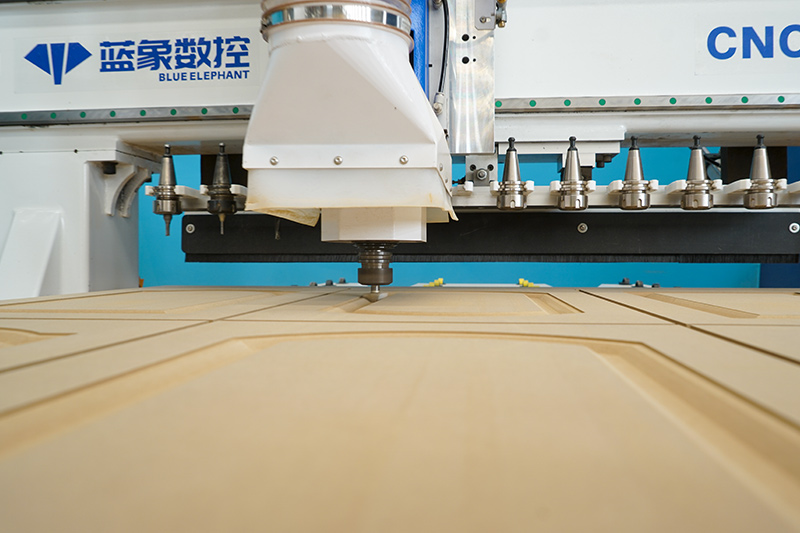

Spindle

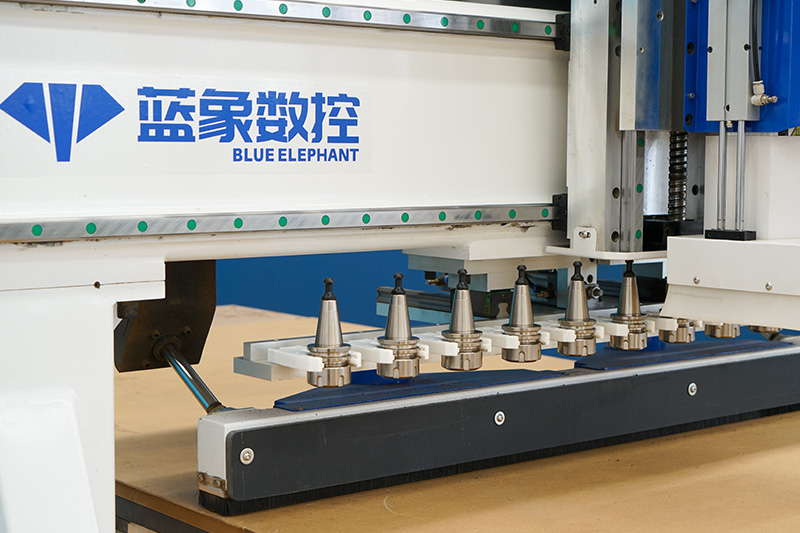

Tool magazine

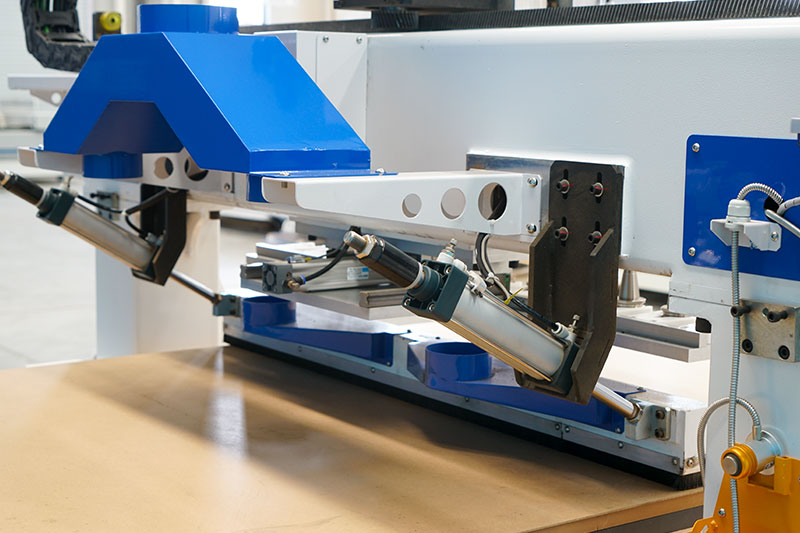

Pushing device
