Ⅰ.What Is An Edge Banding Machine?
Edge banding machine is a kind of equipment used in furniture manufacturing and woodworking, which is specially used for edge banding of board. The purpose of edge banding is to protect the edge of the board from damage from the outside, and to improve the aesthetics and durability of the furniture. Edge banding machine is usually used for edge banding of wood and composite boards (such as particleboard and density board).
The working principle of edge banding machine mainly includes several steps: First, glue coating, the machine will evenly apply hot melt glue on the back of the edge banding. Then press the edge banding, and the edge banding is pressed against the edge of the board.
Then trimming is carried out, the excess edge banding is cut off, and the edge is trimmed to ensure flatness. Finally, scraping and polishing are carried out to further trim the edge banding so that it is smooth and seamlessly connected to the edge of the board.
Ⅱ.Types of Edge Banders
According to the degree of automation and functions, edge banding machines can be divided into manual edge banding machines, semi-automatic edge banding machines and fully automatic edge banding machines. Fully automatic edge banding machines are usually used for large-scale production and are characterized by high efficiency and precision.
1.Manual Edge Banding Machine

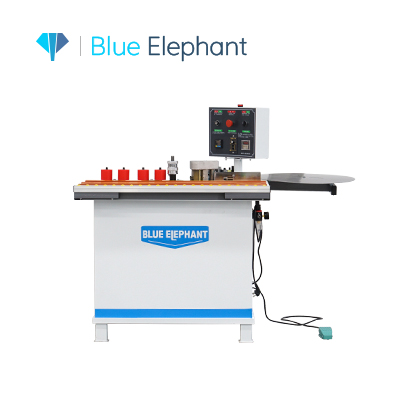

W1 Folding Arm Manual Edge Banding Machine for Curved and Straight Plywood, MDF, Melamine Edge Banding
This manual edge banding machine from Blue Elephant is suitable for edge banding of straight and curved plastic boards, MDF and melamine. It costs between US$600 and US$1,200 and is an entry-level edge banding machine.
| Voltage |
220V, 50hz |
| Heating power |
1.2kw |
| Air pressure |
0.3-0.6mpa |
| Motor Power |
0.18kw |
| Total power |
1.4kw |
| Edge thickness |
0.3-3mm |
| Edge width |
8-50mm |
| Edge banding speed |
0-26cm/s |
| Dimensions |
125*74*98cm |
| Weight |
88kg |
F97 Special-shaped Cabinet Edge Banding Machine Best Edge Banding Machine for Small Shops
This special-shaped edge banding machine is specially designed for small shops. The coating glue adopts a plate-type quick positioning design to achieve ultra-thin edge banding. It is a good choice for small-scale production.
| Voltage |
220V, 50hz |
| Total power |
1.2kw |
| Air pressure |
0.3-0.6Mpa |
| Motor power |
0.18kw |
| Heating power |
1.0kw |
| Edge width |
8-50mm |
| Edge thickness |
0.3-3mm |
| Edge speed |
0-26cm/s |
| Dimensions |
100*75*100cm |
| Weight |
120kg |
2.Semi-automatic Edge Banding Machine
380CK Plywood Semi Automatic Edge Banding Machine Portable Edge Bander for Small Shop
This semi-automatic edge banding machine can realize functions such as conveying, gluing, cutting, punching, trimming, polishing, etc. Compared with manual edge banding machines, it has higher edge banding efficiency and supports customization. It is widely used in edge banding of furniture processing, cabinet processing, interior decoration, etc. The price range is between $5000-10000 .
| Low voltage electrical appliance |
Korea LS Power Generation |
| Temperature control table |
Korea Autonics |
| Travel switch |
South Korea Kaikun |
| Cylinder |
WSN |
| Feed rate |
12-22m/min |
| Sheet thickness |
10-60mm |
| Edge band thickness |
0.4-3mm |
| Working pressure |
0.6Mpa |
3.Fully Automatic Edge Banding Machine
2024 New Design E-70 Fully Automatic Edge Banding Machine for Wood Furniture with Profile Tracking
This fully automatic edge banding machine, with contour tracking technology, rounds the four corners, making them smoother and safer. Automated operation greatly improves edge banding efficiency and saves labor costs. The price is between $15,000-18,000.
| Model |
E-70 |
| Overall size (LxWxH) |
5840x970x1800mm |
| Working pressure |
0.6Mpa |
| Total power |
12kW |
| Feed speed |
15-23m/min |
| Electric lifting |
0.37kW |
| Panel thickness |
10-60mm |
| Panel length |
≥120mm |
| Panel width |
≥80mm |
| Edge band thickness |
0.4-3mm |
As a cost-effective fully automatic edge banding machine, it can complete gluing, banding, edge cutting, rough trimming, fine trimming, tracking, scraping and polishing functions automatically. You can use it for banding various wooden boards, such as density boards, fiber boards, particle boards, solid wood panels, etc.
learn more
2024 New Design E-80 Fully Automatic Edge Banding Machine for Solid Wood Board, Particle Board, and Plywood Edge Banding
This fully automatic edge banding machine is suitable for edge banding of solid wood boards, particle boards, plywood, etc. It can spray release agent on the upper and lower surfaces of the boards to prevent the boards from sticking.The price is between 30,000 and 40,000 USD, which is a high-end product among edge banding machines.
| Model |
E-80 |
| Machine weight |
4550kg |
| Overall size(Length×width×height) |
10580× 960× 1600mm |
| Total power |
25KW |
| Working pressure |
0.7Mpa |
| Feed speed |
Low 18/Mid 23/High 28m/min |
| Panel width |
≥60mm |
| Panel thickness |
9mm-60mm |
| Panel length |
≥ 60mm(No milling)
≥ 150mm(Pre-milling) |
| Min. size |
60×60mm |
| Edge banding thickness |
150×200mm
(Pre-milling) |
E-80 fully automatic edge banding machine, the maximum processing speed can reach 23m/min, tracking chamfering can reach 18m/min, with complete functions, stable system, intelligent operation control and high-speed and efficient production, suitable for mass production of panel furniture. The edge banding effect is beautiful, delicate, smooth, good feel, and the sealing line is straight and smooth. The machine is stable and durable, with complete functions and extremely high cost performance.
learn more

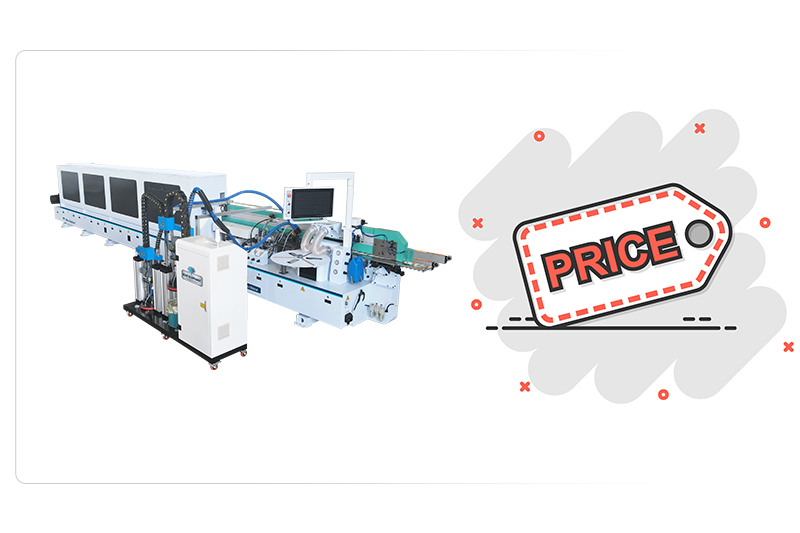

Ⅲ.What Is the Price of Edge Banding Machine?
The price of edge banding machines is affected by many factors, including the type, brand, function, degree of automation, and market demand of the equipment. Generally speaking, edge banding machines can be divided into three categories: manual edge banding machines, semi-automatic edge banding machines, and fully automatic edge banding machines.
The price of manual edge banding machines is usually lower, suitable for small processing plants or occasions with low requirements for edge banding quality. Its price range is roughly from several thousand yuan to 20,000 yuan.
Semi-automatic edge banding machines have more complete functions and relatively moderate prices, generally between 20,000 yuan and 50,000 yuan.
Fully automatic edge banding machines have a higher degree of automation and stronger processing capabilities, suitable for large-scale production lines.
Their prices are usually above 50,000 yuan, and high-end models can even reach hundreds of thousands of yuan.
Ⅳ.Factors affecting the price of edge banding machines
The prices of different types of edge banding machines vary significantly, and the factors that affect their prices are also very complex and diverse. The following is a detailed description of the main influencing factors:
1. Equipment type and degree of automation
The type of edge banding machine is the primary factor affecting the price. According to the degree of automation, edge banding machines can be divided into manual edge banding machines, semi-automatic edge banding machines and fully automatic edge banding machines.
The manual edge banding machine is simple to operate, has relatively basic functions, and is relatively cheap. It is suitable for small-scale production or manual production. Although the semi-automatic edge banding machine adds some automation functions, it still requires manual operation, so the price is between manual and fully automatic.
Fully automatic edge banding machines have highly automated production capabilities and can automatically complete multiple operations such as tape feeding, gluing, edge banding, and edge trimming, greatly improving production efficiency. They are suitable for large-scale industrial production and are naturally the most expensive.
2. Functional configuration and process complexity
The functional configuration of the edge banding machine is another key factor affecting the price. Basic edge banding machines usually only have basic edge banding functions, while high-end edge banding machines may integrate multiple processes such as pre-milling, rough trimming, fine trimming, edge scraping, polishing, and grooving.
The addition of these additional features not only improves the technical content of the device, but also increases manufacturing costs. Therefore, the richer the functional configuration and the higher the complexity of the process, the more expensive the equipment will be.
In addition, some high-end edge banding machines are also equipped with CNC systems and human-machine interfaces. The introduction of these advanced technologies will also significantly increase the price of the equipment.
3. Brand influence and market positioning
Brand is another important factor affecting the price of edge banding machines. Well-known brands usually represent higher quality, better after-sales service and longer service life, so the price is relatively higher. A brand's market positioning will also directly affect its product pricing strategy.
Due to their advantages in research and development, technological innovation, quality control, etc., internationally renowned brands often dominate the high-end market, and their product prices are higher than those of ordinary brands.
4. Origin and manufacturing cost
The origin of edge banding machines is also one of the important factors affecting the price. Generally speaking, imported equipment is usually more expensive due to tariffs, transportation costs and exchange rate fluctuations. However, imported equipment often has advantages in technological advancement, material selection and manufacturing process, so it is still competitive in the high-end market.
Relatively speaking, domestic edge banding machines have certain advantages in price, especially in the mid- and low-end markets. However, there may be certain differences in the quality and performance of domestic equipment, and consumers need to consider them comprehensively when choosing.
5. Materials and manufacturing process
The manufacturing materials and processes of edge banding machines directly affect their costs and prices. High-quality edge banding machines usually use high-quality metal materials and components to ensure the durability and stability of the equipment. The selection of these materials increases the manufacturing cost, which in turn affects the final price.
In addition, precision manufacturing process is also an important factor in determining the price of edge banding machines. Edge banding machines manufactured using advanced processes such as high-precision processing technology and laser cutting technology can maintain excellent performance and precision in long-term use, and the price is therefore higher.
6. Market demand and competitive environment
Market demand and competitive environment are important factors that dynamically affect the price of edge banding machines. In the case of strong market demand, especially with the development of the furniture industry, the demand for efficient and accurate edge banding equipment increases, and the price of edge banding machines may rise accordingly.
On the other hand, market competition will also affect the price. If there are multiple brands and models competing in the market, the price may drop due to competitive pressure. However, in the case of high technical barriers or market monopoly, the price may remain at a high level.
7. After-sales service and warranty policy
After-sales service and warranty policy are another factor affecting the price of edge banding machines. The price of edge banding machines that provide comprehensive after-sales services (such as installation, commissioning, training, maintenance, etc.) usually includes the cost of these services. The length of the equipment's warranty period will also affect the price.
The longer the warranty period, the better the quality and stability of the equipment. The manufacturer has greater confidence in the product, so the price is correspondingly higher. In addition, the response speed and coverage of after-sales service are also important factors for users when considering equipment. High-quality after-sales service usually means higher maintenance costs, which pushes up the price of equipment.
8. Technological innovation and environmental protection requirements
With the continuous advancement of technology, the functions and performance of edge banding machines are also constantly improving. The introduction of new technologies, such as CNC technology, automated control systems, and high-efficiency gluing technology, not only improves the production efficiency and precision of the equipment, but also increases its added value and price.
At the same time, environmental protection requirements are also an important factor affecting the price of edge banding machines. With the increasingly stringent environmental regulations, low-energy consumption and low-pollution edge banding machines have gradually become the mainstream of the market. Such equipment often uses more environmentally friendly materials and technologies, with higher manufacturing costs and correspondingly higher prices.
9. Customization demand
Customization demand is a special factor that affects the price of edge banding machines. For some special production requirements, such as specific edge banding materials, special edge banding shapes or sizes, standard equipment may not be able to meet them, and customized equipment is required. Customized equipment usually requires additional design, development and manufacturing costs, so the price will be higher than standard equipment.
In addition, customized services also include special functional configurations and appearance designs of the equipment, which will increase the complexity and cost of the equipment, thereby increasing the price.
Ⅴ.Tips for Buying Edge Banding Machines
1.Identify Actual Needs
Determine your production scale, edge banding material type, board thickness, etc. After understanding your specific needs, you can choose the appropriate edge banding machine type (such as manual, semi-automatic or fully automatic). After that, determine your actual budget and purchase the appropriate machine within the budget.
2.Choose A Good Brand
Big brands usually have better quality assurance and more complete after-sales service. You can learn about the reputation of different brands through market research, online reviews, industry forums, etc.In addition, you can learn about the actual use effect of the machine through actual feedback from other users.
Blue Elephant is a very good brand that has been engaged in the CNC industry for more than ten years. All of its machines are developed by itself and it provides professional after-sales service.
3.Conduct Field Trips
Visiting the manufacturer or dealer on site can give you an intuitive understanding of the equipment's production process, material quality, and factory management level. Ask the manufacturer or dealer to demonstrate the edge banding machine and personally experience the machine's ease of operation and performance stability.

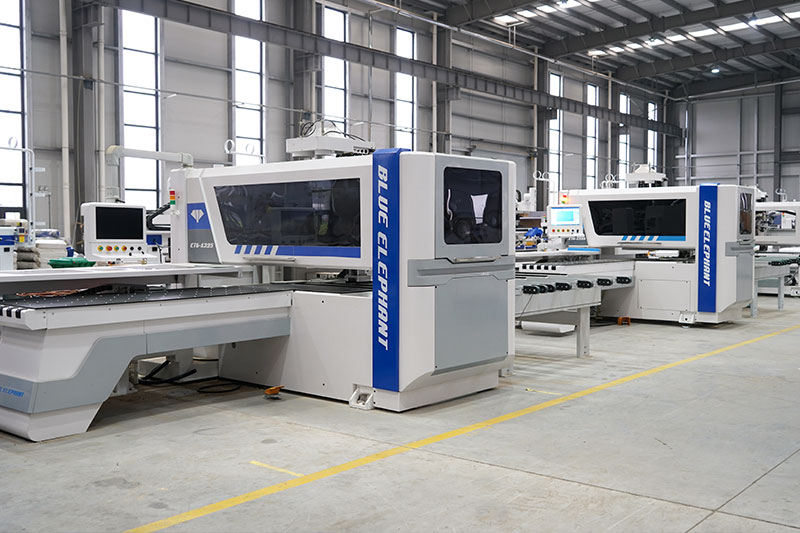

Blue Elephant has three factories, covering an area of 30,000+ square meters, with an annual production capacity of 10,000 machines.
4.Conduct Prototype Testing
Ask the manufacturer to provide prototype testing services, use your own materials for trial sealing, observe the edge sealing quality and effect, and ensure that the equipment can meet actual production requirements. Pay attention to every detail of the equipment, such as the flatness of the edge sealing, bonding strength, smoothness of operation, etc.
5.Understand After-sales Service
Understand the equipment's warranty policy, after-sales service response time, whether spare parts are provided, etc. A good after-sales service system can greatly reduce the losses caused by equipment downtime. Ask the manufacturer whether it provides operation training to ensure that employees can quickly master the key points of equipment operation.
Blue Elephant provides comprehensive after-sales services, online technical guidance, and can also arrange professional technical after-sales personnel to provide technical guidance at the customer's factory.
6.Price Negotiation
Find several suppliers to compare prices, and don't rush to make a decision. You can negotiate for a better price or additional services.In addition to the purchase price of the equipment, you should also consider related costs such as transportation, installation, maintenance, and operator training, and comprehensively evaluate the total cost.
7.Pay Attention to Second-hand Machines
If your budget is limited, you can consider buying a second-hand edge banding machine. But you should carefully check the age of the equipment, maintenance records, and whether there are hidden faults.It is best to ask professionals to evaluate the second-hand machine to ensure its cost-effectiveness and service life.
8.Sign A Detailed Contract
When signing a purchase contract, make sure all terms are clear, including equipment specifications, prices, delivery time, installation and commissioning, warranty services, etc. Agree on a reasonable payment method and payment time to ensure transaction security.
9.Pay attention to the latest technology and trends
Pay attention to the latest technological developments in the edge banding machine industry and choose new equipment that can improve production efficiency and reduce energy consumption.When purchasing equipment, you should not only consider current needs, but also the possibility of future technological upgrades and production expansion.
Blue Elephant has the latest CNC technology, always insists on research and development innovation, continuously launches the latest products, and has received unanimous praise from customers.
Ⅵ.Conclusion
The price of edge banding machines is affected by many factors, including equipment type, functional configuration, brand influence, origin and manufacturing cost. When choosing an edge banding machine, consumers should consider these factors comprehensively based on their actual needs and budget and choose the most cost-effective edge banding machine. If you have any questions, please feel free to contact us:
