Custom 2030 Digital Wood Cutting Machine 4 Axis ATC CNC Router with Rotary Device

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-2030
Category : Digital Cutting Machine
Price Range : $12000 to $15000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

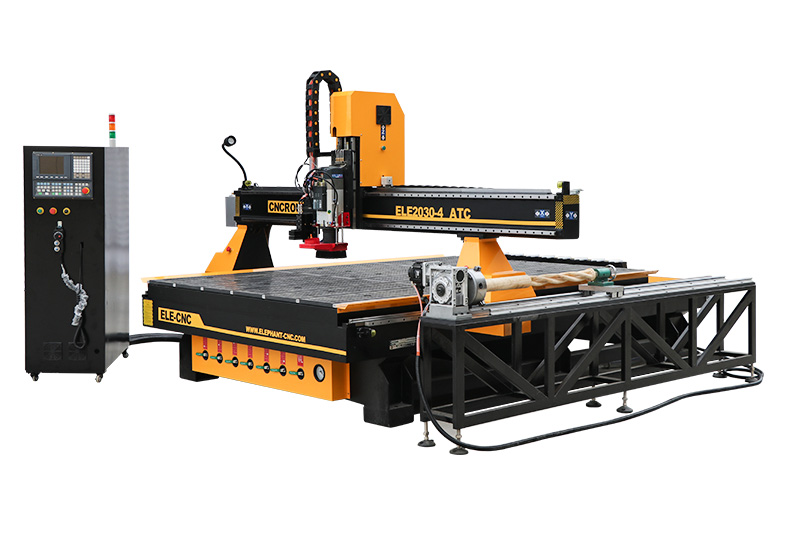

The 2030 4-axis CNC digital wood cutting machine uses sharp blade cutting soft materials, such as cotton material, leather, carpet, carton, PVC, cardboard, rubber, etc. It has less cutting loss than CNC router and has no heat releasing. This CNC digital cutter is also equipped with an ATC spindle and rotary device for 3d wood carving and cutting.

Features

1. New type portable Rotary device, saves working space and easy to use.
2. Vacuum CNC table for quick fixing of MDF plate.
3. Helical rack gear transmission, which can ensure faster speed, higher efficiency, stronger power, and it makes the machine more stable.
4. ATC Spindle and auto tool changer for quick tool changing, save labor and time cost.

Parameters

Model	ELECNC2030ATC-R
X,Y axis travel	2000x3000mm, option: 13002500mm, 15003000mm, 2100*4000mm, etc.
Z axis travel	200mm, option: 300mm, 400mm, 500mm, 600mm, etc.
Spindle type	9kw ATC air cooling spindle, ISO30, ER32
Inverter type	11kw
Drilling bank	Optional
Tool magazine	Linear type auto tool changer Option: Carousel type auto tool changer
Tool holder with collet	ISO30, ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec controller, option: Taiwan LNC
Driving system	850w Japan Yaskawa AC servo driver and 850w AC servo motor,4 sets. option: 1000w Taiwan Syntec servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 7 pieces (X3,Y4)
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool Calibration	Automatic tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible Software	Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command Language	G Code & M Code
Traveling speed	65m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working Accuracy	±0.03mm
Working air pressure	0.6MPa
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Optional Items

Vacuum pump	Water circulation Ring blower Rotary vane, oil-free: Tongyou, Taiwan Eurovac, Germany Becker
Dust collect system	3kw, 5.5kw, 7.5kw, etc., including dust hood, pipe, all full set New type
Air Compressor	Piston air compressor, screw air compressor
Protection device	Light curtain
Spindle type	9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc.

Click for details

Frequent Asked Questions

Which type of vacuum pump should be used for cutting work?

If you use water circulation vacuum pump, you should use 2 sets of 7.5kw vacuum pump.

Can I have both of linear and carousel tool changers for this machine?

Yes, it's ok to have both types of carousel tool changers.

What's the use of positioning cylinder?

For sheets alignment.

Digital Cutting Machine Details

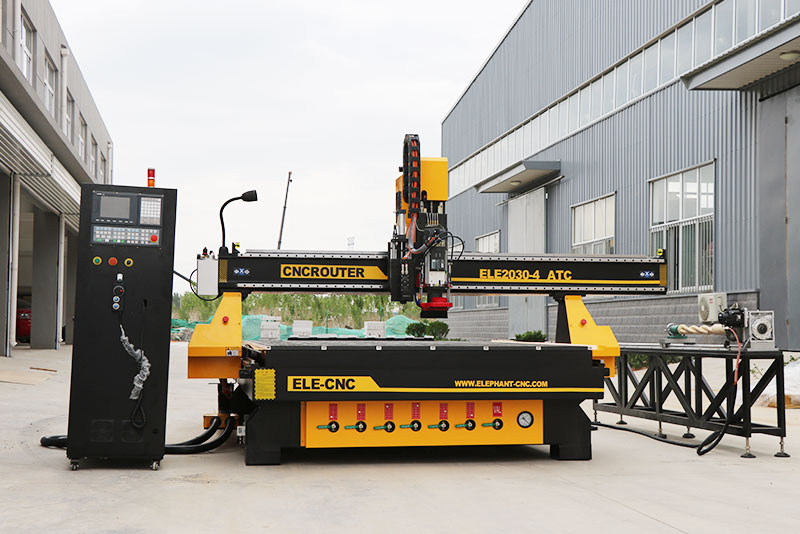

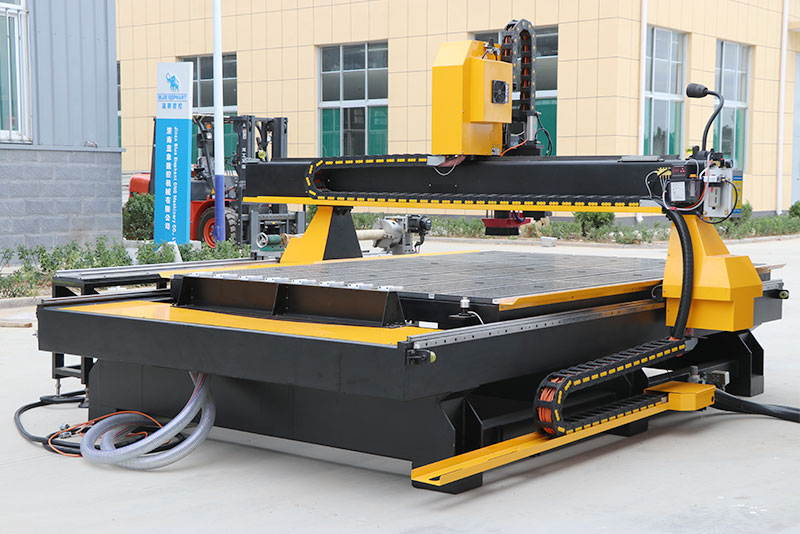

Side view

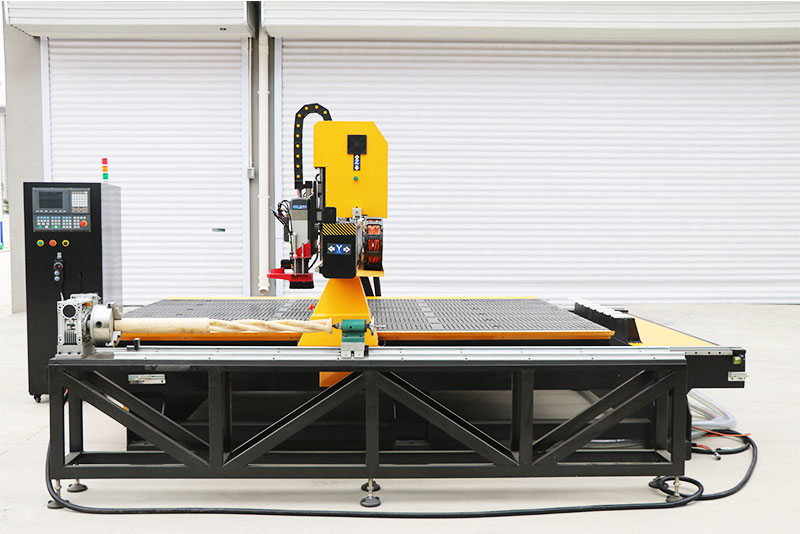

Rotary axis

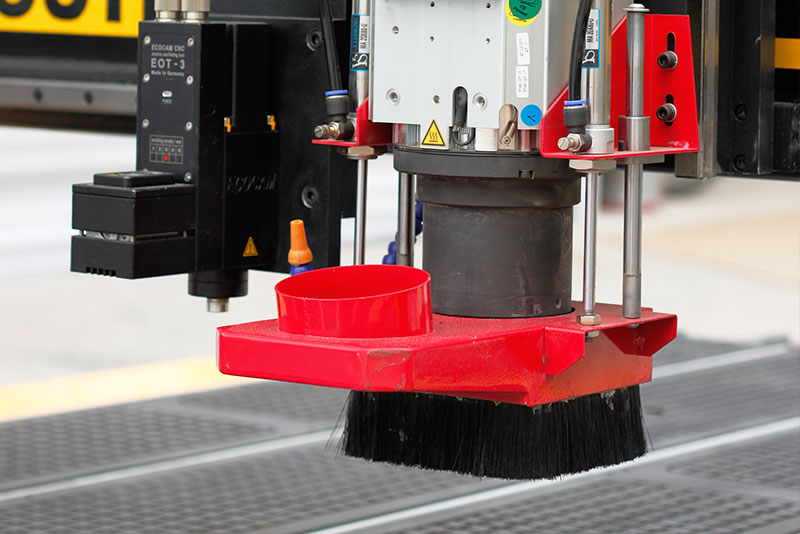

Spindle

Lubrication

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

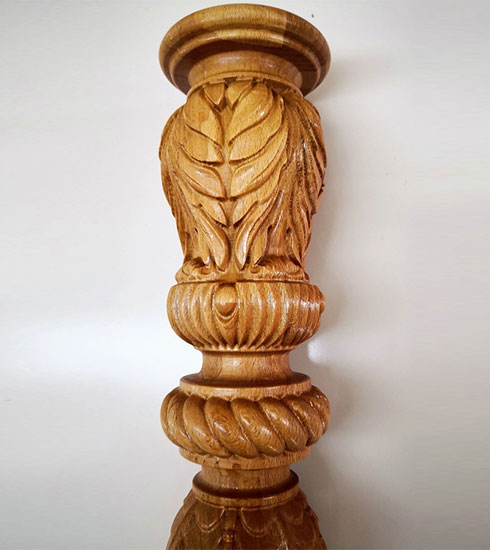

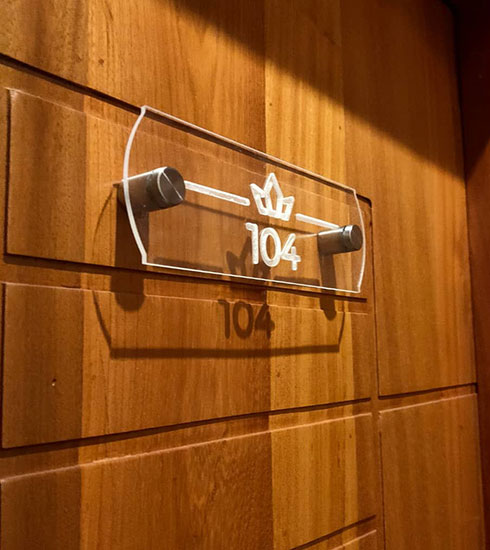

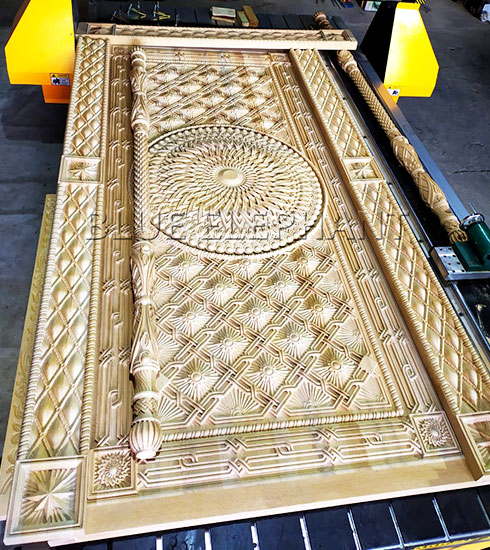

Samples
