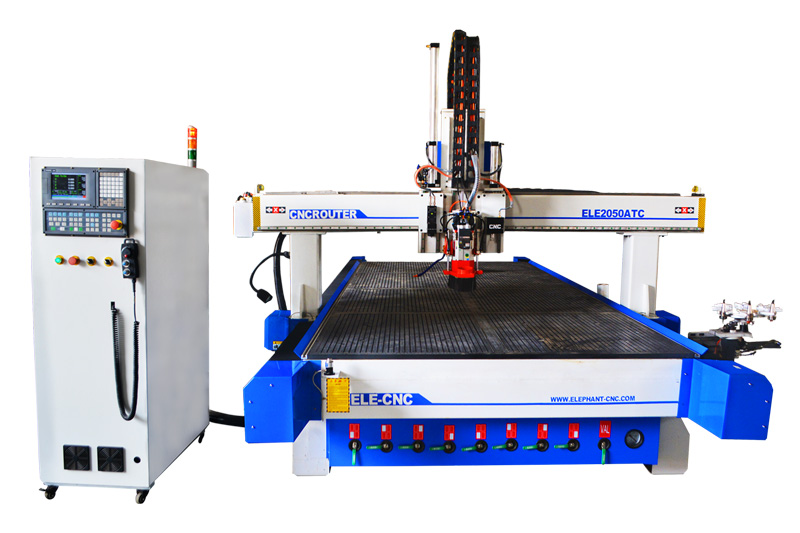

Large Commercial Digital Die Cutting Machine for CNC Knife Cutting Paper, Fabric, Craft

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-2050
Category : Digital Cutting Machine
Price Range : $13000 to $15000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This 2050 commercial digital die cutting machine takes SYNTEC controller as a control system with an operation handler for easy use. It is an ideal machine for cutting leather, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated box, fom, leather strip, etc.

Features

1. Oscillating Knife Cutter adopted the famous brand CNC Part: Italy HSD spindle, Japan YASKAWA servo motor, etc.
2. ELECNC-2050 Oscillating Knife cuter is designed with a larger working size, which can greatly improve working efficiency.
3. Dust covers on rail guides and, keep transmission parts cleaner and long working life.
4. All the working area and specifications can be customized according to your requests.

Parameters

Model	ELECNC2050ATC
X,Y axis travel	2000x5000mm, option: 13002500mm; 15003000mm; 2000*6000mm, etc.
Z axis travel	400mm, option: 200mm, 300mm, etc.
Spindle type	9kw ATC air cooling spindle, ER32
Inverter type	11kw
Tool magazine	Carousal tool magazine Option: Linear type auto tool changer;
Tool holder with collet	ER32 collet: φ4, φ6, 1/8, 1/2
Control system	Taiwan Syntec controller, option: Taiwan LNC
Driving system	850w Japan Yaskawa AC servo motor and 1000w AC servo drivers, 5 sets. option: 850w Japan Yaskawa servo
Reducer	Japan SHIMPO reducer
Machine structure	Heavy duty body with quenching treatment
Work table	Aluminum T-slot & vacuum work table
Positioning cylinder	Optional: 7 pieces (X2,Y3)
Linear guide	Taiwan Linear guide
Transmission	X, Y axis: Taiwan/Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw
Lubrication system	1.5L automatic lubrication system
Tool calibration	Manual tool sensor calibration
Cables	Germany Igus cables with CE, cUL certificate
Compatible software	Artcam, Alphcam, Type 3, Ucancam, Aspire,etc
Command language	G Code & M Code
Traveling speed	40m/min
Working speed	0-25m/min
Re-positioning accuracy	±0.03mm
System resolution	±0.0025mm
Working accuracy	±0.07mm
Working voltage	220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ

Click for details

Frequent Asked Questions

What software does this CNC machine use?

The machine itself comes with the Artcam software, and you can also use your own software.

What kind of maintenance is required for this CNC router?

After using this machine, please clean it in time, especially the helical rack gear and square linear guide. Please remember to lubricate the linear guide.

What is the control system? How to operate it?

It is use Taiwan syntec control system with screen and MPG handle, which is very easy to operate. We also have manual and videos to teach you step by step.

Digital Cutting Machine Details

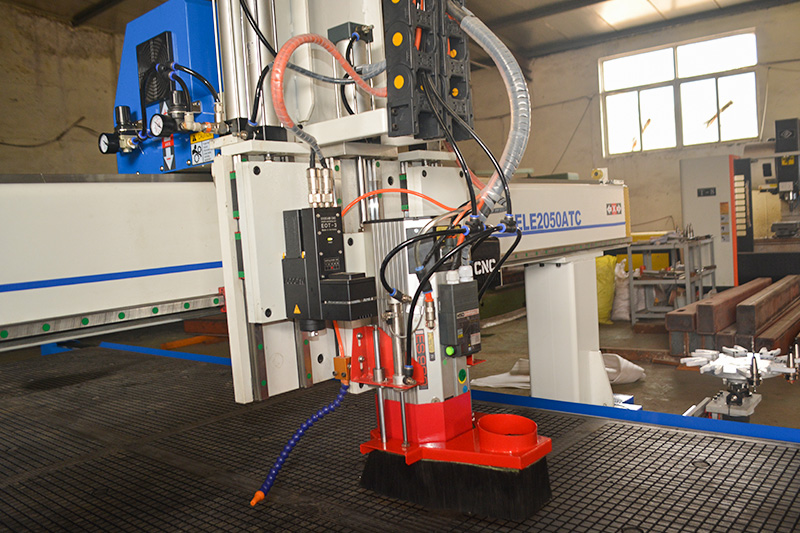

Spindle

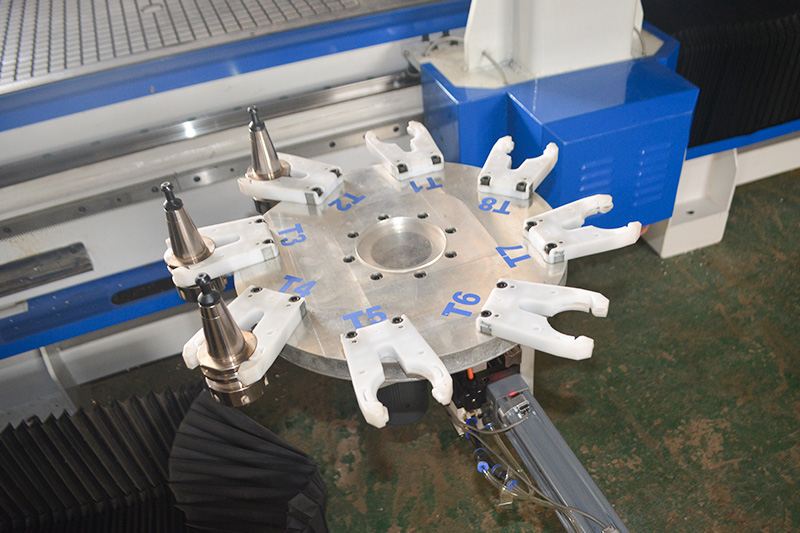

Tool magazine

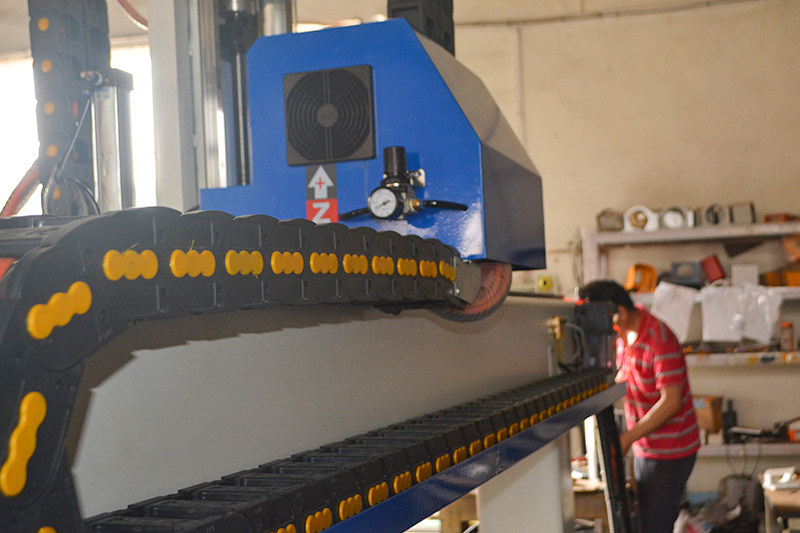

Towline

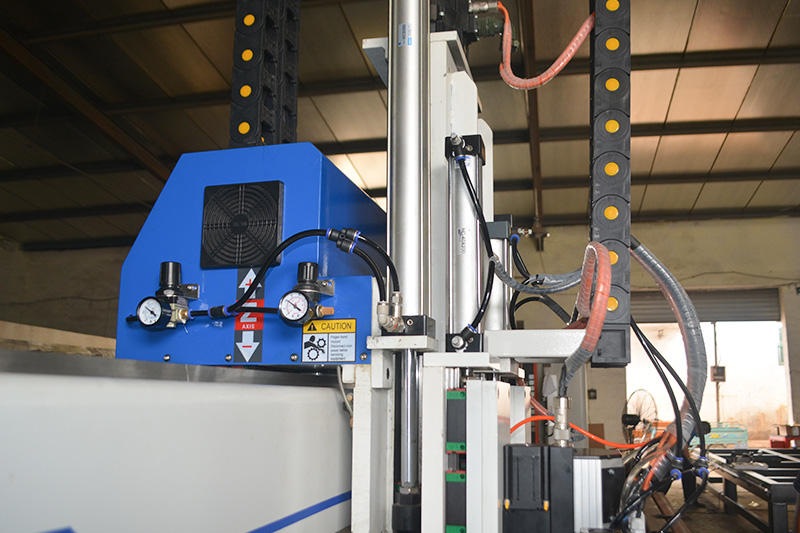

Z axis motor

Application

The CNC router machine with an oscillating cutter is good at cutting wood, acrylic, plastic and many other flexible non-metal materials. It is perfectly suitable for precise cutting of sealing material, cork, leather and foamed material. You can process sealing material, carbon fibre preggers, corrugated board, leather and cork, tissue and foil, expanded plastic slabs, carpets.

Samples

Click for solution

Production Facility

Quality Control & Testing

Click for quotation
