5＋1 CNC Bridge Saw with Italy ESA System
5 Axis Bridge Saw for Stone Cutting

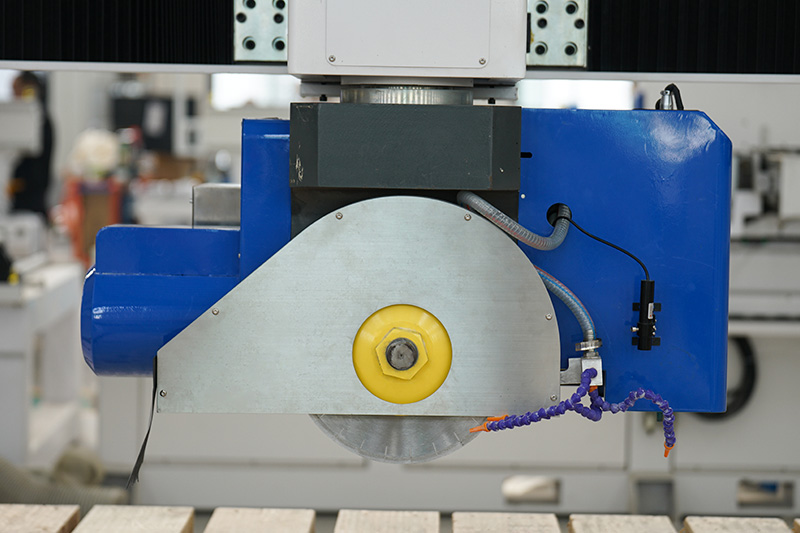

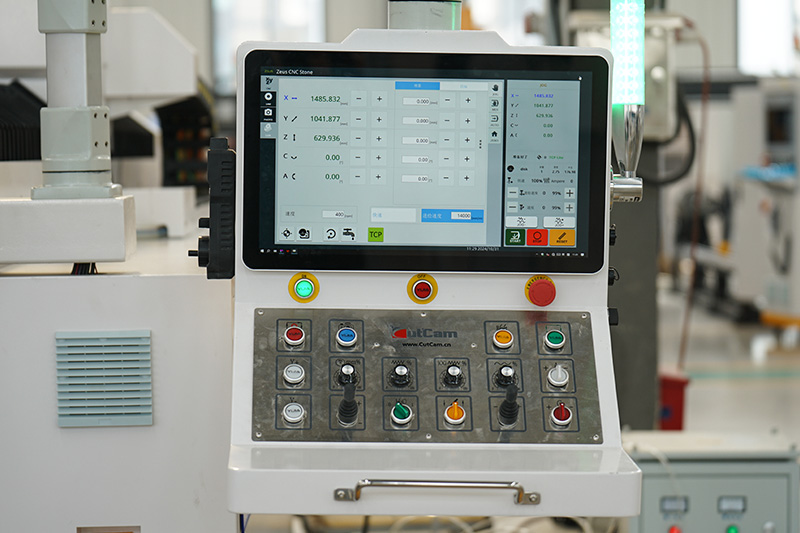

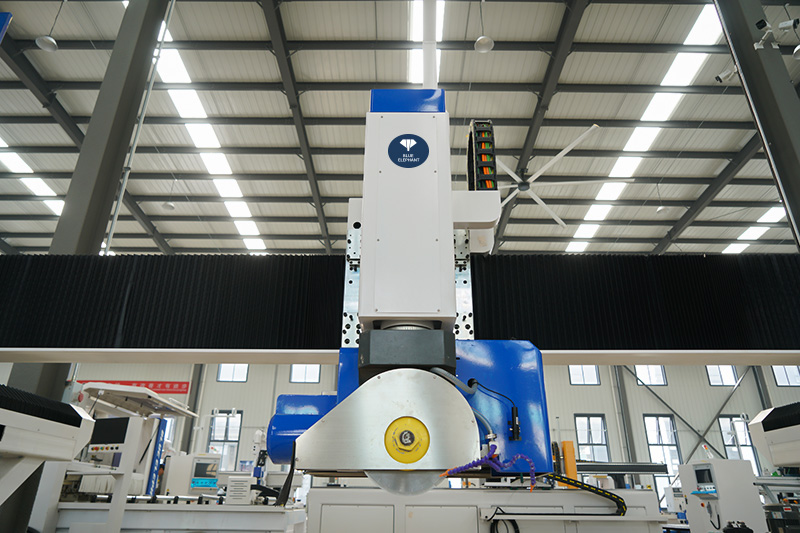

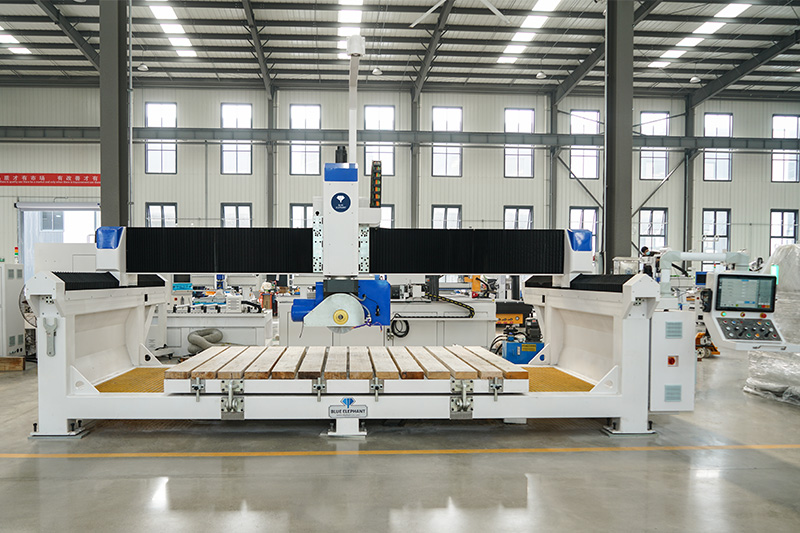

The latest 5+1 CNC bridge saw machine can cut and trim granite, marble, artificial stone, slate and other stones at any angle and shape. The key parts of the machine are imported high-quality accessories, and the system adopts the Italian ESA system, which has fast and stable operation. The corresponding servo and touch display are also the same brand as ESA. The system can also be customized with Blue Elephant customized system.
1. The A axis can automatically rotate 0-90°, while the C axis can rotate up to 360°.
2. The slab can be positioned by taking photos. In addition, this machine can automatically plan the cutting path directly from the generated map, greatly improving processing efficiency.
3. The overturned worktable is adopted, which has large overturning weight redundancy, up to 85°.

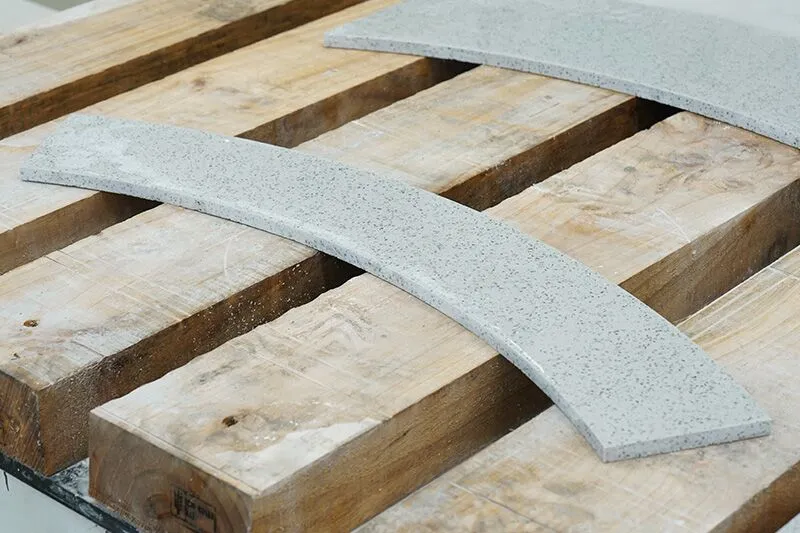

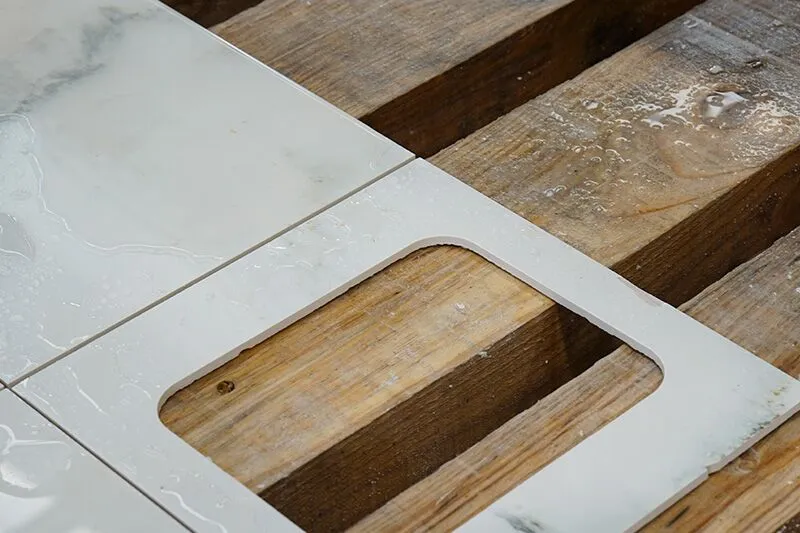

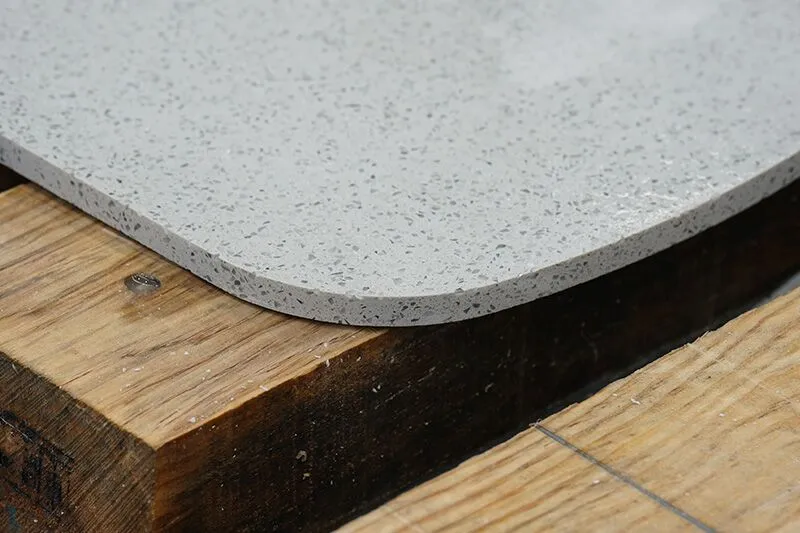

4. The Italian servo motor is used to complete circular cutting, square cutting, fan cutting, oval cutting, 45° bevel cutting, drilling, outer edge polishing, etc.
| 5＋1 Stone CNC Bridge Saw Machine | ||
| Working travel | X, Y, and Z | 3200*2000*350mm |
| C axis | ±360° | |
| A axis | 0-90° | |
| Moving speed | X axis | 30m/min |
| Y axis | 30m/min | |
| Z axis | 15m/min | |
| Servo motor | Italian Servo | |
| Guide rail | X, Y，and Z: # 30 (Taiwan Brand) | |
| Rack | X、Y | 2M |
| Worktable | Structure | Square timber |
| Worktable size | 3200×2000mm | |
| Turning angle | 0-85° | |
| Max. weight for turning | 800KG | |
| Saw | Dimension | 350-450mm |
| Max. cutting thickness | 100mm | |
| Ball screw | Z | 3210 |
| Reducer | X/Y: Japan SHIMPO | |
| Saw motor | 22KW permanent-magnet saw blade motor rated: 3000r/min, maximum: 4000r/min |
|
| Saw Motor Driver | Motor comes with | |
| Control system | Italy ESA System | |
| Low-voltage electronics | French SCHNEIDER | |
| Working air pressure | 0.6-0.8 Mpa | |
| Voltage | 380V/3P/50HZ | |
| Machine size | 5.85×4.5×3.3m(With chassis) | |
| Machine weight | 5.5ton | |
| Spindle | Shengfeng 5.5KW water-cooling spindle(Cannot switch to other brands due to size) | |
| Water Cooler | CW-5000TI Single 220V 50/60HZ Universal | |
| Inverter | Fuling 5.5KW | |
Click for details

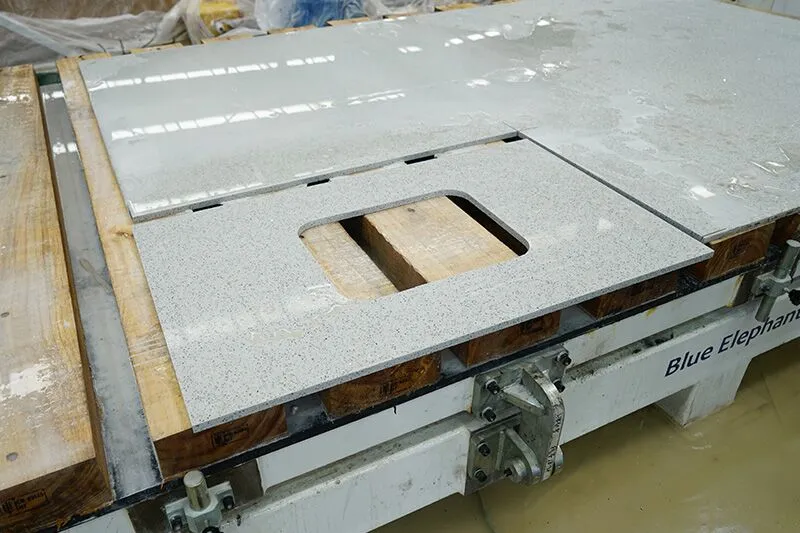

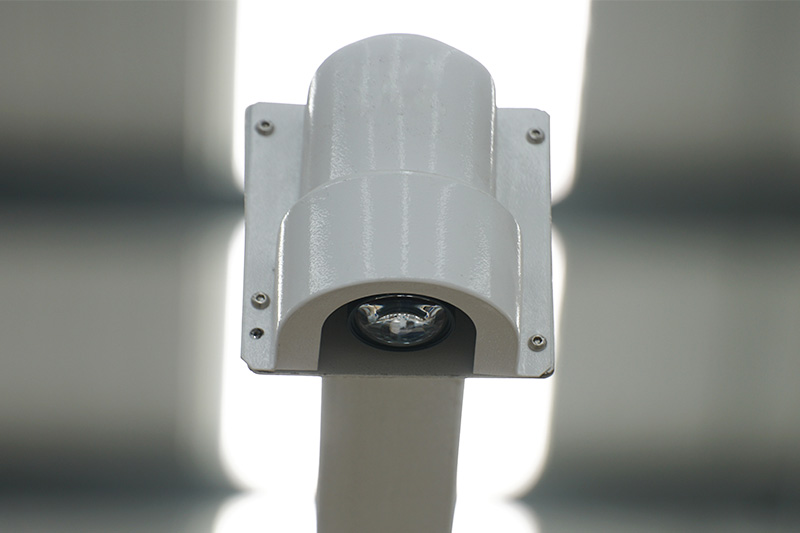

This machine has infrared head, table flip function, saw blade diameter measurement, vacuum material transfer suction cup, phototypesetting positioning and other functions. The workpiece thickness measurement function can be customized according to your needs. It should be noted that the cutting thickness of the saw blade cannot be customized to be greater than 100mm. The voltage cannot be single-phase electricity.
The machine can be customized in the following three stroke sizes: 3400*2000, 3600*2000, 3800*2000.
