5 Axis Granite CNC Bridge Saw
Bridge Saw Machine AI Introduction

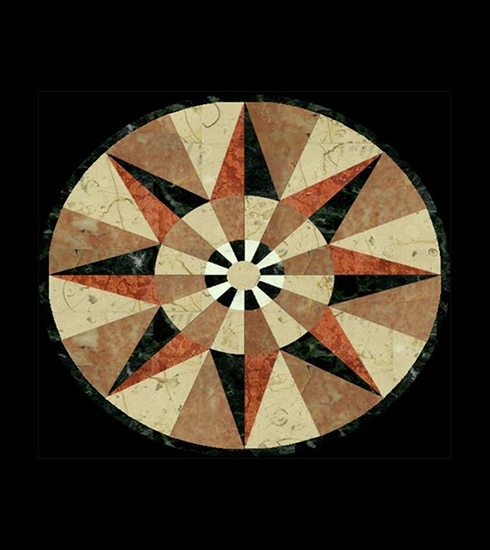

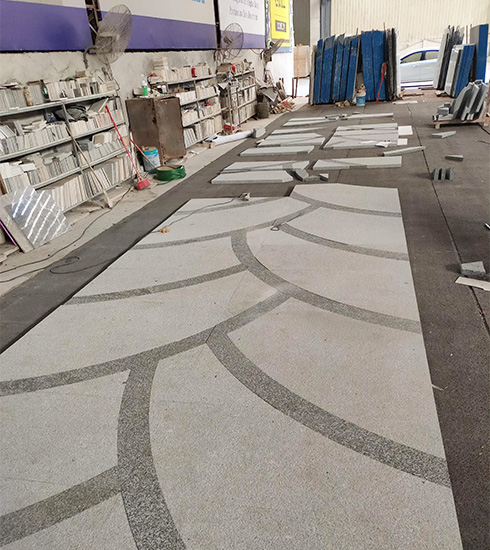

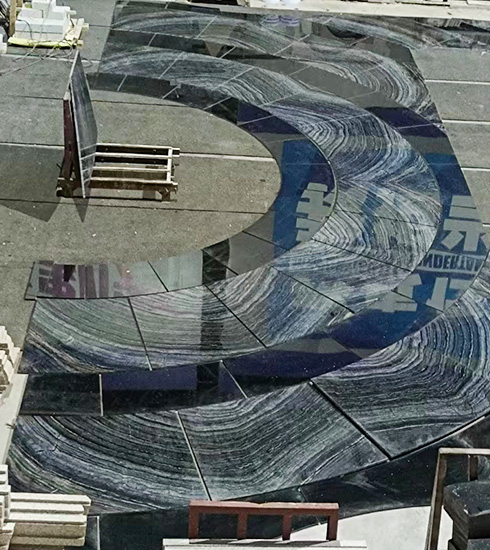

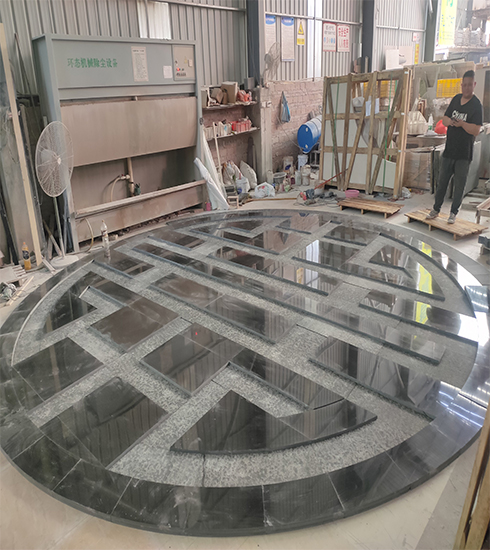

This 5 axis granite CNC bridge saw machine cutting line integrates cutting, milling, drilling, polishing into one. It can realize granite slab cutting, quartz section cutting, marble block cutting, etc. It is an ideal choice for tombstone manufacturing, cabinet stone countertops, bathtubs, etc.

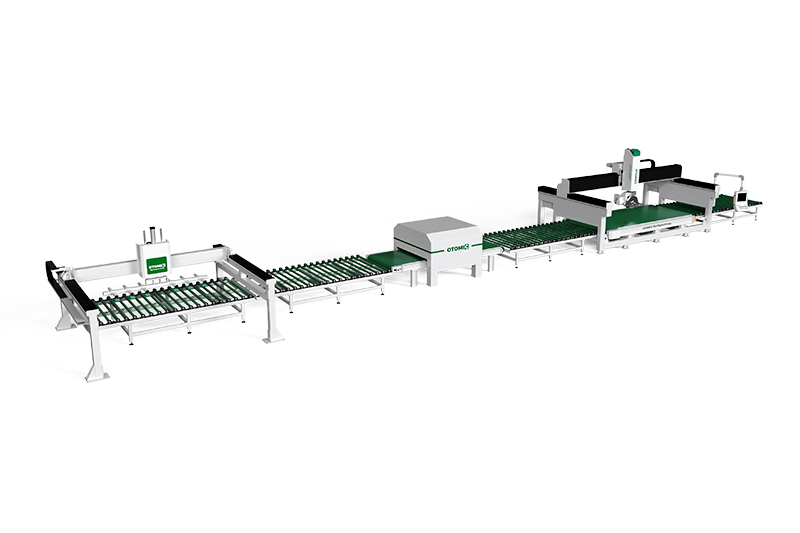

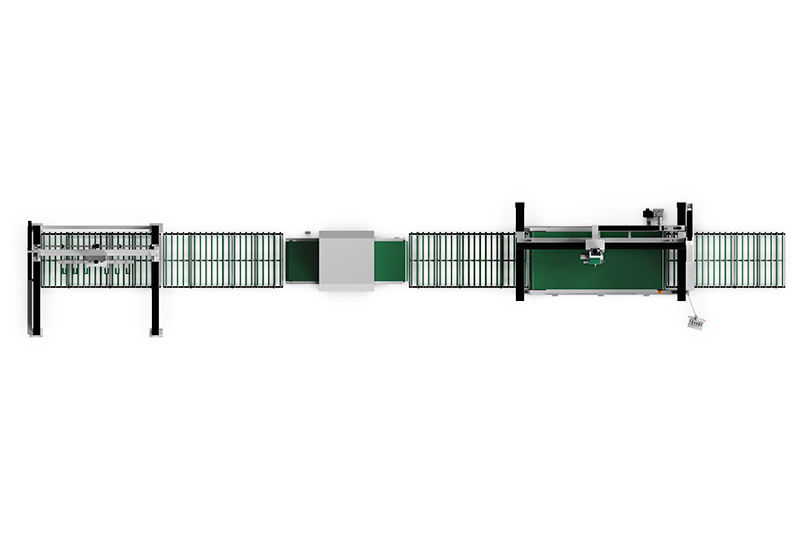

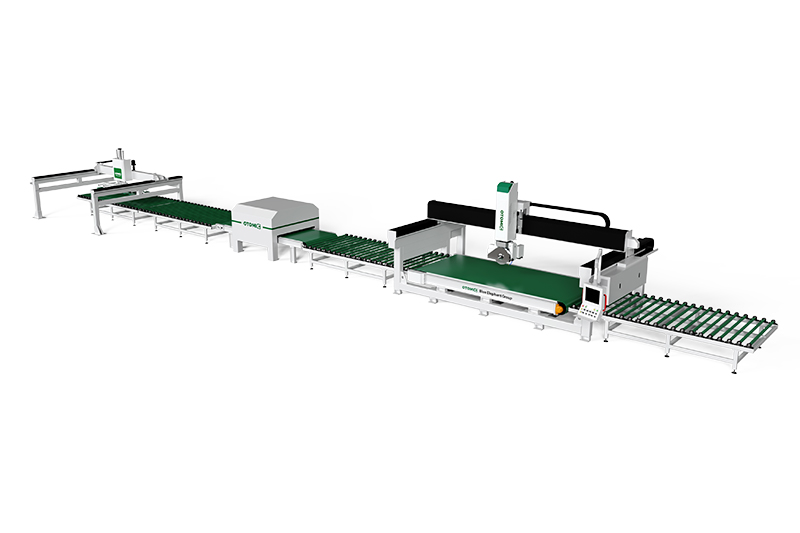

1. Complete intelligent stone processing line: automatic loading, automatic typesetting, automatic knife setting, automatic stone cutting, and automatic unloading.
2. This 5 axis CNC granite bridge saw machine cutting line can realize X-Y-Z-A-C 5-axis linkage, which can rotate 0°-365° and tilt 90° for cutting in any direction and at any angle.
3. Equipped with granite saw blade, the 5 axis CNC bridge saw can finish granite stone cutting, chamfering, polishing, grooving, drilling, arc grinding, etc.
4. The granite slab and block cutting line can cut marble, granite, jade, bluestone, etc. So it has a wide application in hotels, construction industry, construction sites, etc.
| QX3400-5X-MP Granite Stone Cutting Production Line | ||||
| Bridge Saw | Working travel | X, Y, and Z | 3400*1600*250mm | |
| C axis | ±365° | |||
| A axis | 0-90° （Auto） | |||
| Maximum thickness | 80mm | |||
| Moving speed | 25m/min | |||
| Spindle | 22kw air cooling spindle, 4000rpm | |||
| Control system | CutCam | |||
| Motor | CutCam servo | |||
| Reducer | Japan SHIMPO | |||
| Worktable (optional) | Type | Stick/Belt | ||
| Max. weight for feeding | 1500kg | |||
| Max. speed for feeding | 10m/min | |||
| Saw | Dimension | 300mm - 450mm | ||
| Size | 6000×3500×3600mm | |||
| Loader | Working travel | X, Y, and Z | 3500*4000*1000mm | |
| A axis | 0-90° | |||
| Control system | CutCam | |||
| Motor | CutCam servo | |||
| Reducer | Japan SHIMPO | |||
| Moving speed | 25m/min | |||
| Max suction size | 3200×1200mm | |||
| Min suction size | 300×150mm | |||
| Power | 8kw | |||
| Weight | 2500kg | |||
| Machine size | 4500×5000×3000mm | |||
