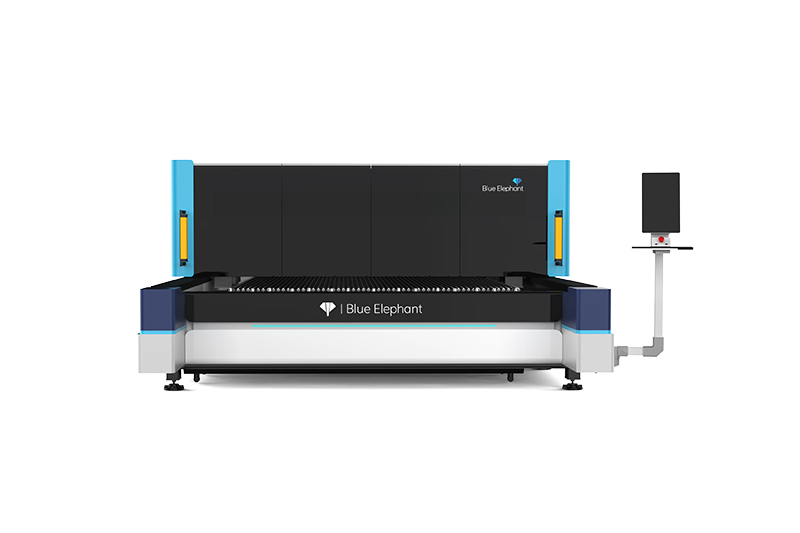

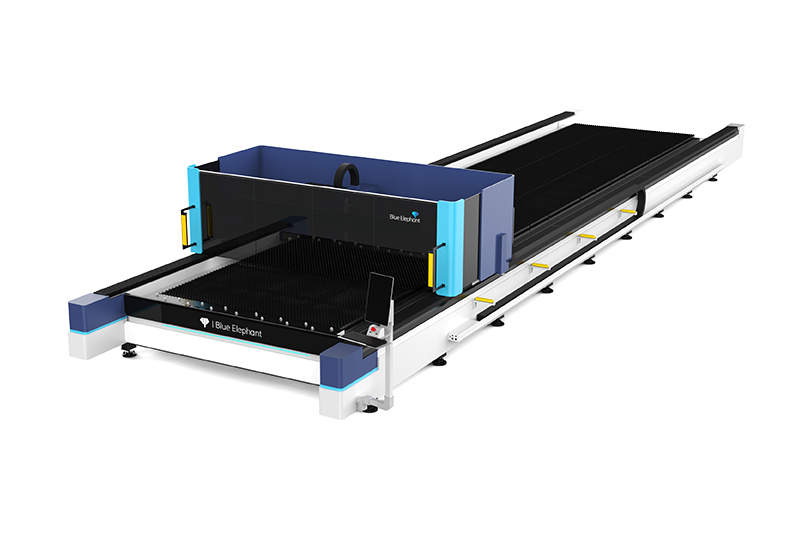

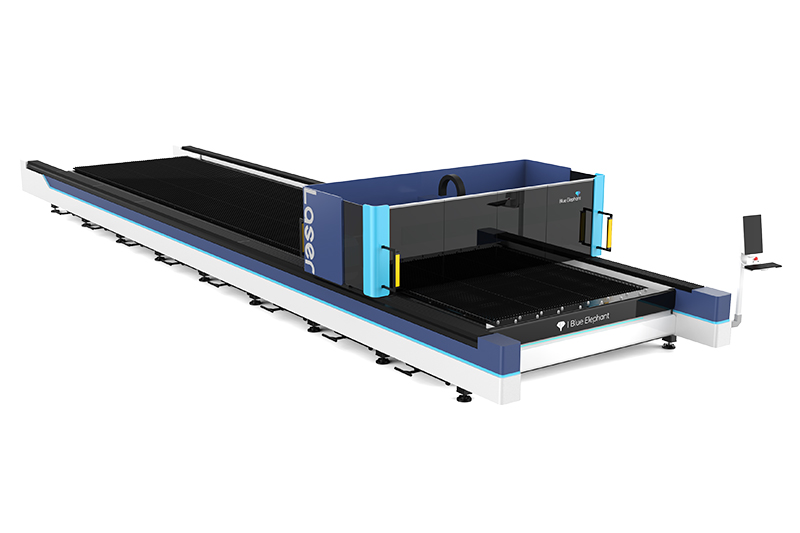

High Power 10KW Large Format Fiber Laser Metal Cutting Machine with Exchange Platform for Stainless Steel

5.0 based on 28 ratings and reviews

Brand : Blue Elephant
Model : ELECNC-1530SG
Category : Fiber Laser Cutting Machine
Price : $86500 / Set
Price Range : $50000 to $100000 / Set based on the configuration
Payment Terms : T/T/Visa/Mastercard/American Express/Discover cards
After-sale Service : Professional operation training service.
Supply Ability : 200 Sets per Month

Description

This 10kw large format metal laser cutting machine is a very high-power and high-performance metal laser cutting machine for sale. It is not only equipped with an exchange platform to quick change metal plates while cutting, but also with a very large format to handle larger metal workpieces in the automotive industry and aerospace engineering. And the large format is optional and customized of various sizes, such as 2000*4000mm, 2000*6000mm, 2500*6000mm, 2500*8000mm, etc.

Features

1. The anti-burning carbon-based refractory plate of the 10000w fiber laser cutting machine will effectively prevent the impact of slag injection on the bed.
2. The double positioning pins at the front and rear of the exchange platform are convenient to display the entire exchange process on the PLC touch screen.
3. The 10kw metal fiber laser cutter is equipped with a smoke exhaust device, and it can automatically sense the laser cutting position.
4. The 10kw large fiber laser cutting machine for metal conforms to EU's three Safety design norms and CE Certification.

Parameters

Model	1530SG	2040SG	2060SG	2560SG	2580SG
Laser power	6KW-20KW
Working area (mm)	1500mm*3000mm	2000mm*4000mm	2000mm*6000mm	2500mm*6000mm	2500mm*8000mm
Positioning accuracy of X / Y axis	±0.03mm
Repeated positioning precision of X / Y axis	±0.02mm
Maximum speed	200M/min
Maximum acceleration	2.0G

Click for details

Frequent Asked Questions

What is a large format metal laser cutter?
A large format fiber laser cutter uses a high-power fiber laser beam to cut large metalplates with high speed and accuracy.
What is the maximum thickness of metal that a large format metal laser cutter can cut?
The maximum thickness a large format fiber laser cutter can cut depends on the machine's power and specifications. Some machines can cut metals up to 30mm thick or more, while others are designed for thinner materials.

Fiber Laser Cutting Machine Details

Application

The application industries of large-format and high-power fiber laser cutting machines include:
Metal Fabrication and Manufacturing
Large-format high-power laser cutting machines are widely used for cutting and processing metal materials such as steel, aluminum, copper, stainless steel, etc. This includes industries such as automotive manufacturing, aerospace, defense manufacturing, and metal component manufacturing.
Shipbuilding
Laser cutting machines play a significant role in the shipbuilding industry. They are used to cut large steel plates for constructing ship hulls and components.
Construction
These machines are used for processing construction materials like steel structures, aluminum alloys, stainless steel, and other metals to create building frames, stairs, railings, etc.
Electronics Manufacturing
Laser cutting machines are used for cutting electronic components, circuit boards, plastic casings, etc., meeting the high-precision requirements of electronic products.
Stage Arts and Set Construction
Laser cutting technology is utilized in theaters, film production, and exhibition construction to create stage sets, decorations, and special effects.
