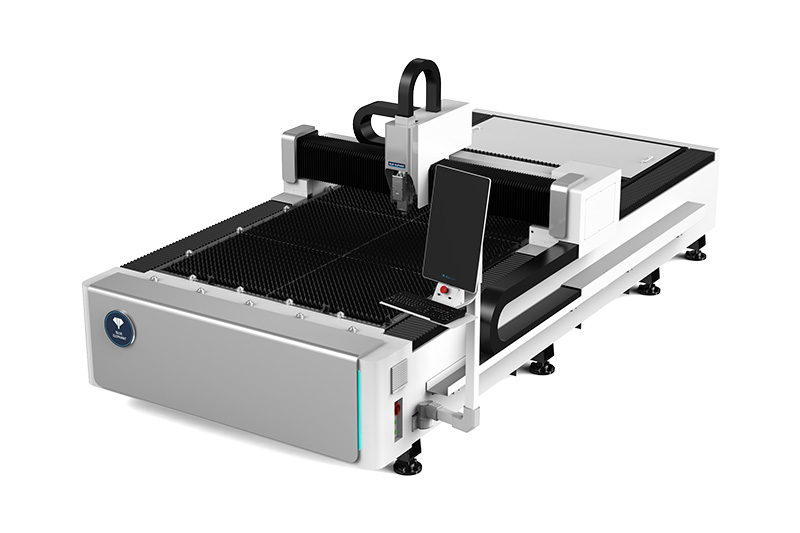

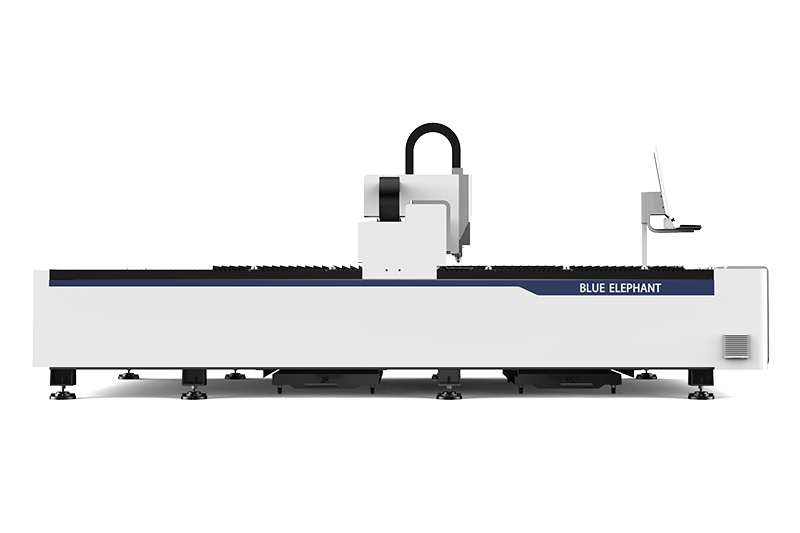

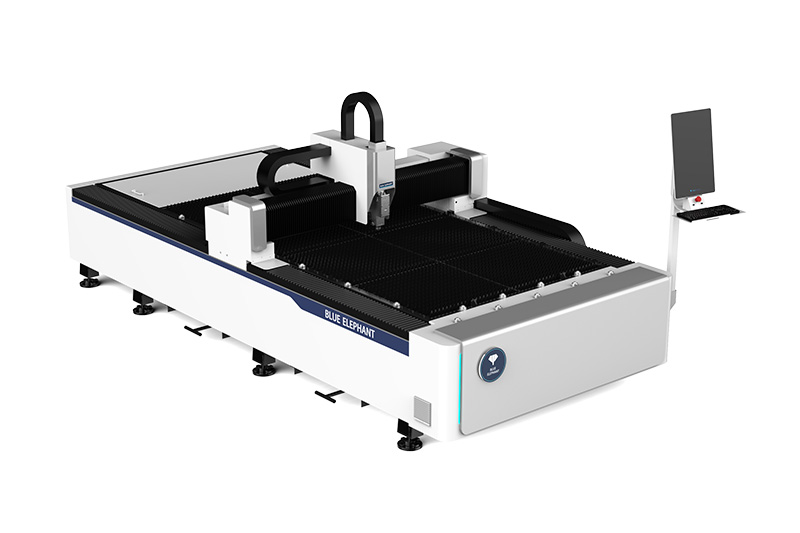

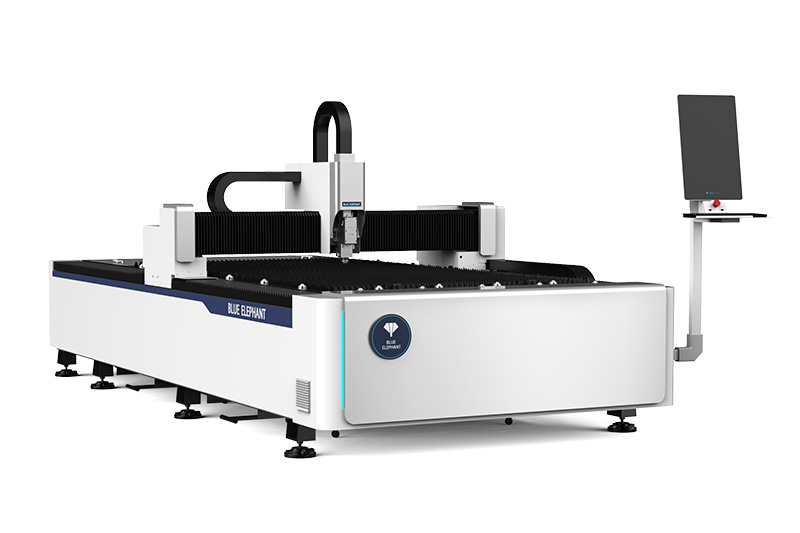

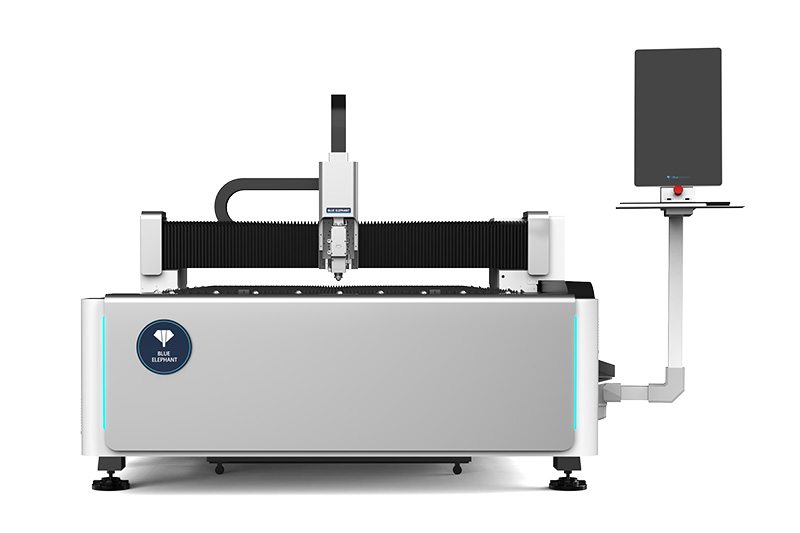

3015 Fiber Laser Cutting Machine
1530 Fiber Laser Cutting Machine

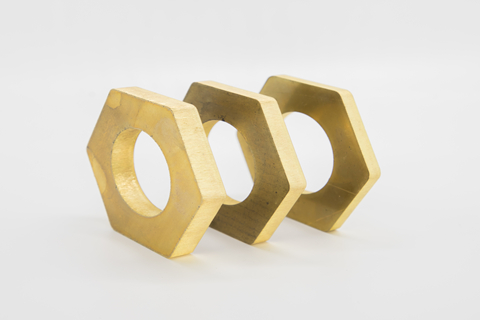

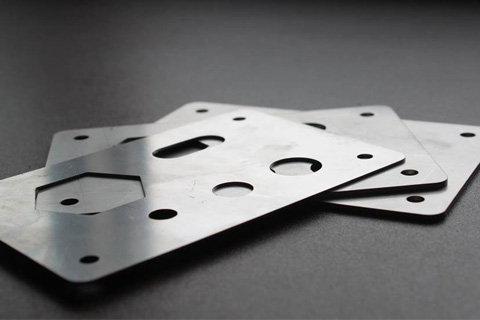

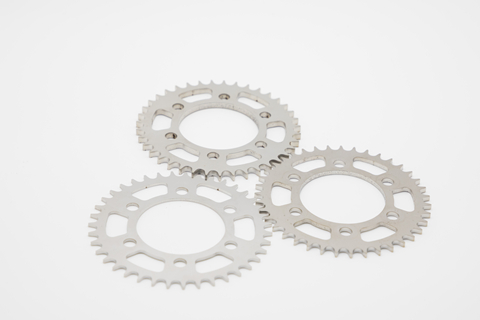

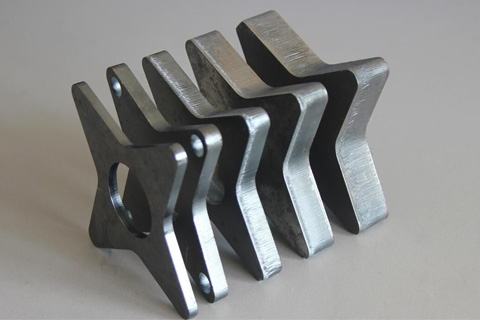

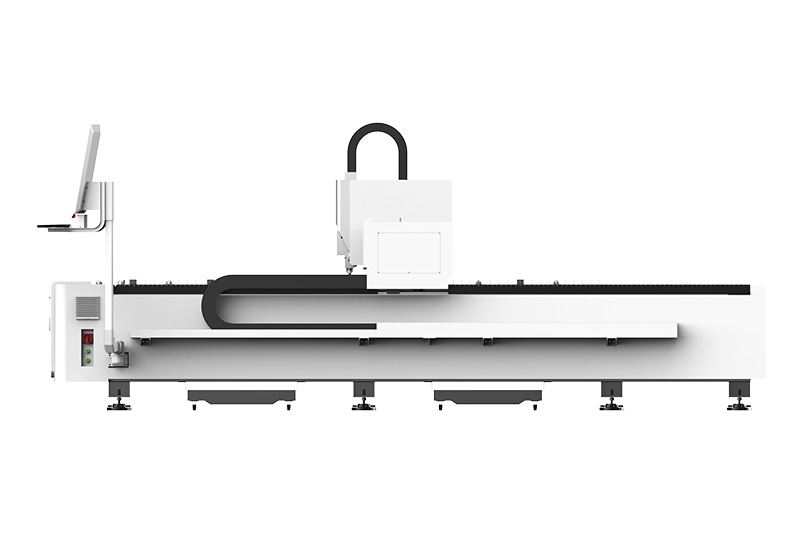

This is the best fiber metal laser cutting machine with 1000W and 2000W laser，it is widely used in the advertising, craft, and decoration industry for cutting metal sheets. It can cut thin aluminum, stainless steel, carbon steel, copper, and brass sheets easily and with high precision. The control cabinet is built in the machine structure, which saves more room and is suitable for metalworkers with a small workshop.
1. Intelligent automatic focusing laser head
Automatic focusing mode of the laser head reduces human interference with a focusing speed of 10m/min and repeated positioning accuracy of 50um.
2. Staggered blade worktable
The blade worktable is arranged in a staggered form, which can hold the metal sheet steadily.
3. Aircraft-grade aluminum beam
Aircraft-grade aluminum is corrosion resistant, lightweight and highly rigid, guaranteeing high speed laser cutting. Besides, it also guarantee the excellent cutting precision due to the perfect dynamic performance such as anti-twisting, anti-tilting and anti-deformation.
4. Integrated large volume dust removal system
The dust removal system can remove all the smoke generated from the cutting process with large air volume. This helps protect the operator’s health and the working environment.
5. Automatic lubrication system
Automatic lubrication method saves more human labor, reduces maintenance time, and greatly improves work efficiency.
| Model | ELECNC-1325FL | ELECNC-1530FL |
| Machine size | 4470*2035*1950mm | 4735*2251*1950mm |
| Positioning accuracy | ±0.03mm | ±0.03mm |
| Repositioning accuracy | ±0.02mm | ±0.02mm |
| Max. acceleration | 1.2G | 1.2G |
| Laser power | 1KW - 2KW | 1KW - 2kW |
| Laser | Multiple options | Multiple options |
| Focusing method | Auto | Auto |
| Max. running speed | 100m/min | 100m/min |
