1325 ATC Rotary Axis CNC Router
1530 Rotary Axis CNC Router

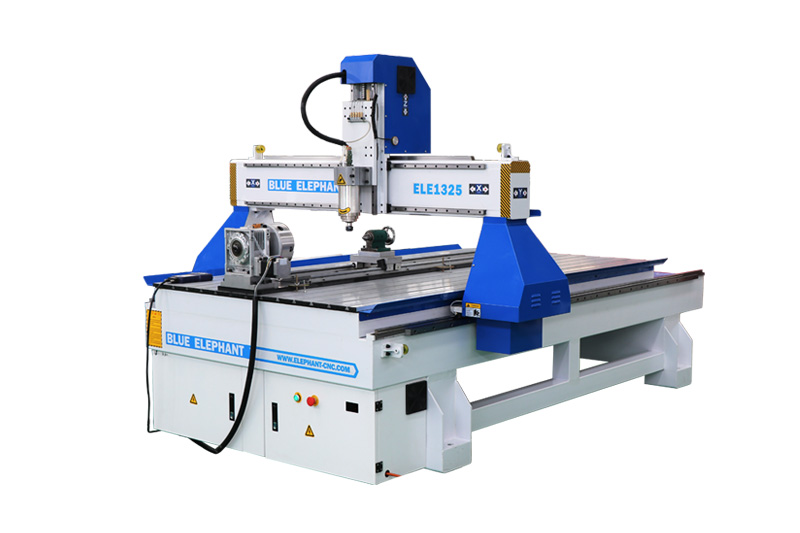

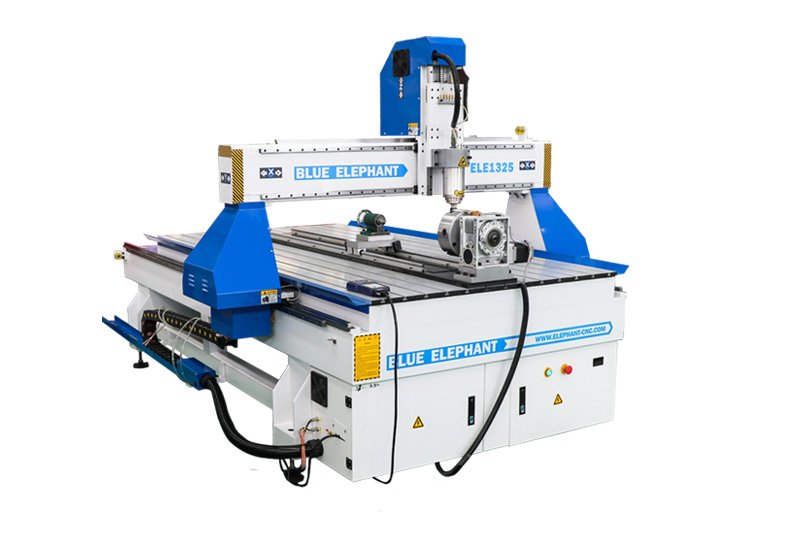

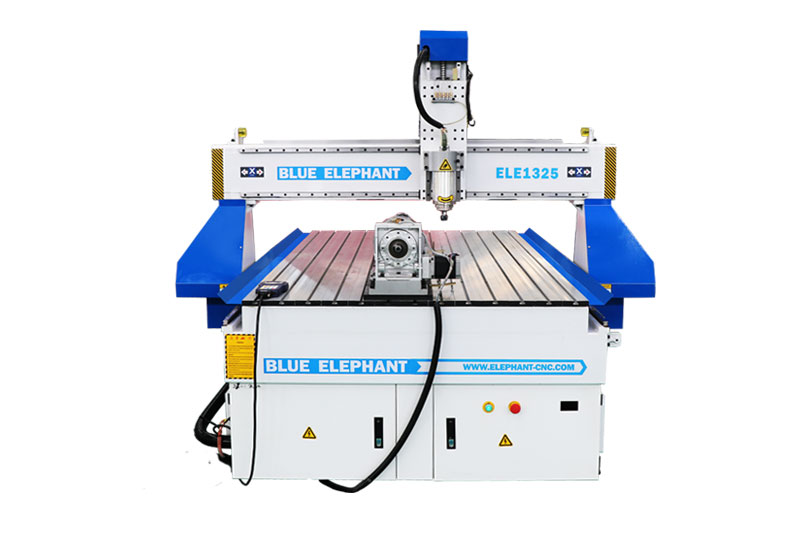

This is a classic 4th axis CNC router and it is mainly used to process cylindrical workpieces. Especially the swingable spindle, it can also do some complex processing such as 3D or 4d workpiece.
1. Designed with 4th axis rotary table, it is suitable for cylinder wood carving patterns and chair legs.
2. With one independent handle, it is very convenient to operate.
3. Adopting a water cooling spindle, it has the features of low noise and better cooling effect.
4. All the specifications can be customized according to your requirements.
| Model | ELECNC1325-R |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 1600*3000mm, etc. |
| Z axis travel | 300mm, option: 400mm, 500mm, etc. |
| Spindle type | 3.0kw water cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Rotary device | 200mm diameter rotary device |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet:φ4, φ6, 1/8, 1/2 |
| Control system | DSP B18 option：Mach3; NC Studio |
| Driving system | Stepper 450B motor and Leadshine 860H drivers. option: 750w Leadshine hybrid servo |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Vacuum& T-slot work table |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63),etc |
Click for details

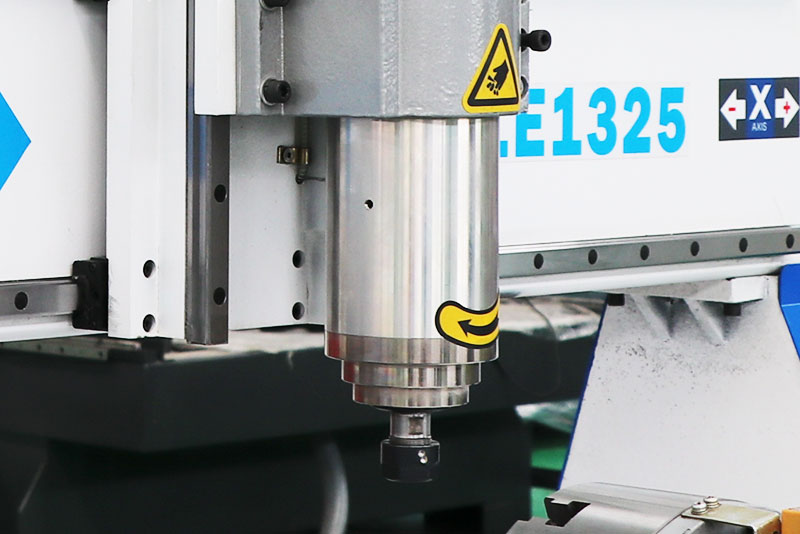

Spindle

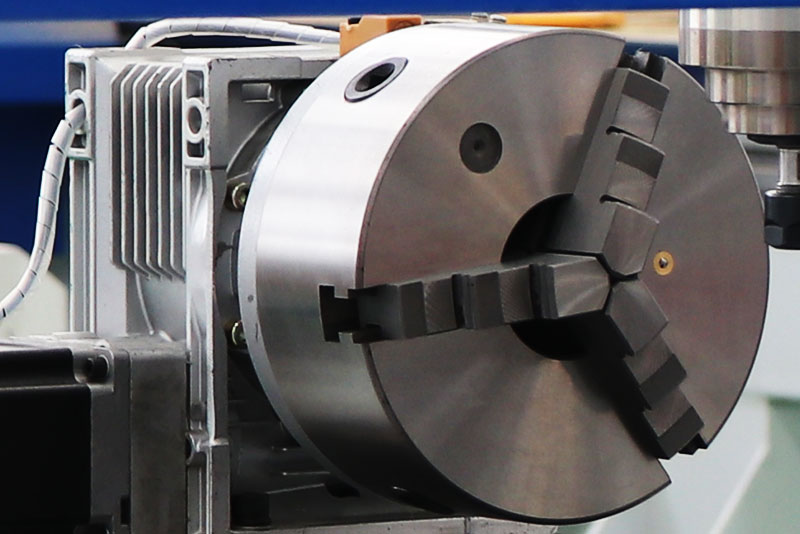

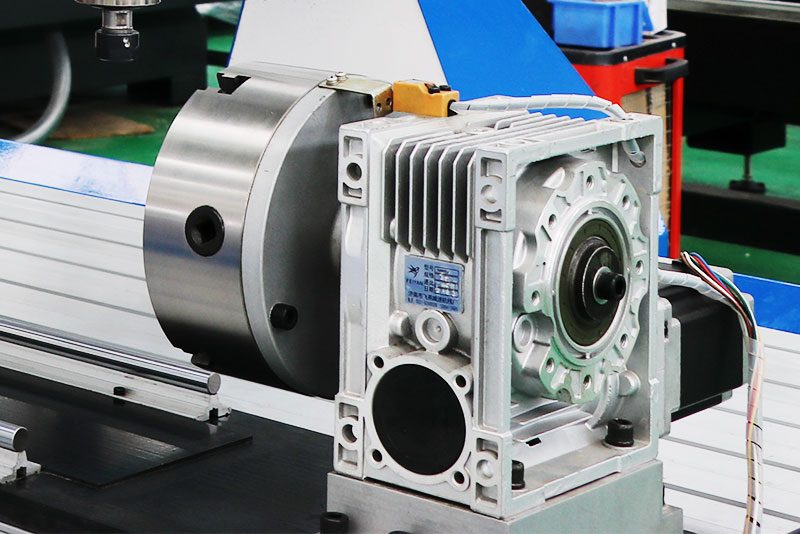

Rotary device

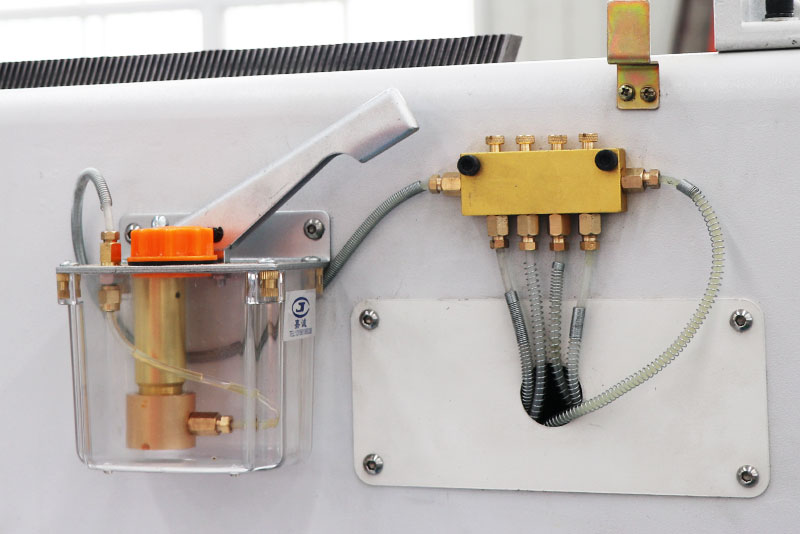

Lubrication
