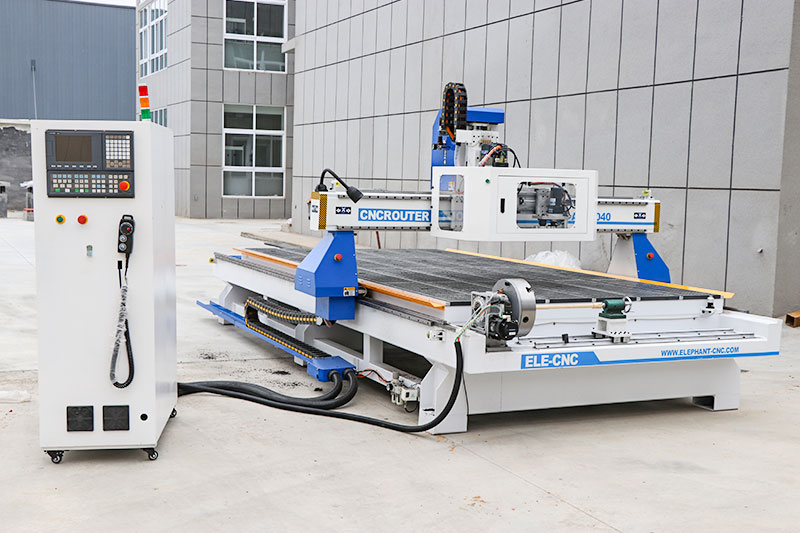

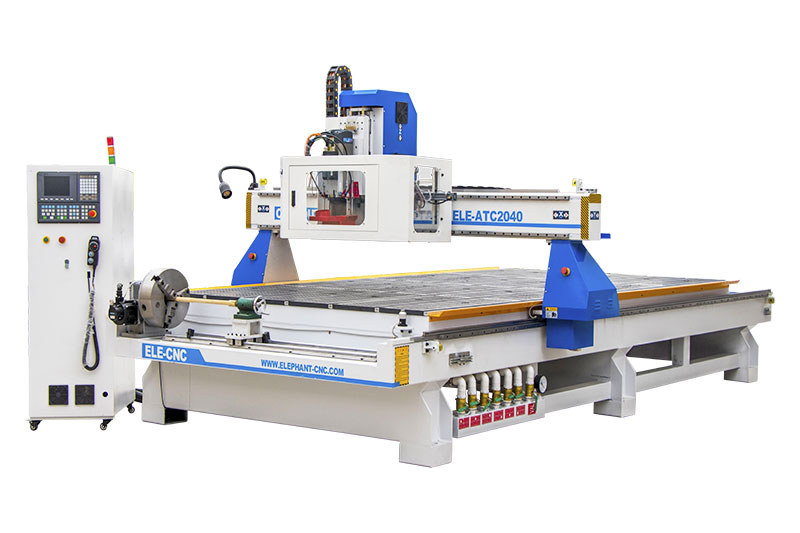

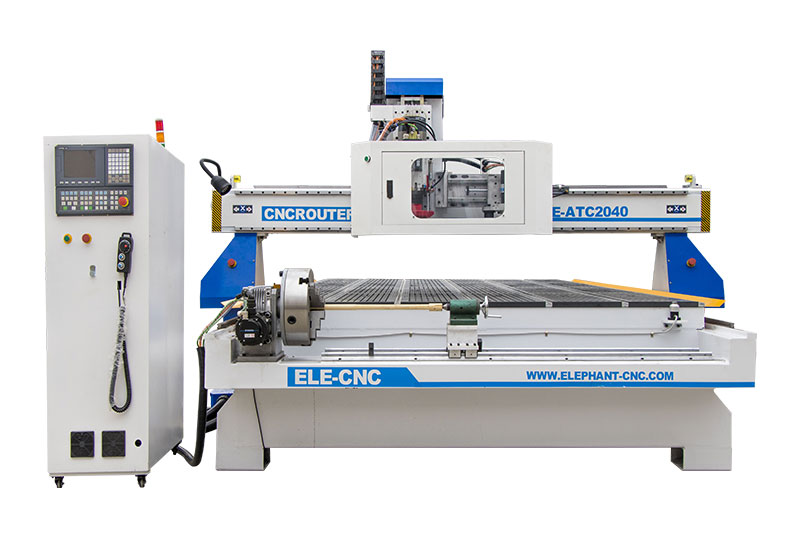

ELECNC-2040 ATC CNC router machine is now sold at best price. Tt is equipped with a front-end rotary device, which is easy to process workpieces. And the dust cover and lamp are designed for cleaner and more convenient woodworking. T-slot and vacuum working table helps reduce the wears out of machine transmission.
1. Different knives can be installed in the tool holder. The tool can change automatically to process different patterns of objects.
2. The working size can be increased according to your requirements. And the working efficiency can be greatly promoted.

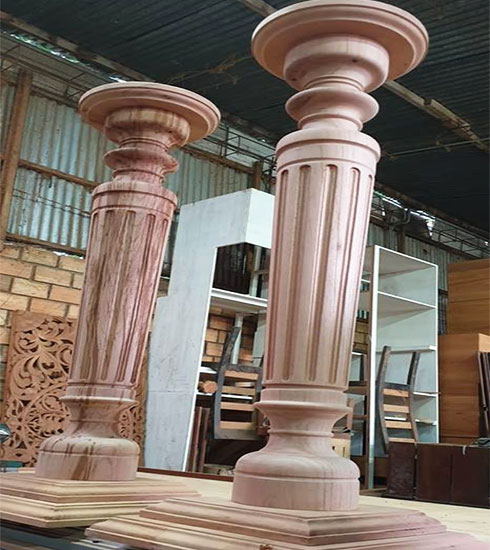

3. Equipped with a rotary device, and it can be removed and put to your desired location according to the processing requirements.
4. A firm and reasonable structure, it makes the machine has a longer service life and more durable.
| Model | ELECNC2040ATC |
| X,Y axis travel | 2000*4000mm |
| Z axis travel | 200mm, option:300mm,400mm,500mm,600mm,etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet:φ4,φ6,1/8,1/2 |
| Control system | Taiwan SYNTEC /LNC controller, option：Ncstudio |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces(X2,Y3) |
| Linear guide | Taiwan Linear guide with dust proof |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible Software | Artcam,Alphcam,Type 3,Ucancam, Aspire,etc |
| Command Language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working Accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc |
Click for details

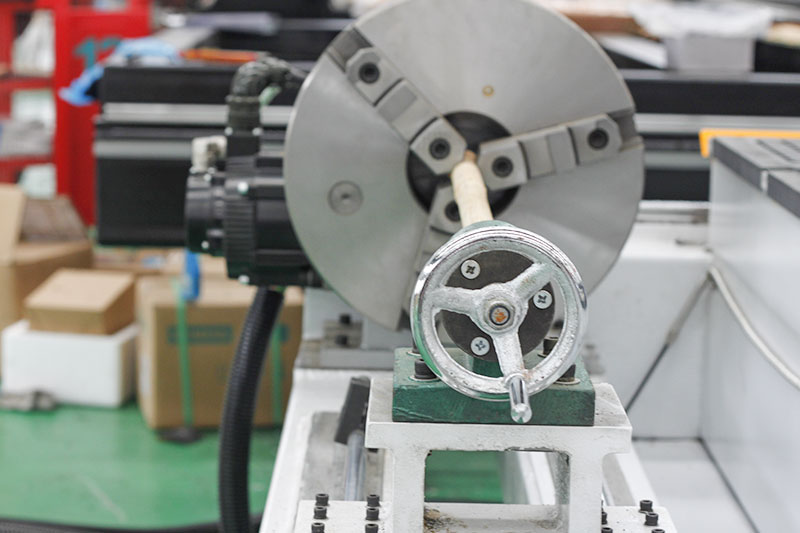

Rotary device
Carousel tool changer

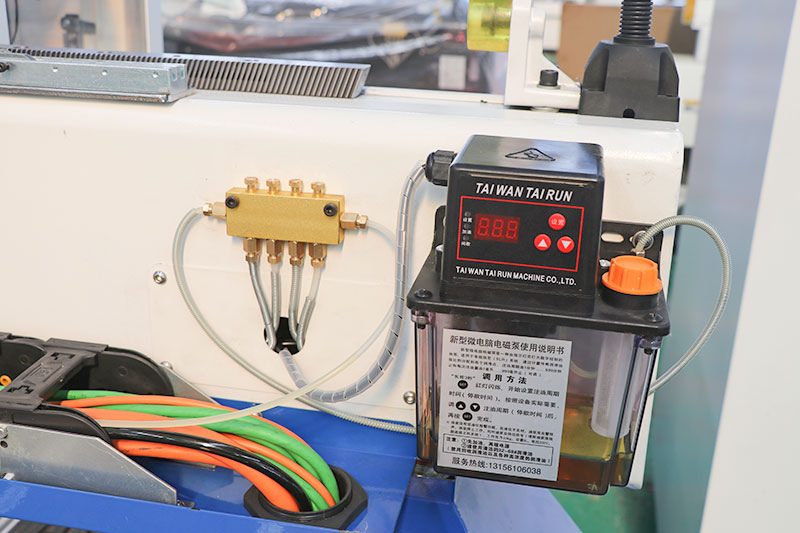

Automatic lubrication system

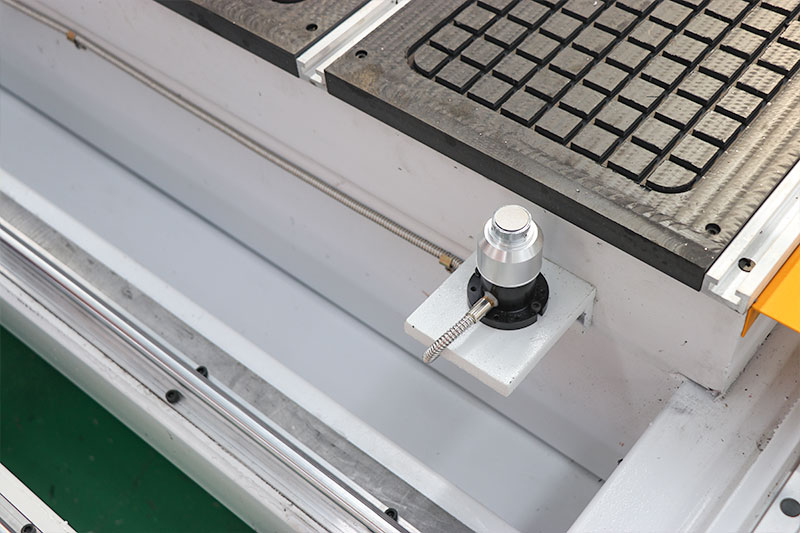

Tool senser
