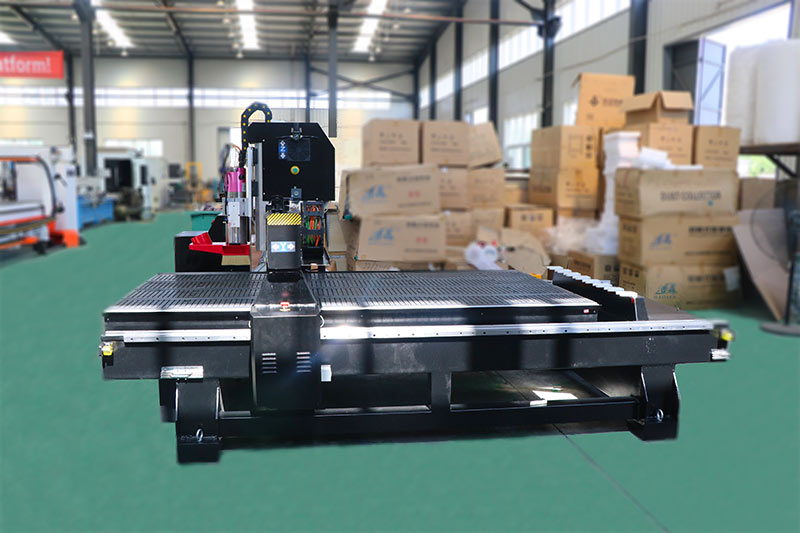

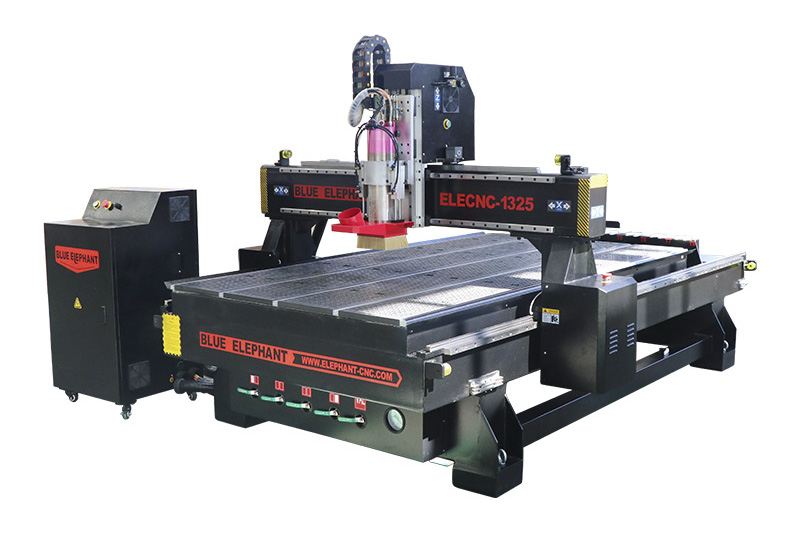

4x8 Auto Tool Change CNC Router
1325 CNC Router with Laser Head

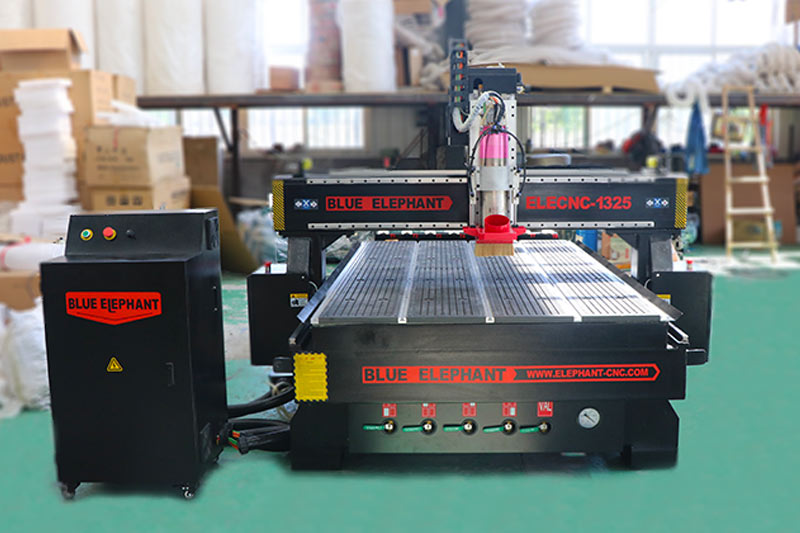

1325 4x8 Linear ATC CNC router machine is a very classic and popular ATC CNC router for sale. It is designed to help people out of boring work of tool changing, greatly saving the operation time. Once the wood piece uploaded and code set, the ATC CNC machine finishes the rest work. So it is a choice to make woodworking automatic.
1. Linear tool changer magazine saves more time and makes workpiece processing more efficient.
2. Leadshine servo motor and drivers, which ensure the better performance of the machine.
3. Quality CNC kits, which greatly guarantee the long service life of the machine.
4. Heavy-duty frame and gantry, which makes the machine operate more stably.
| Model | ELECNC1325ATC |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 5.5kw ATC water cooling spindle, 24000rpm, ER32 collets |
| Inverter type | 5.5kw |
| Drilling bank | Optional |
| Tool magazine | Linear tool magazine Option: Carousel type auto tool changer |
| Tool holder with collet | BT30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | NK105 G3 handle controller, option: Taiwan LNC controller/Taiwan SYNTEC controller |
| Driving system | 750w Leadshine hybrid servo motor. option:850w Leadshine AC servo |
| Reducer | Optional |
| Machine structure | Heavy duty body |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Optional: 5 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Effective Working area | 1300* 2500* 200mm(optional) |
| Tool magazine | Linear tool magazine with 8 tools |
| Spindle | Water cooling spindle |
| Motor and drive | Leadshine servo motor and drivers |
| Inverter | Taiwan Delta 11kw B inverter |
| Structure | Heavy duty body |
| Table surface | T-slot & vacuum working table |
Click for details

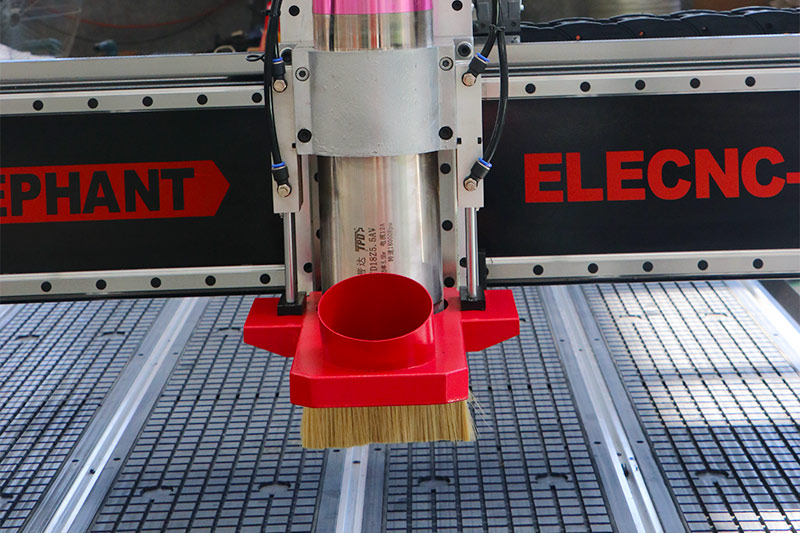

Spindle

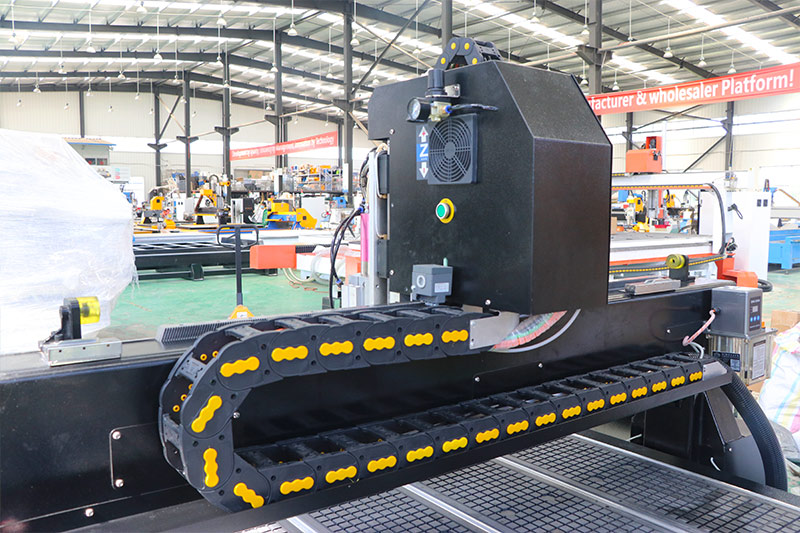

X axis towline

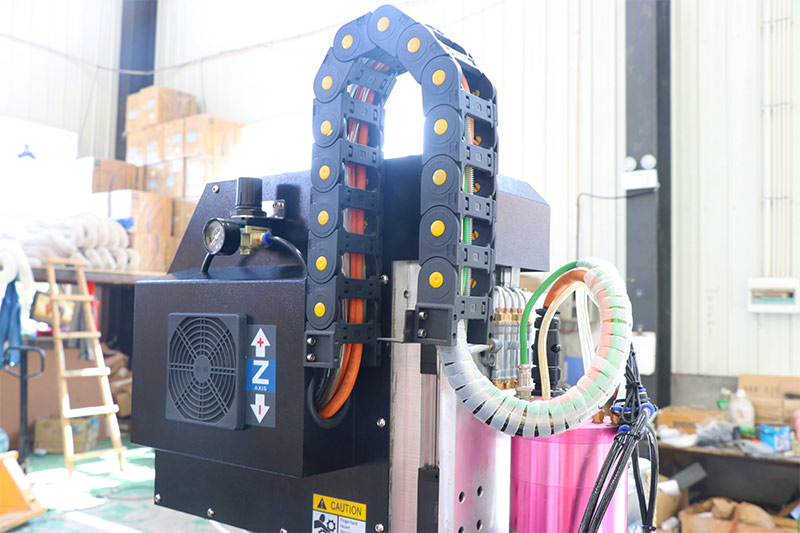

Motor

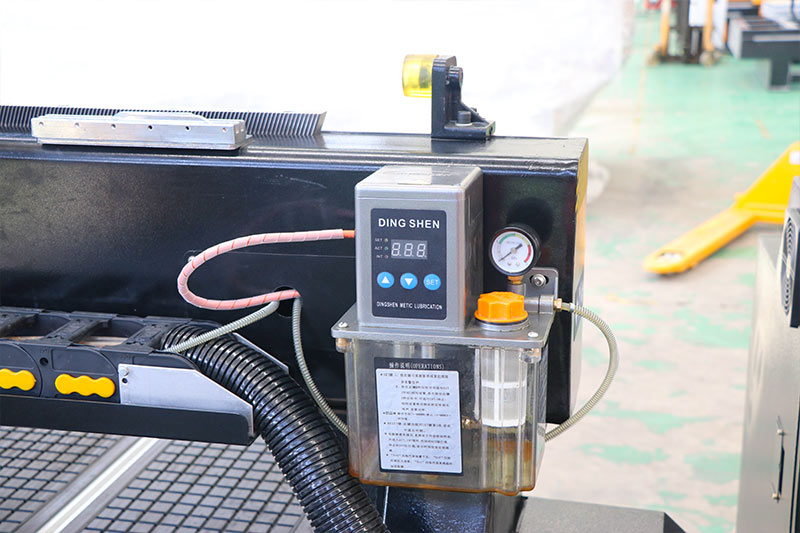

Lubrication
Click for solution
Click for quotation
We received the machine and get it into our office. Did not have any problems. We have done some preliminary tests and it looks good so far. We are happy with the machine quality.
We have already buy CNC for aluminum cutting from your company 4 years ago, we are satisfied. There were not any problems so far. We have good experience with your company.
The work efficiency of this machine is very high. I use two spindles to do same work at the same time, it greatly improves my work efficiency. I like it very much.
I finished installation my second CNC machine and equipment. It works pretty good and I’m really satisfied about machine. I am very familiar with the machine now if you have customer needs technical support, you can let them contact me ;)
