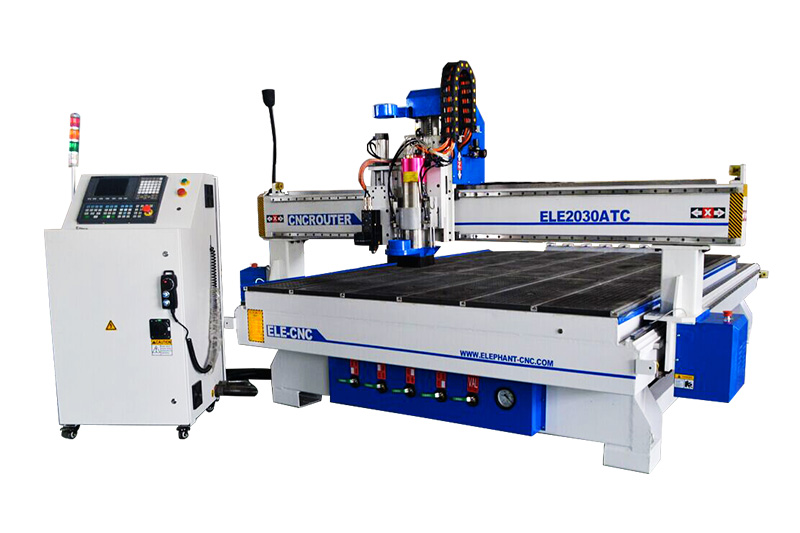

4x8 ATC CNC Oscillating Cutting Machine
1325 ATC CNC Router with Oscillating Knife

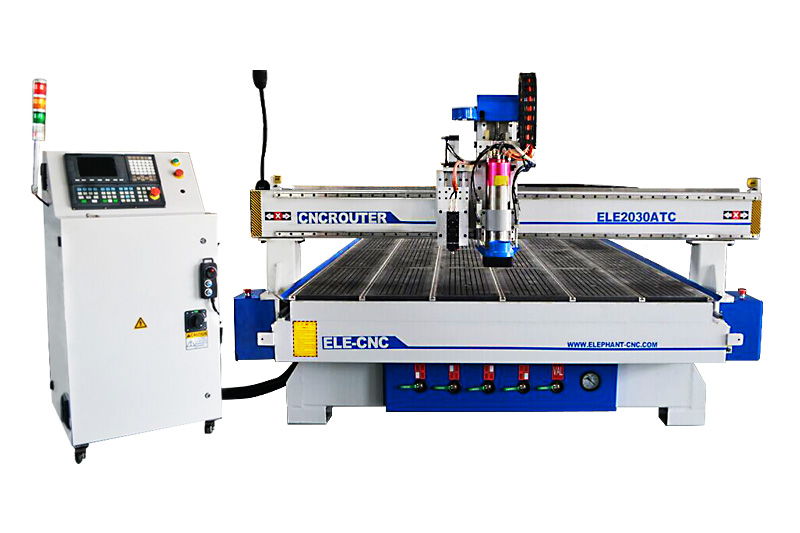

The 6x10 cardborad CNC digital cutting machine is a gantry moving CNC machine with CNC Oscillating Knife and ATC CNC Router. It has wide usage of soft material cutting and wood cutting and carvings, such as MDF, hardwood, cotton material, rubber plate, etc. And the CNC knife cutting makes no smoke and heat, which is a safe cutting method.
1. CNC Oscillating Knife Cutting Machine with ATC Spindle can cut a wide range of materials, from cardboard, cotton material to acrylic, MDF and hardwood.
2. Advanced Taiwan Syntech system, easy operated with the handle.
3. High quality of CNC kits: Germany ECO CAM EOT-3, Automatic lubrication system, Leadshine hybrid servo motors, etc.
| Model | ELE2030ATC-EOT-3 |
| Working area | 2000*3000*200mm (can be customized) |
| Working voltage | 380V/220V, 3PHASE, 50HZ (can be customized) |
| Control system | Taiwan SYNTEC 60WE control system |
| Control box | 1.4m high control box |

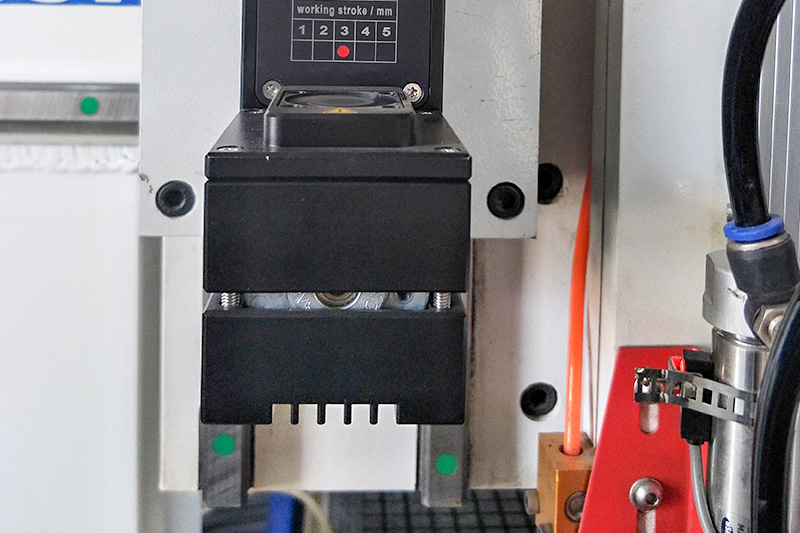

| Oscillating knife | Germany ECOCAM EOT-3 |
| Spindle | 5.5kw water cooling ATC spindle |
| Spindle speed | 0-24000RPM/MIN |
| Tool magazine | Linear type + 8pcs ISO30 tool holders (Carousel type for optional) |
| Motor and driver | 750w Leadshine hybrid servo motors and drivers |
| Inverter | 5.5kw Fuling inverter |
| Structure | New type thicker and bigger heavy duty welded frame and gantry |
| Table surface | T-slot and Vacuum Working Table |
| Gantry structure | Gantry Moving |
| Lubrication system | Automatic lubrication system |
| Calibration | Automatic tool sensor calibration |
| Mist cooling sprayer | Automatic oil mist cooling sprayer |
| Transmission | X,Y Axis: Helical rack, Taiwan 25# Rail Linear Bearing Z Axis: Taiwan Rail 25# Linear Bearing & Taiwan TBI Ball Screw |
| Vacuum pump | 7.5kw water circulation vacuum pump (380V, 3P, 50HZ) |
| Dust collector | 1.5kw new type double pockets dust collector (380V, 3P, 50HZ) |
| Command language | G Code |
| Color | According to your reference |
| Applications | Leather, carpet, carton, wood, MDF, PVC, acrylic, cardboard, rubber, corrugated box, foam, leather strip. |
Click for details
Head

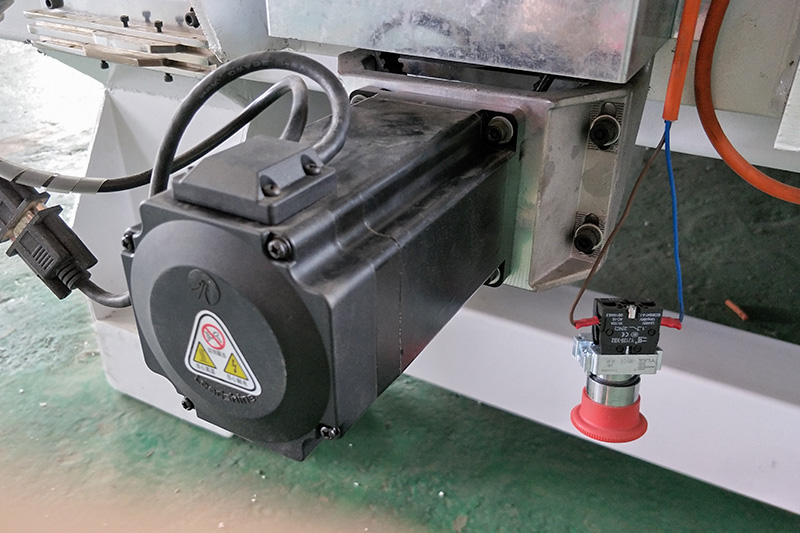

Motor

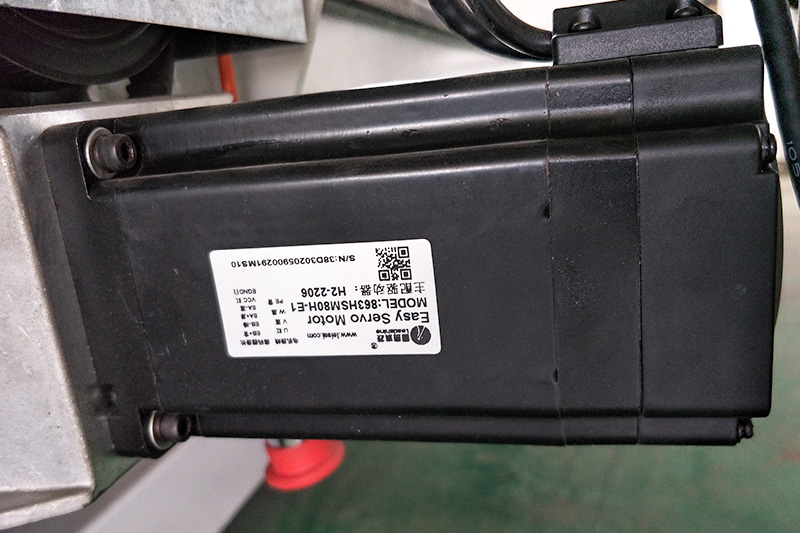

Motor

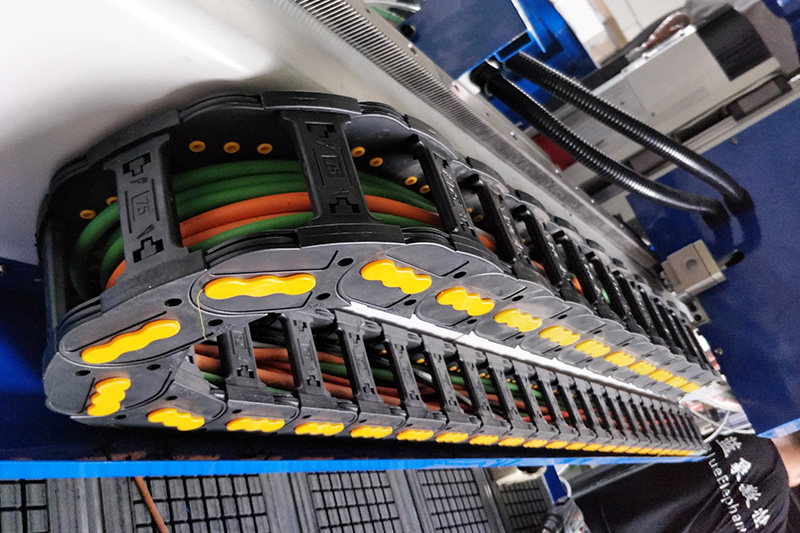

Towline
Click for solution
Click for quotation
