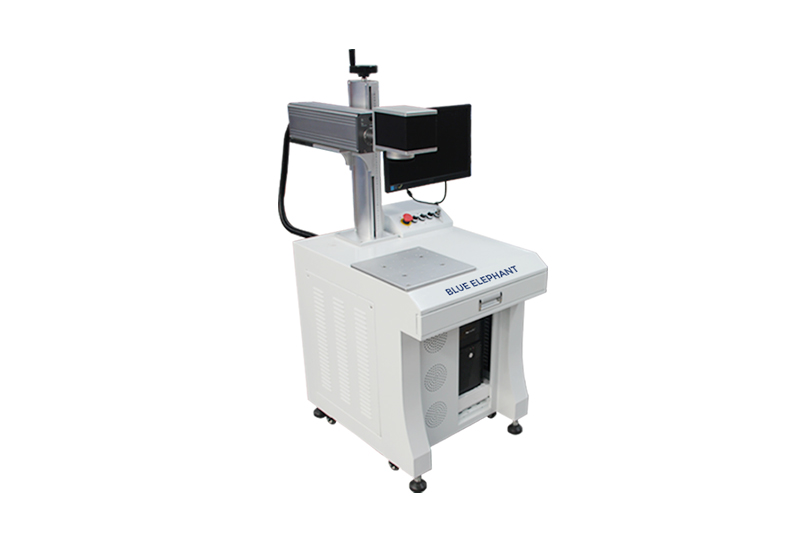

The UV laser marking machine is a marking machine that uses UV laser source. Unlike the fiber laser marking machine, UV marking belongs to cold processing. The wavelength of the UV laser is 355nm, and the focusing spot is extremely small. So it can greatly reduce the mechanical deformation of the material and has a small heat affected area. Therefore, it is the best choice for ultra-fine marking and engraving.
1. UV laser marking machine can mark and engrave most plastic and some metal materials. For example, PVC, PE, PP, PLA, acrylic, aluminum, gold, titanium, stainless steel, etc.
2. Due to tiny heat affected area and no thermal effect, the UV fiber laser cutting machine will not cause burn to the materials.
3. It has stable performance, compact size, and small energy consumption.
4. With fast marking speed and high efficiency, the UV laser marker is the first choice of users having higher marking requirements.
| Model | ELECNC UV laser marking machine |
| Laser source | UV laser |
| Laser power | 3W, 5W, 7w, 8W, 10W, optional |
| Laser wavelength | 355nm |
| Working area | 110mm*110mm, 150mm*150mm, 180mm*180mm, 200mm*200mm, 300mm*300mm |
| Marking speed | ≤2000mm/s |
| Marking depth | ≤0.1mm |
| Repeated positioning accuracy | ±0.003mm |
| Minimum line width | ≤0.005mm |
| Repetition frequency | 0-40KHz |
| Voltage | 110V/220V, 50Hz/60Hz |
Click for details
Click for solution
Click for quotation

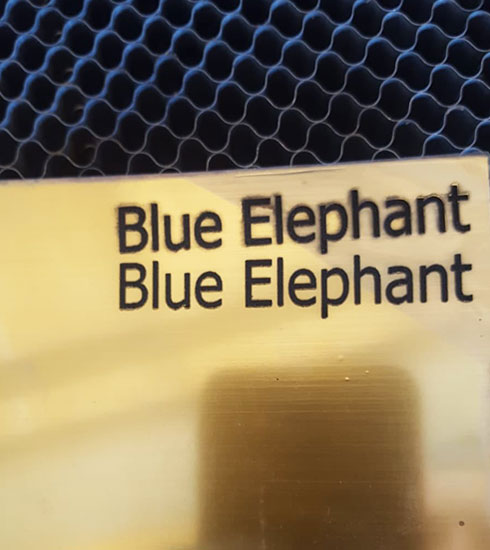

The following samples were sent from French users with the 1325 3 axis engraving machine. It can be seen from the picture that the customer mainly processes the crafts such as advertising signs and ornaments.
