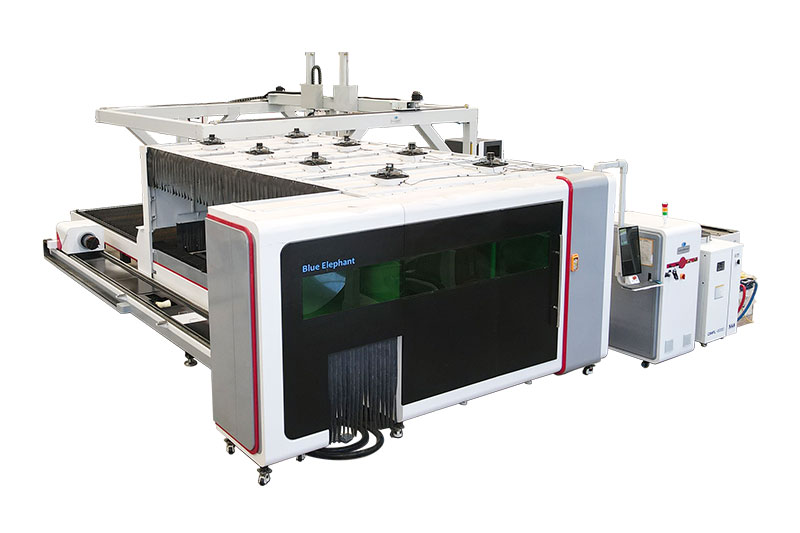

Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine
Environmetal Friendly Full Cover Exchange Platform Fiber Laser Cutting Machine for Cutting Sheets
2024 latest automatic loading and unloading integrated half enclosure sheet and tube fiber laser cutting machine adopts a half enclosed protective cover.It is stable, efficient and high-precision.The loading and unloading equipment greatly improved work efficiency.
1.The high-strength carbon steel plate welded machine bed is more stable and solid, the overall mechanical structure of the machine has small deformation, small vibration, strong structural rigidity, and ensures cutting accuracy.

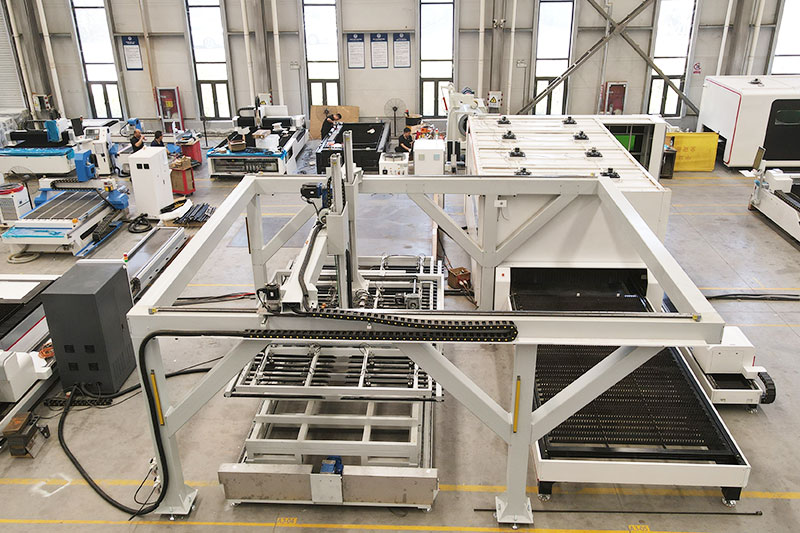

2.The production process realizes fully automatic loading and unloading, saving time and effort. It is equipped with raw material and finished product trays, meeting all large, medium and small plate cutting requirements, and has complete functions, which is popular among customers.

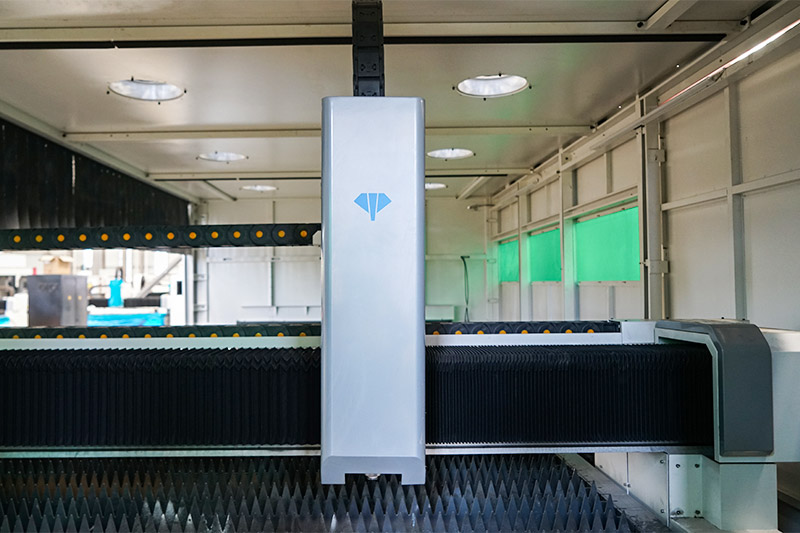

3. Aviation-grade aluminum is corrosion-resistant, highly rigid, and lightweight, which ensures the high-speed operation of the laser machine. At the same time, the material is resistant to distortion, tilting, and deformation, ensuring the stability and accuracy of cutting.
| Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine | |||
| Rated load | kg | 1000 | |
| X axis travel | mm | 5000 | |
| Z axis travel | mm | 1500 | |
| Max.size of the load material | mm*mm | 2000*4000 | |
| Min.size of the load material | mm*mm | 500*500 | |
| Max. thickness of single board | mm | 16 | |
| Min. thickness of single board | mm | 0.5 | |
| Air supply pressure | MPa | 0.55 | |
| Max. running speed | M/min | 20 | |
| Total machine size |
Length | mm | 9000 |
| Width | mm | 6000 | |
| Height | mm | 4200 | |
| Total machine weight | Kg | 4000 | |
Click for details
Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine Part
Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine Part
Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine Part
Automatic Loading and Unloading Integrated Half Enclosure Sheet and Tube Fiber Laser Cutting Machine Part
Click for solution
Click for quotation
I use this machine to do more cabinets. The machine works great. Cutting surface is smooth, it’s a very good machine for my work. Now I’m planning to buy edge banding machine and side drilling machine from Blue Elephant. They’re becoming more and more professional in offering furniture production line.
We have tested the machine, it’s working properly. We are planing to purchase the second one, please send PI. Thanks very much.
We have already buy CNC for aluminum cutting from your company 4 years ago. We are satisfied, there were not any problems so far. We have good experience with your company.
We received the machine and get it into our office. Did not have any problems. We have done some preliminary tests and it looks good so far. We are happy with the machine quality.
