1350 2-head CNC Router
1325 2-head CNC Router

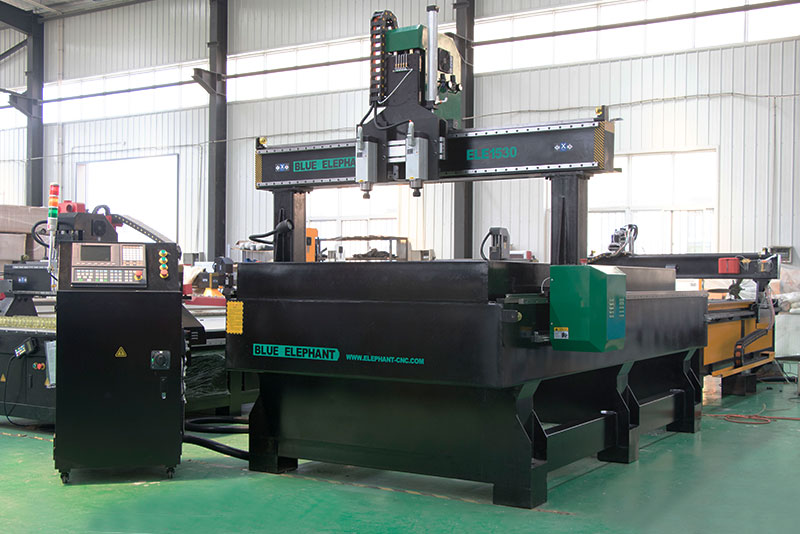

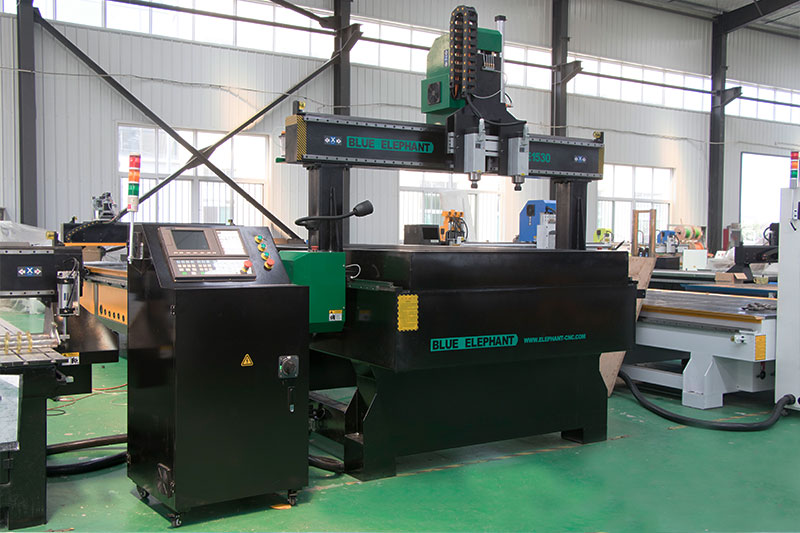

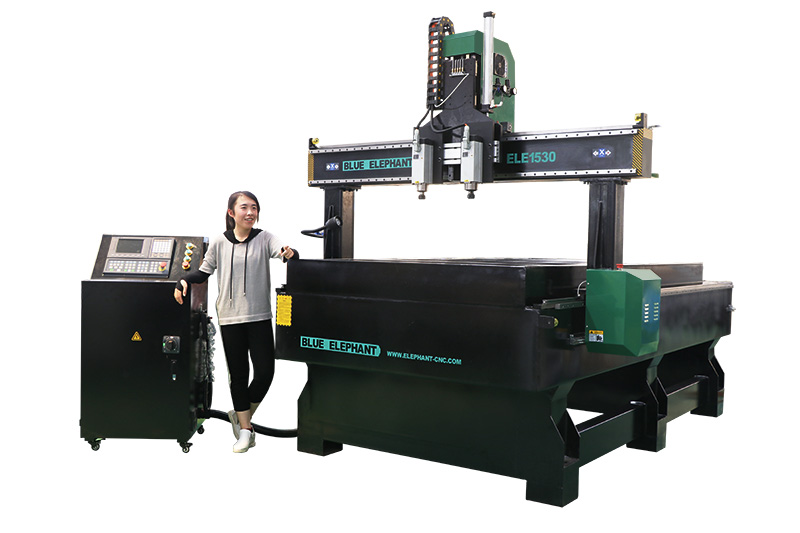

This is a 1530 multi head CNC wood carving machine specially designed for processing large workpieces with heavy body frame. And the two spindles can work at the same time, which greatly improves processing efficiency.
1. Equipped with a 1.2-meter-high body frame, which is heavier and more durable.
2. Two spindles can work on two workpieces at the same time, which greatly improving the production efficiency.
3. Equipped with air cooling spindle, and it has the features of low cost and easy operation.
4. All the specifications are allowed to be customized for your special requirements to meet your working need.
| Model | ELECNC1530-2S |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc. |
| Z axis travel | 200mm, option: 300mm, 400mm, etc. |
| Spindle type | 2x3.5kw air cooling spindle, ER20 |
| Inverter type | 3.7kw |
| Rotary device | Option |
| Tool magazine | No tool magazine Option: linear or carousel type auto tool changer |
| Tool holder with collet | ER20 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Taiwan Syntec 6MB |
| Driving system | 850w Japan Yaskawa servo motor and drivers |
| Reducer | Option: Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | No work table, customized for customer |
| Positioning cylinder | Optional: 7 pieces (X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 40m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw (ISO30, HSK F63), etc. |
Click for details

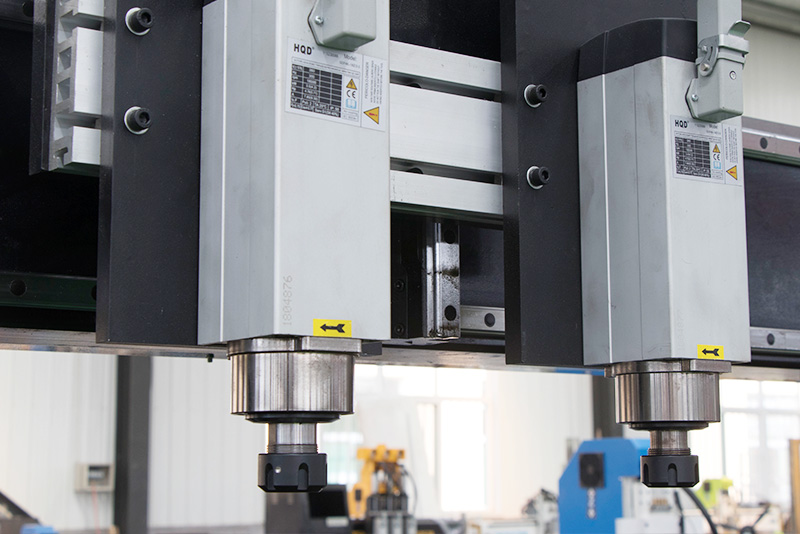

Spindle

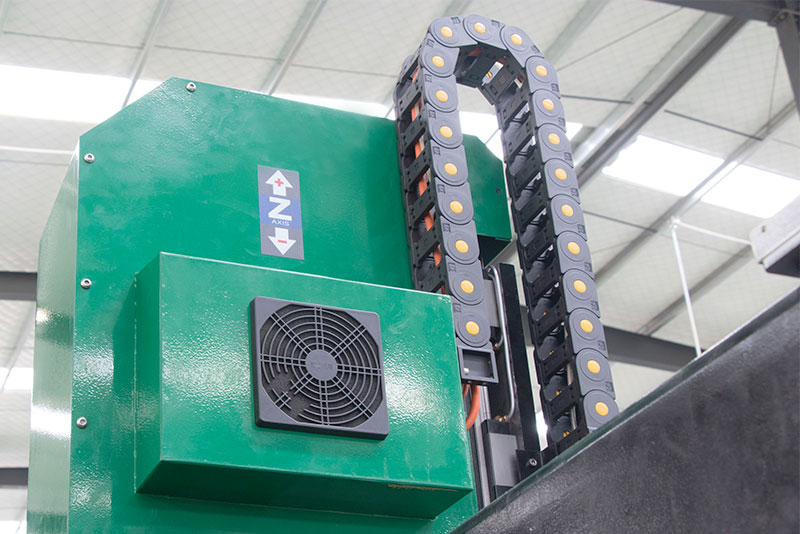

Z axis

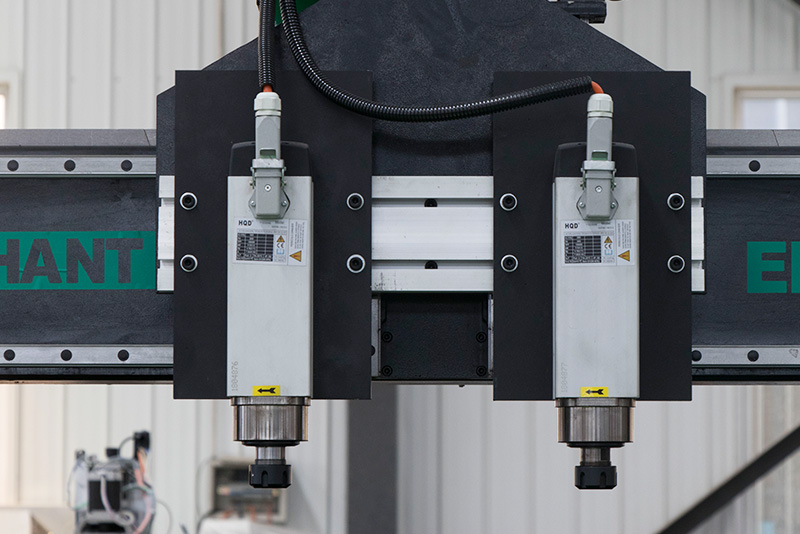

Head

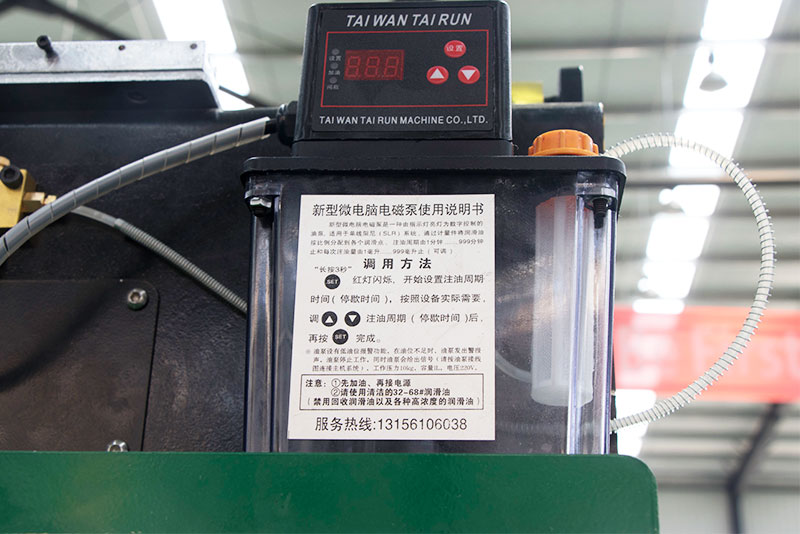

Lubrication
