1325 Two Head Machine Engrave on MDF

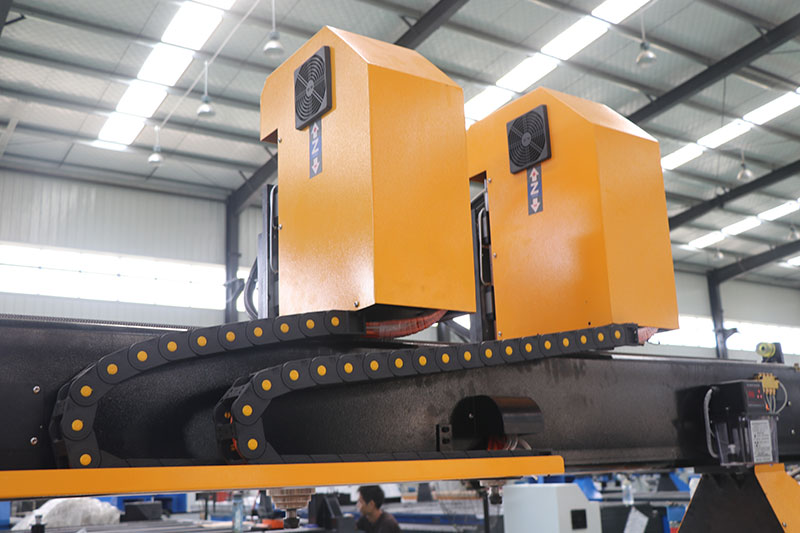

Double 6kw Water Cooling Spindles 1325

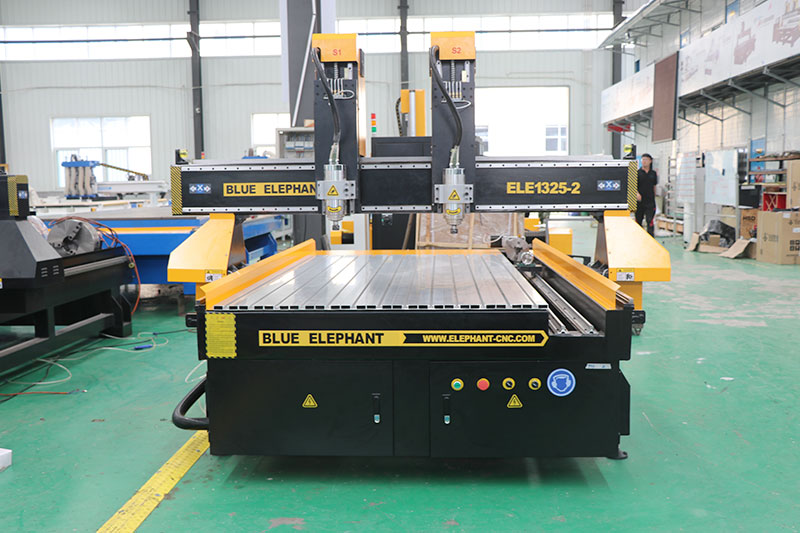

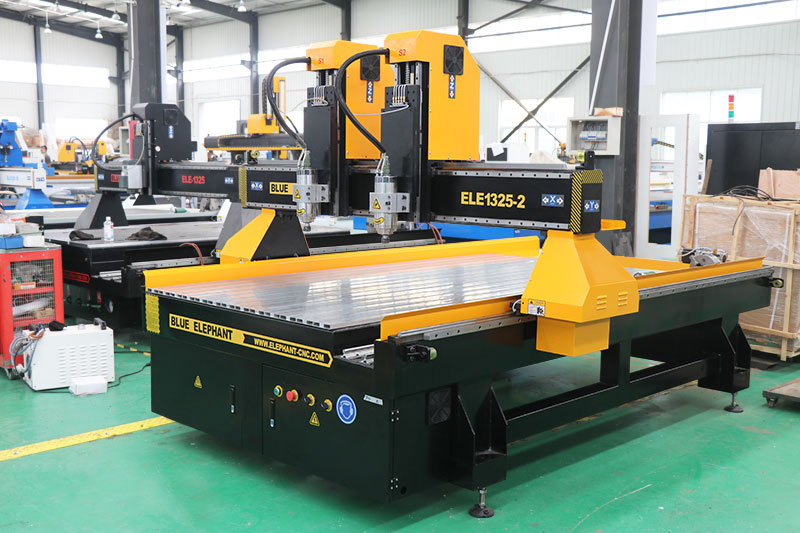

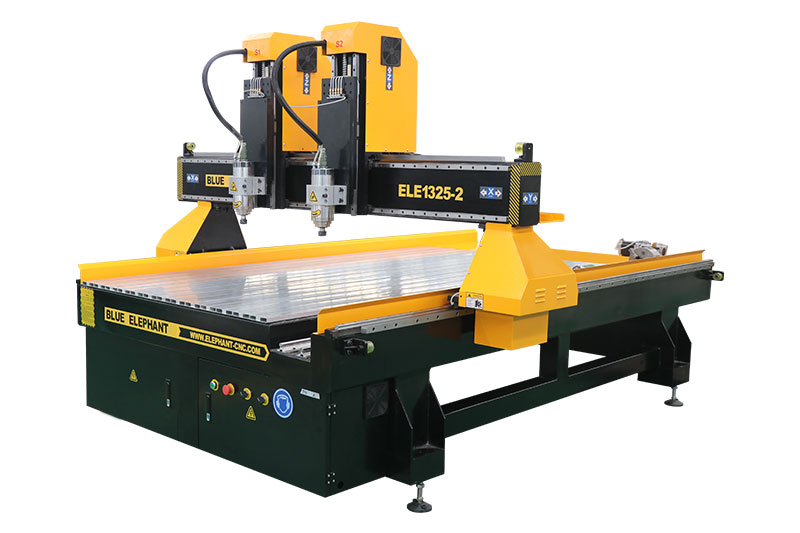

This is an independent double-headed multi spindle CNC machine with two independent spindles. The two spindles can work independently or simultaneously, which can greatly improve processing efficiency.
1. Designed with casting iron frame, it can ensure the structure stability.
2. Designed with rotary device, and its length and dimension can be made just according to your actual need.
3. Adopting advanced controlled system, while with simple operating software, so it is easy to learn.
4. Humanized design, it is convenient to remove and install.
| Model | ELECNC1325-2 |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3kw water cooling spindle; 4.5kw for optional |
| Inverter type | 3.7kw |
| Control system | Mach3controller,option：DSP |
| Driving system | Stepper motors FL118 and Leadshine 860H drivers, 4 sets. option: 750W Leadshine easy servo motors and drivers |
| Machine structure | Heavy duty body |
| Work table | T-slot working table; Option: vacuum table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |

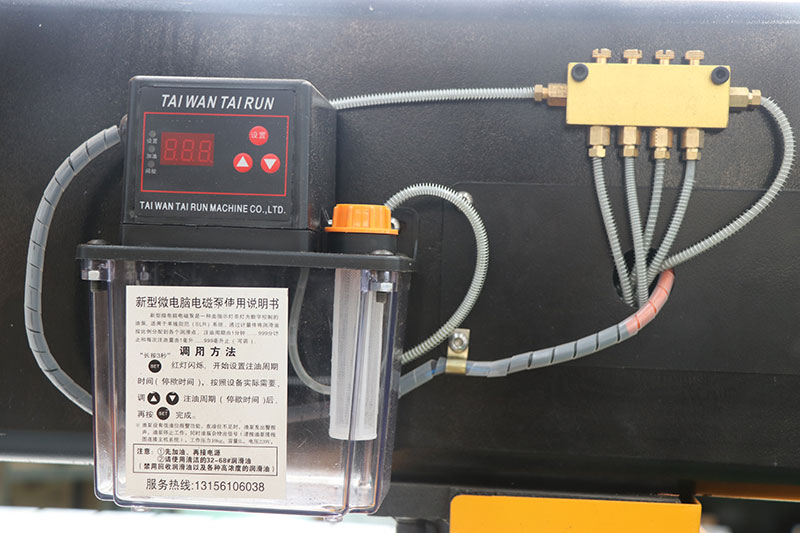

| Lubrication system | Manual lubrication system, option: automatic lubrication system |
| Tool calibration | Manualtool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 25m/min |
| Re-positioning accuracy | ±0.08mm |
| Working accuracy | ±0.1mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Spindle type | Air cooled spindle 3kw, 4.5kw, 5.5kw |
| Cooling system | Water mist cooling device; Oil mist cooling |
Click for details
Towline
Pump

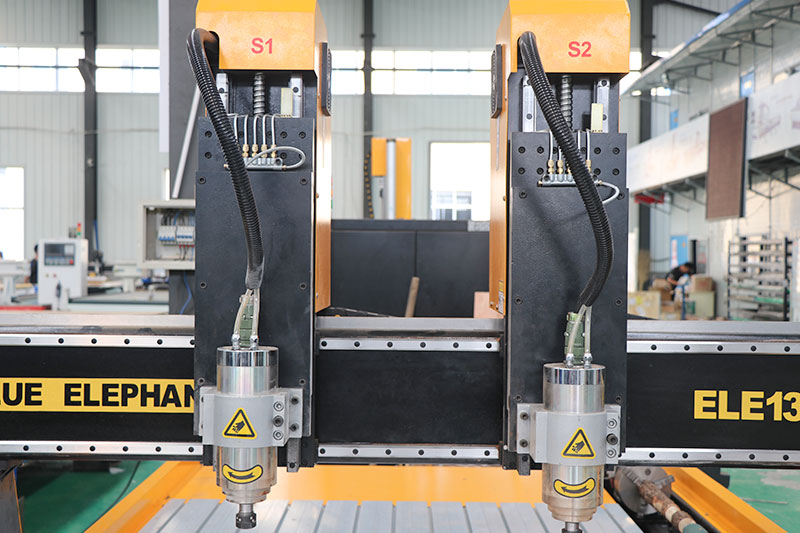

Spindle

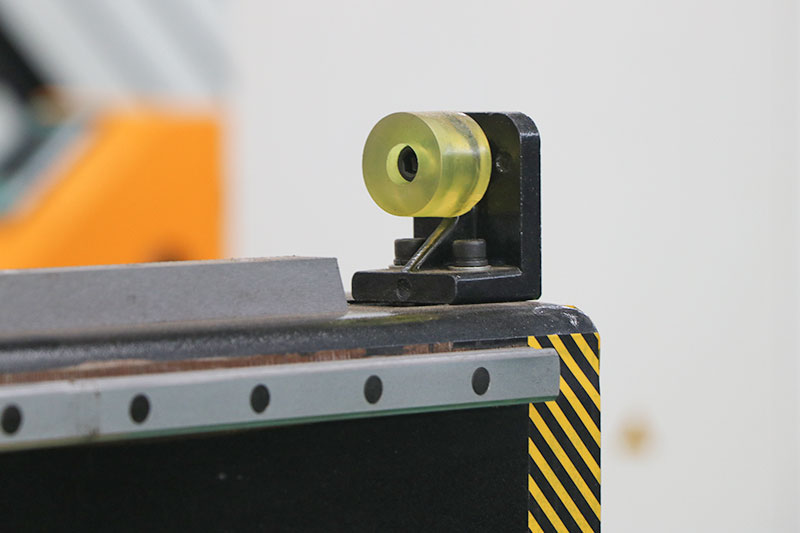

Limit switch
Click for solution
Click for quotation
Great. I have all my equipment up and running. I have been very happy with the new machines. Your company did a very good job. Thank you. Actually I am considering buying more. I know that there is a problem getting shipping containers though. I want to buy more of the 5x10 just like the one that I purchased.
I’m just setting the machine in place. Machine looks good. I ran some tests, and it is running well, nest test hardwood.
Machine is here, arrived on Wednesday. We assembled it yesterday and everything seems ok. And now I will try to use. I really like it. Thank you!
Received... It's installed and operational. The router is working without problems. what a great satisfaction with the result obtained. We are very satisfied with the machine. We count on your support as usual.
