1530 Multi Head Wood CNC Machine
2040 Two Spindle Woodworking Machine

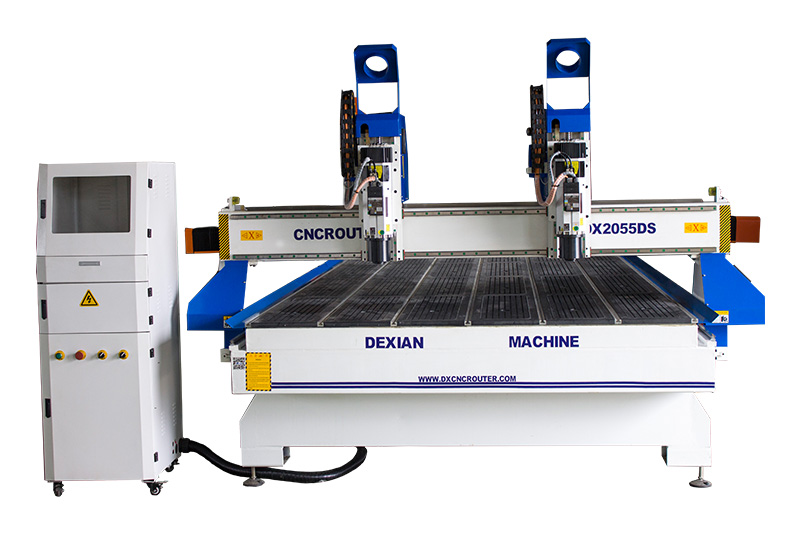

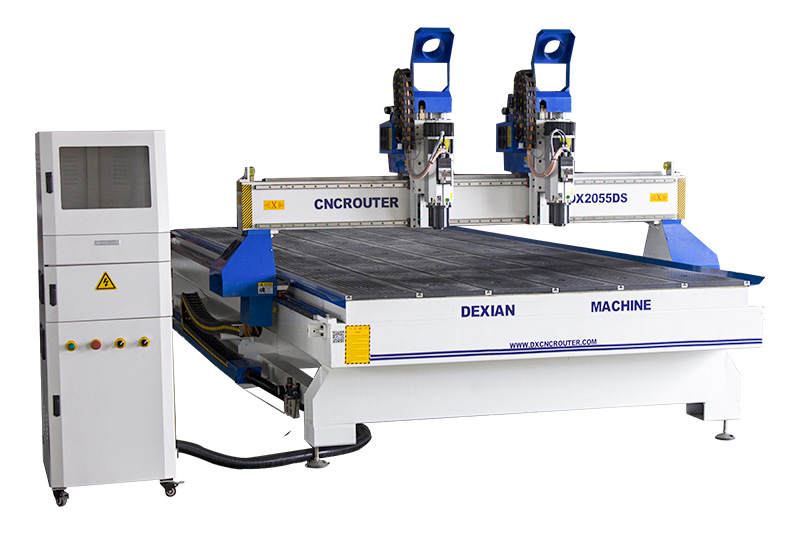

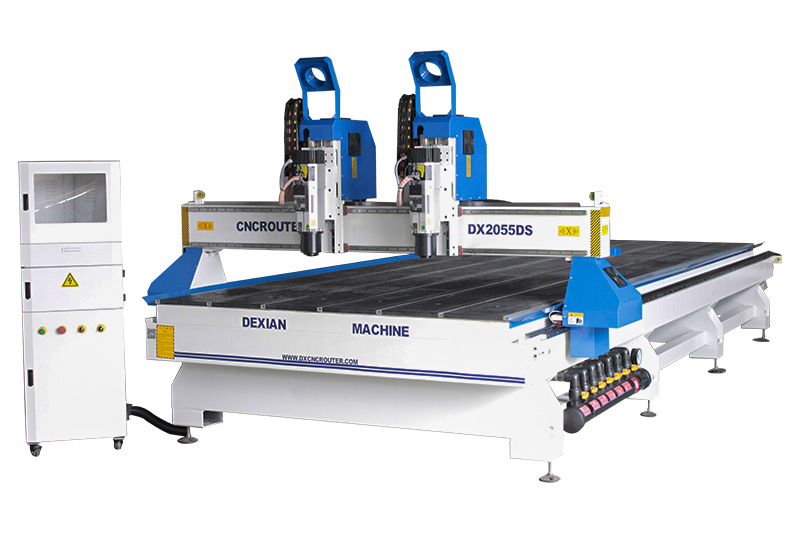

This is a multi head CNC machine with 2 spindles. The 2 spindles can only work together for the same or symmetrical work, which greatly saves the time for mass production and also improves the production efficiency.
1.Designed with an ATC spindle, when changing tools, it just needs to change tool holders, which saves much time for different processing.
2.The distance between the spindle is fixed and cannot be adjusted, which is the best choice for mass production.
3.Adopts the important linear square orbit, which has the features of stable working, high precision, and long lifetime.
All parameters can be customized according to the customers’ processing requirements like working area.
| Model | ELECNC2055-2S |
| X,Y axis travel | 2000x5500mm, option: 1300*2500mm; 1500*3000mm; 2100*3000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | 3*9kw HSD ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 5.5kw |
| Drilling bank | Taiwan or Italy 5+4 vertical drills |
| Tool magazine | Linear type auto tool changer Option: Carousel type auto tool changer |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | Nc studio-PM53C controller, option: Taiwan SYNTEC/LNC |
| Driving system | 850w YASKAWA servo motors and drivers, 6sets. Option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | 5 pieces (X2, Y3) |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool calibration | Manuel tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63), 12kw (ISO30, HSK F63), etc |
Click for details

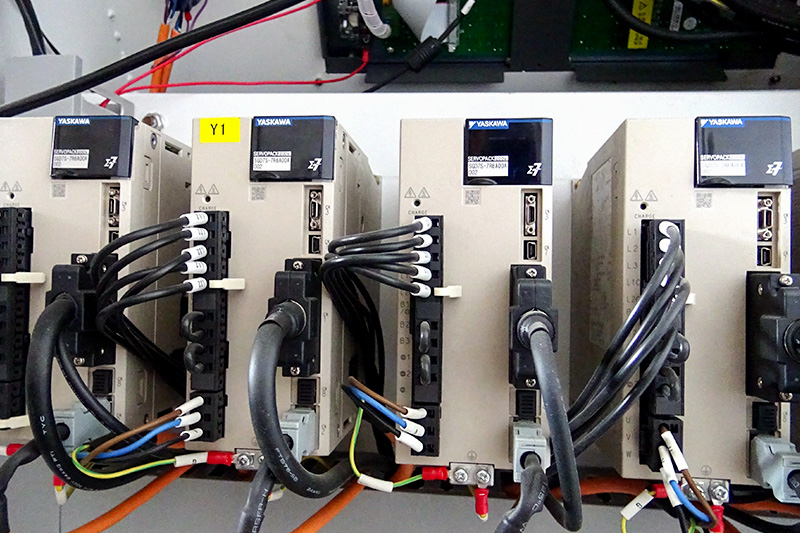

Servo Drives

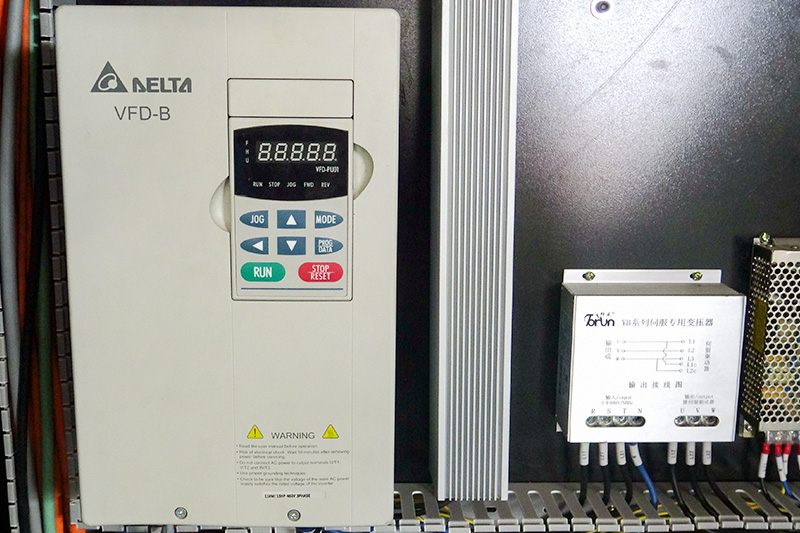

Delta Inverter

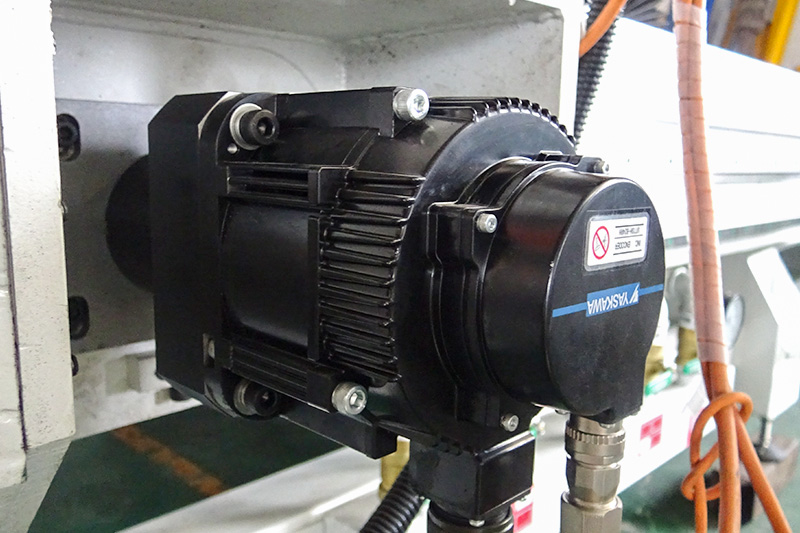

Servo Motor

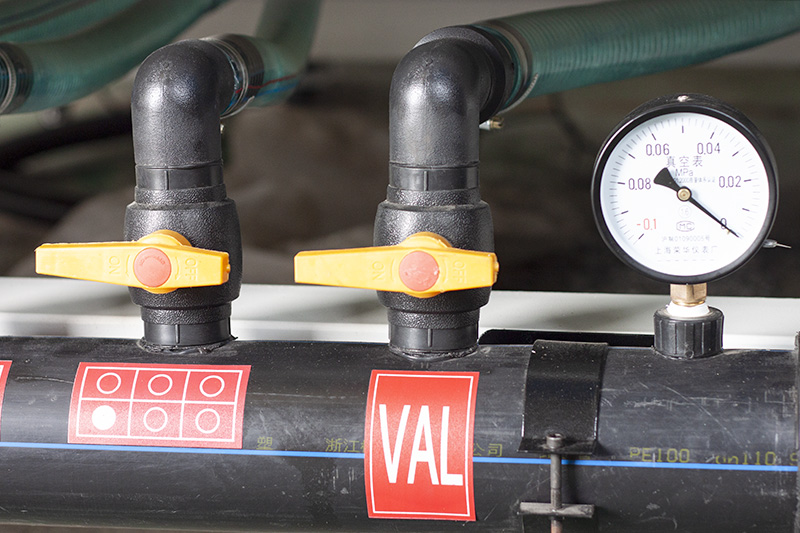

Valve
