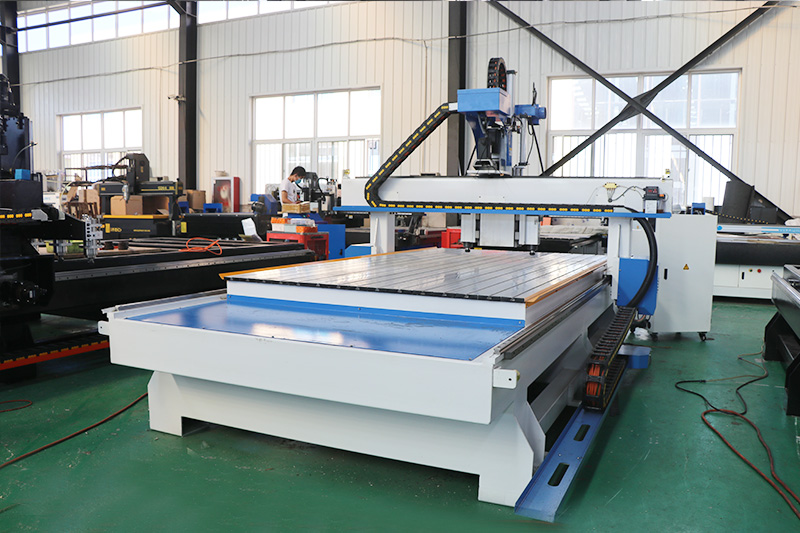

1325 4*8 Two Head Rotary Axis Machine
1325-3s Rotary CNC Machien on MDF

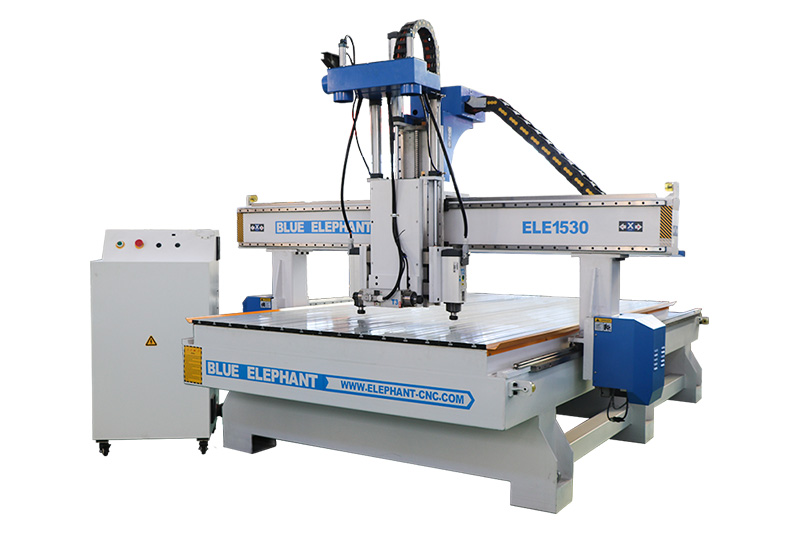

This multi head CNC router with three spindles can work independently to promote the working efficiency. And the amount of spindle can be customized according to your processing requirements.
1. Equipped with two sets of HSD air cooling spindle and one set of Changsheng spindle.
2. Designed with double heads, and horizontal, the machine has a powerful processing ability.
3. Equipped with Lead shine servo motor and driver, it is simple to use and easy to operate.
4. Please notice that all the specifications can be customized according to your own actual situation.
| Model | ELECNC1530-3S |
| X,Y axis travel | 1500x3000mm, option: 1300*2500mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, 600mm, etc |
| Spindle type | Vertical spindles：3kw Italian HSD air cooling spindle×2set, 18000RPM Horizontal spindle: 3.5kw ChangSheng water cooling spindle, with double head, 18000RPM |
| Inverter type | 3.7kw Taiwan DELTA |
| Control system | DSP A15 handle controller |
| Driving system | 750W Leadshine easy servo motors and drivers |
| Machine structure | Heavy duty body more thicker and stronger |
| Work table | Aluminum T-slot work table |
| Linear guide | Taiwan linear guide 25# |
| Transmission | X,Y axis: Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code |
| Traveling speed | 30m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.05mm |
| Working accuracy | ±0.05mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Dust collect system |
|
| Air compressor | 7.5kw air compressor |
| Spindle type | Italian HSD 4.5KW, 6KW, 7KW Economic: Chinese HQD 4.5kw, 6KW, 7KW |
Click for details

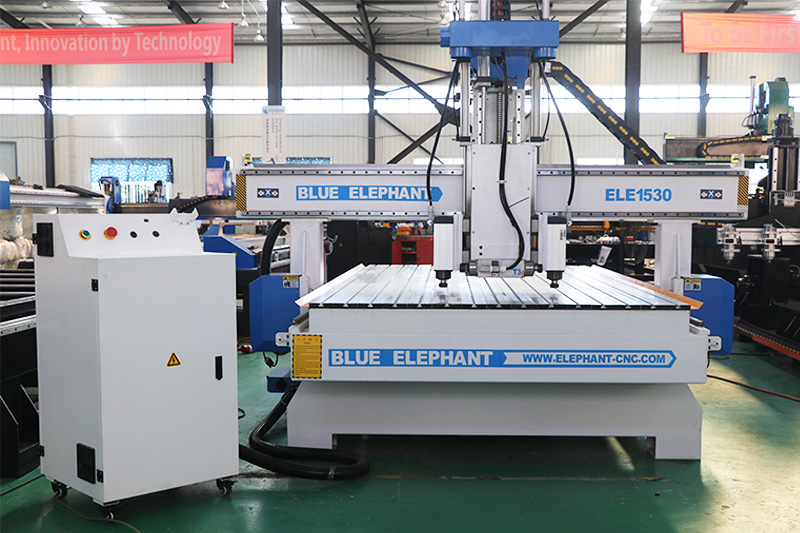

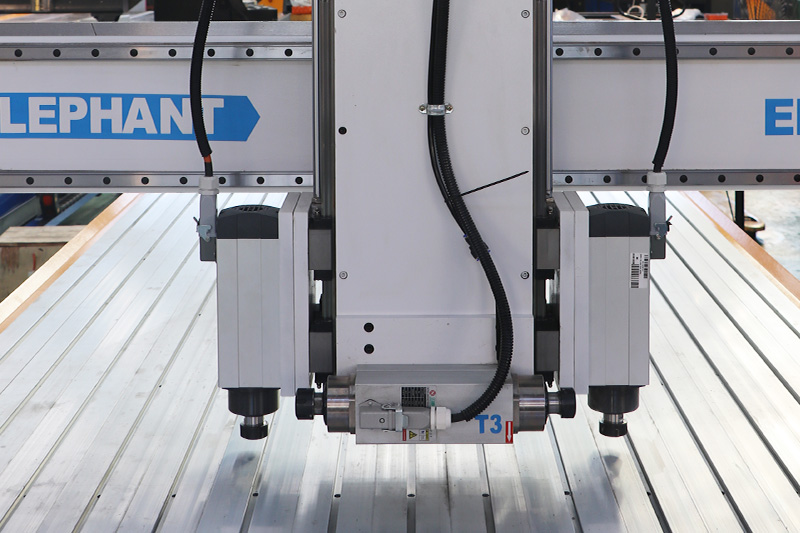

Two Spindles

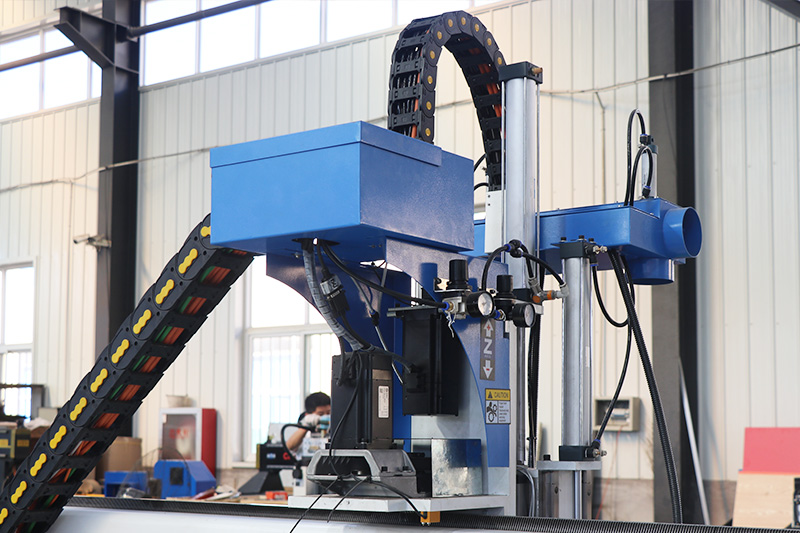

Lifting Cylinder

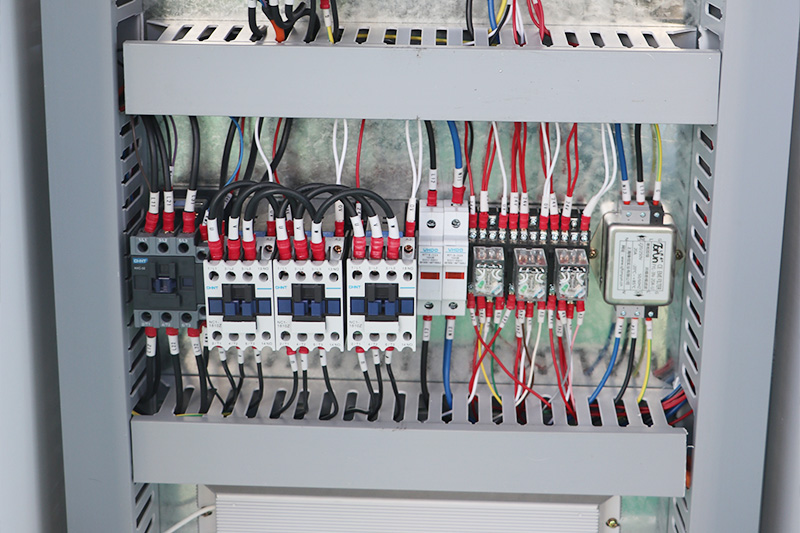

Internal Components

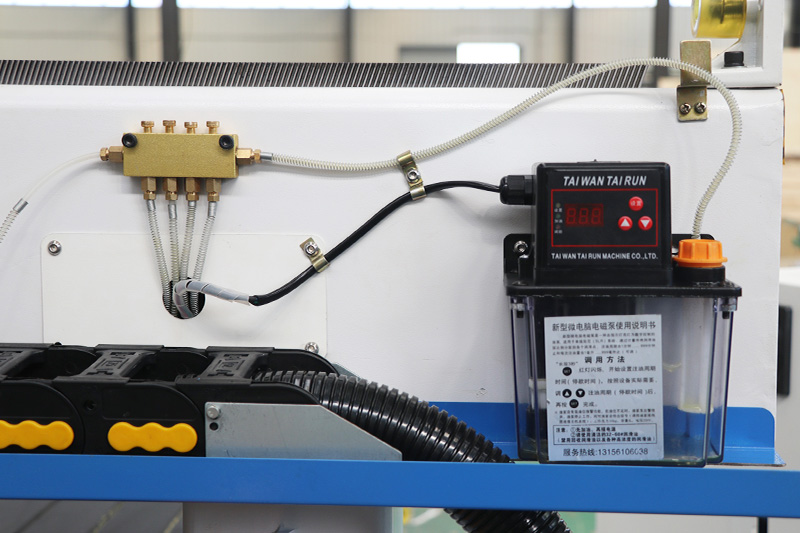

Automatic Lubrication System
Click for solution
Click for quotation
The one we already got from you is working great and we’ve made lots of money with it. Now I need another cnc router can work with 5*10ft sheets. I will reach out again in about a month when we have made a decision. I will made second purchase from Blue Elephant for sure.
Due to the machine finished testing before shipping, I only connect with some electric cables and do few parameters setting. The machine can be working. I have deeply impression into faster installation. I made some simple test, the machine is running more faster and smooth, without vibration. This is exactly what I was expecting.
During operation the machine, i faced some technical issues. The salesman setup the service group via whatsapp. Blue Elephant engineers help me step by step, until I am totaly understand. Thanks for their patient and passionate help. I think that’s the most important reasons for more and more clients choose Blue Elephant.
We are happy with machine work. You know we are a government institution doing research in robotics cnc build some parts to our robots. We really like the machine performance.
