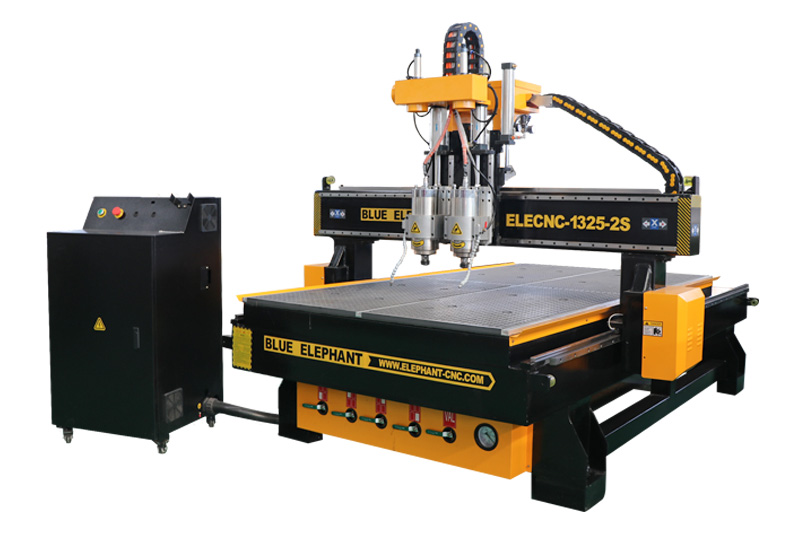

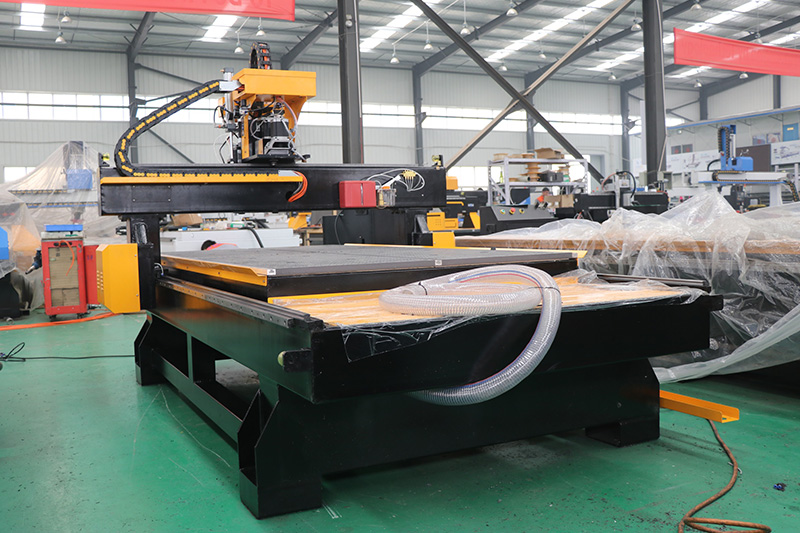

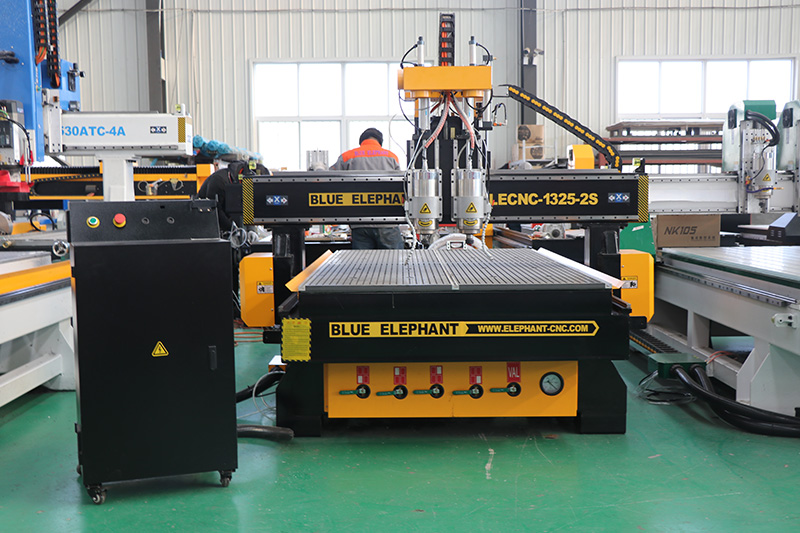

1325 Multi-head CNC Machine
1325 Two Head Machine Engrave on MDF
This is a multi-spindle engraving machine with two spindles. The two spindles can complete processing independently, so more flexible processing is realized. The two spindles can also work at the same time, which greatly improves the processing efficiency.
1. Equipped with two spindles, which can work independently to promote the working efficiency.
2. Adopting DSP control system, it is easy to learn and master.
3. With new type thicker and bigger heavy duty welded frame and gantry, the machine is more durable.
4. We provide customized services and full sets of teaching videos for all users.
| Model | ELECNC1325-2S |
| X,Y axis travel | 1300x2500mm, option: 1500*3000mm; 2000*3000mm; 2000*4000mm, etc |
| Z axis travel | 200mm, option: 300mm, 400mm, 500mm, etc |
| Spindle type | 3kw Watercooling spindle* 2 sets, ER20 |
| Inverter type | 3.7kw* 2sets |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Control system | DSP A15 Options：Ncstudio/NK105 |
| Driving system | Stepper motor and leadshine driver |
| Machine structure | Heavy dut ybody with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Linear guide | Taiwan linear guide |
| Transmission | X,Y axis: Taiwan /Germany Helical Rack and Pinion Z axis:Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 30m/min |
| Working speed | 0-20m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working air pressure | 0.8MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 4.5KW, 5.5KW, 6KW |
Click for details

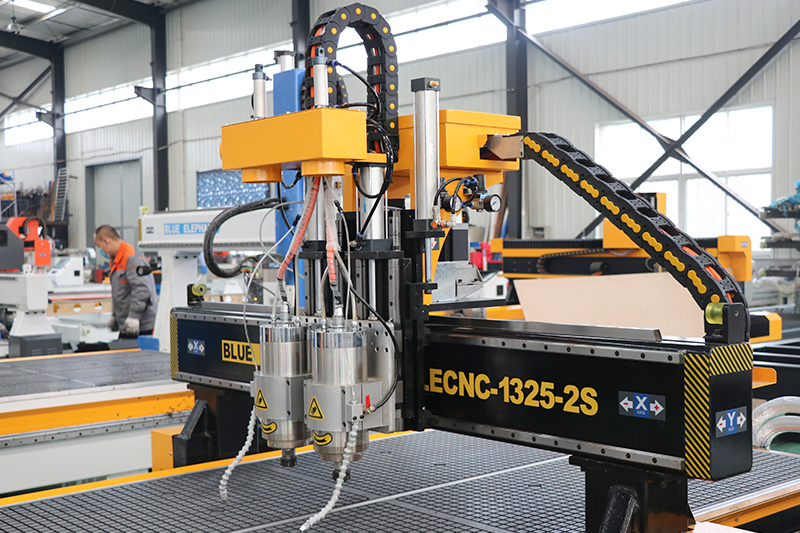

Water cooling spindles

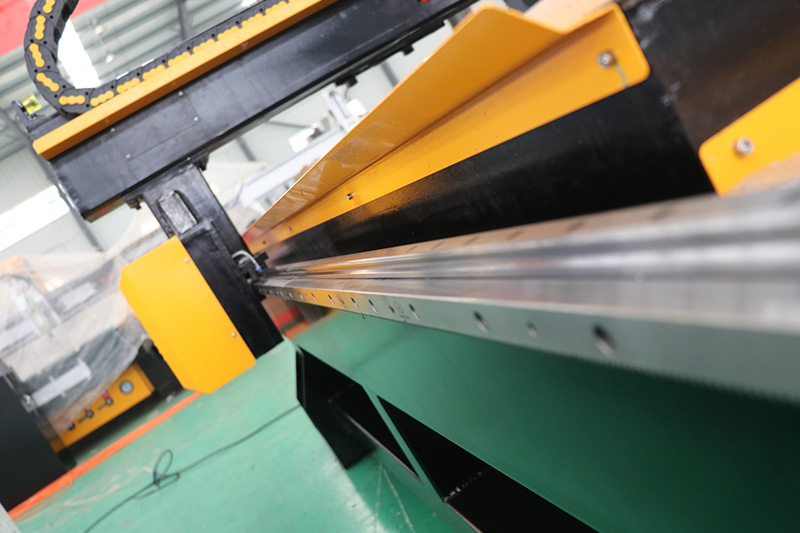

Linear guide

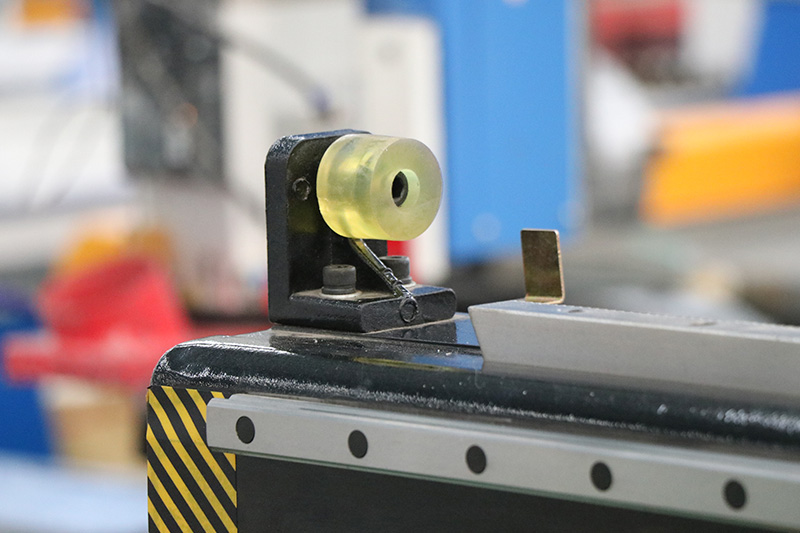

Limit switch

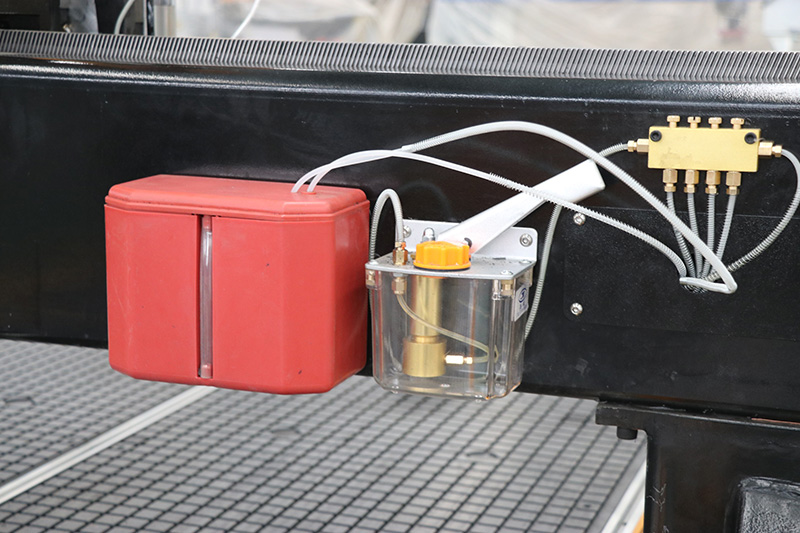

Manual lubrication system
