5 Axis CNC Machining Center with Moving Column Gantry
2040 Foam 5 Axis ATC CNC Maching Center for Sale

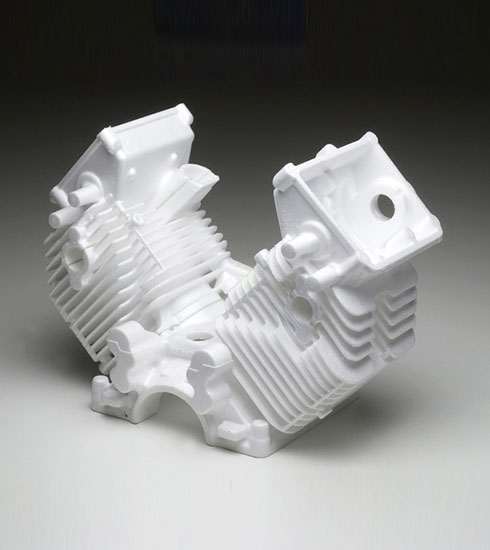

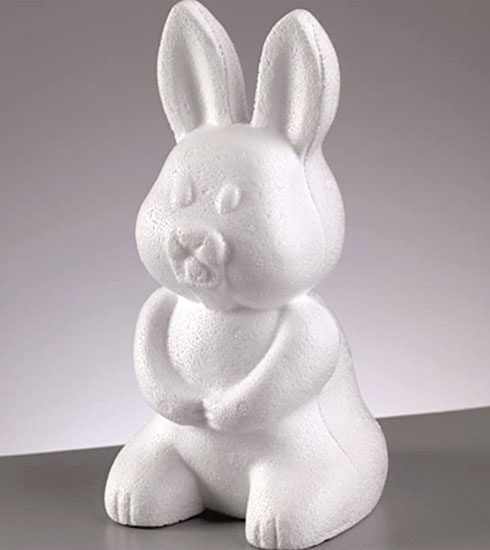

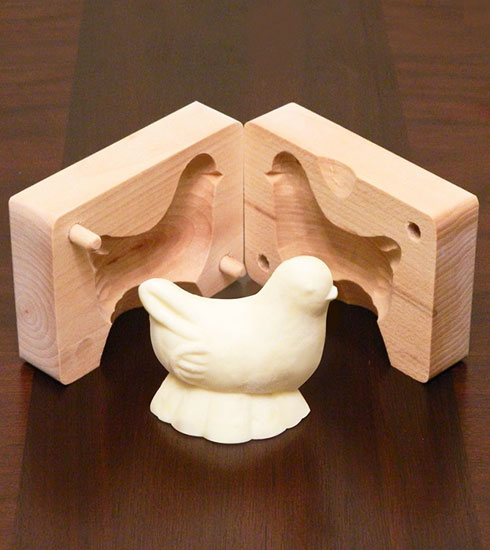

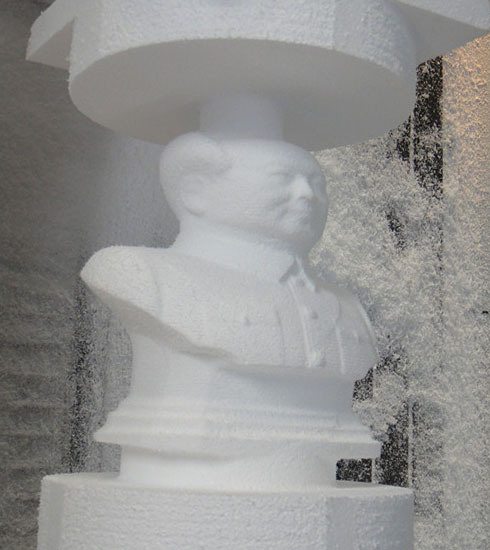

The moving column gantry 5 axis CNC machining center adopts a dynamic column structure. That means the workpiece is fixed on the workbench, and the column and gantry move along the direction of the bed. Therefore, it can provide larger processing space and higher stability. And it is widely used for processing foam and wood in mold manufacturing industry.
1. The moving column gantry 5 axis CNC machining center has a large working table, which is suitable for processing large workpieces and 3D molds.
2. The dynamic column structure provides larger processing space. So it can achieve high-precision and complex surface processing, improve production efficiency and reduce the need for manual operations.
3. The moving column gantry 5 axis CNC machine allows the workpiece to be accurately machined in five different directions without re-clamping the workpiece. It greatly shorten the processing cycle and reduce material waste.
4. The moving column gantry 5 axis CNC machining center is widely used in aerospace, automobile manufacturing, mold manufacturing, etc. It is one of the indispensable and important equipment in modern manufacturing industry.

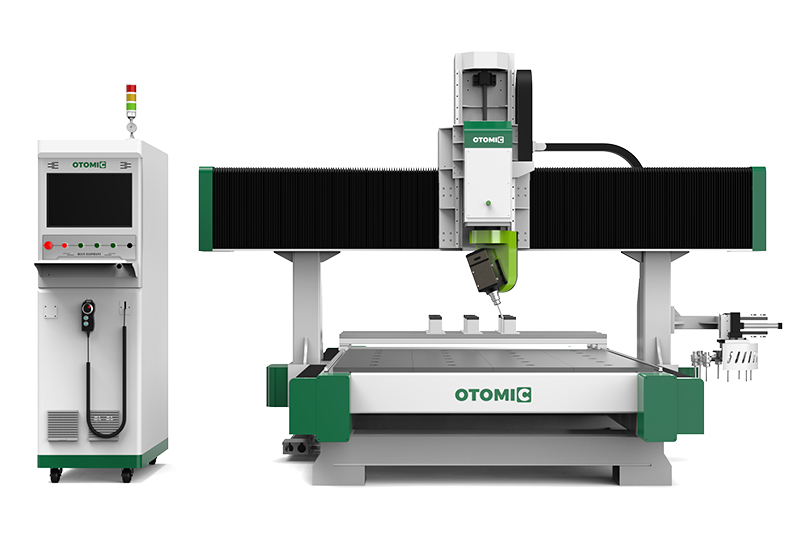

| EW3 Moving Column Gantry 5 Axis CNC Machining Center | |
| X, Y, Z axis travel | X axis：1300-2000mm |
| Y axis：2000-6000mm | |
| Z axis：300-600mm | |
| Spindle | HITECO 10KW/Changchuan 14KW |
| 5 axis cutting head | HITECO/LX500 |
| Tool magazine | Carousel tool changer with 8pcs HSK F63 |
| Inverter | 15kw Delta inverter |
| Control system | SYNTEC 610-E5 5 axis control system with RTCP functions |
| Driving system | X axis 1.3kw; Y axis 1.3kw*2; Z axis 1.8kw Japan YASKAWA servo motors |
| Work table | T-slot & Vacuum working table |
| Linear guide | X, Y axis: Taiwan 35# |
| Z axis: Taiwan 30# | |
| Reducer | Japan SHIMPO *3 |
| Water cooling system | Water cooler |
| Cables | Germany Igus cables with CE, cUL certificate |
Click for details

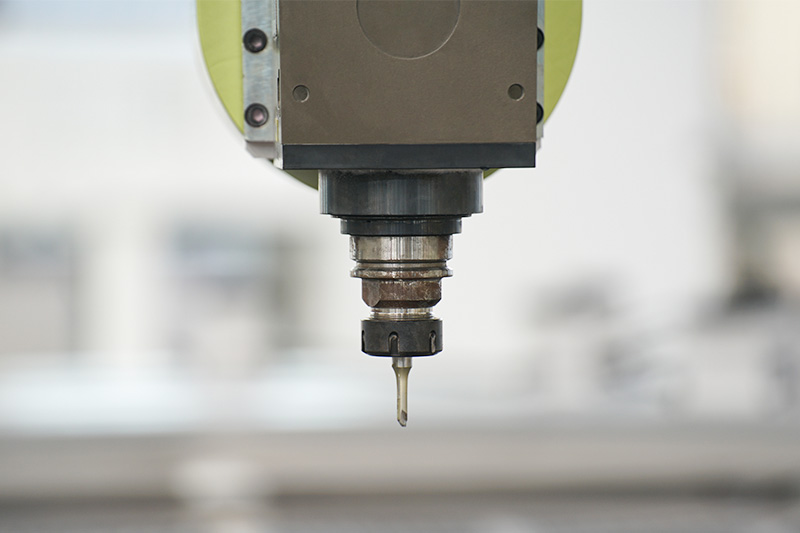

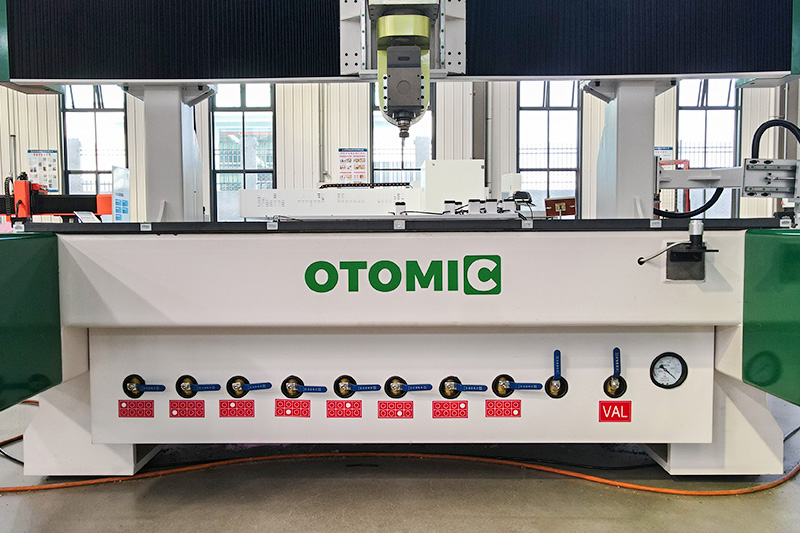

Moving Column Gantry 5 Axis CNC Machining Center Part

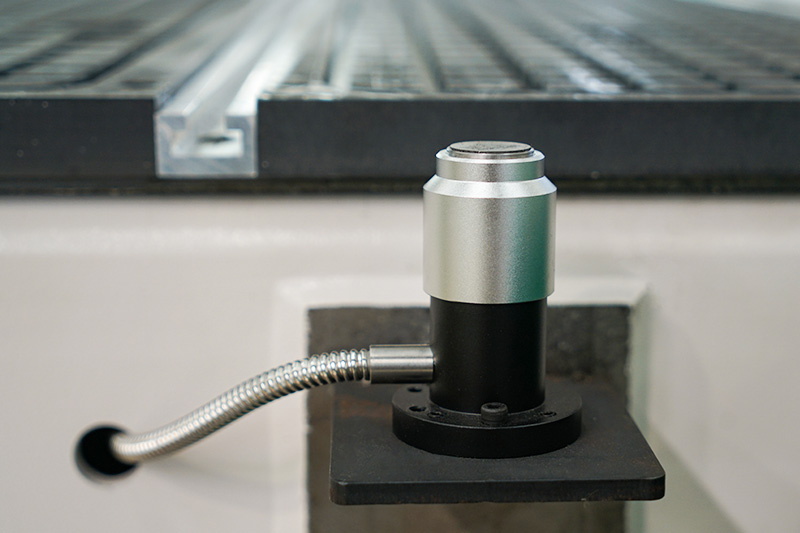

Moving Column Gantry 5 Axis CNC Machining Center Part

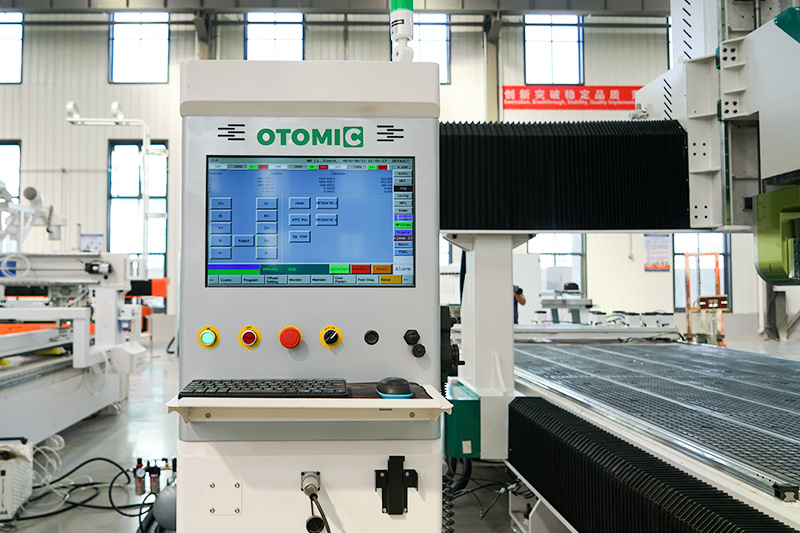

Moving Column Gantry 5 Axis CNC Machining Center Part

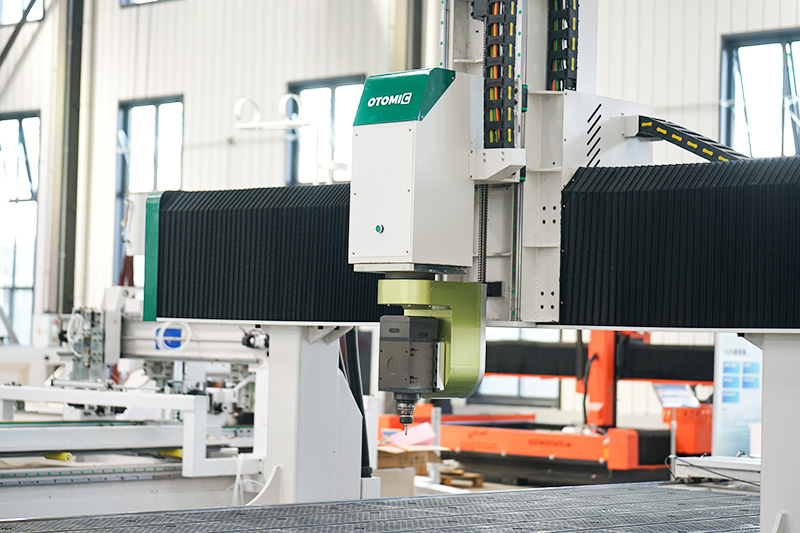

Moving Column Gantry 5 Axis CNC Machining Center Part
