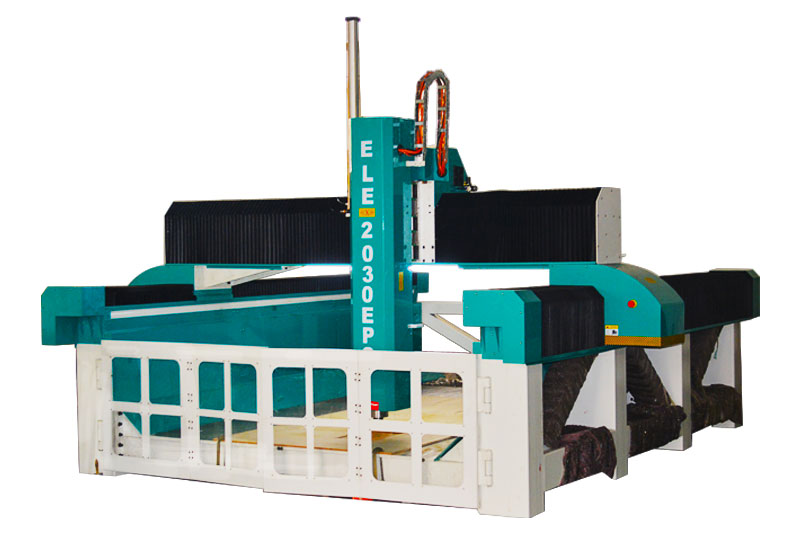

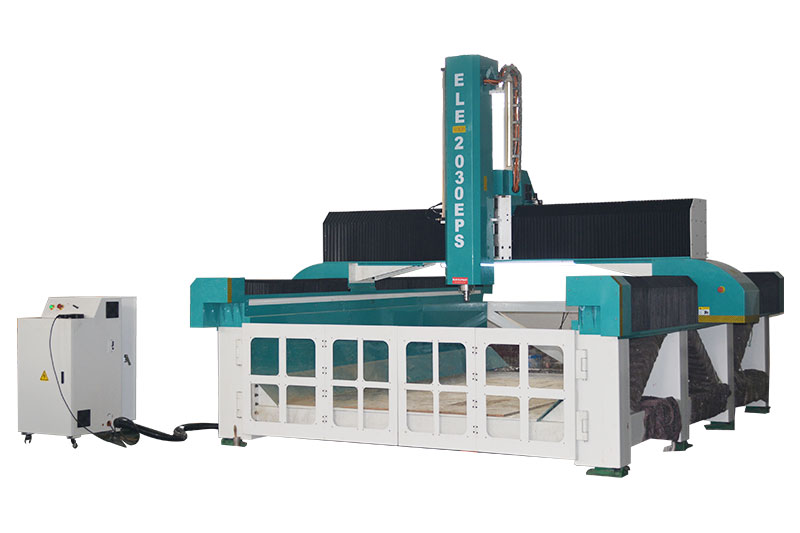

5 Axis XPS Foam CNC Machining Center

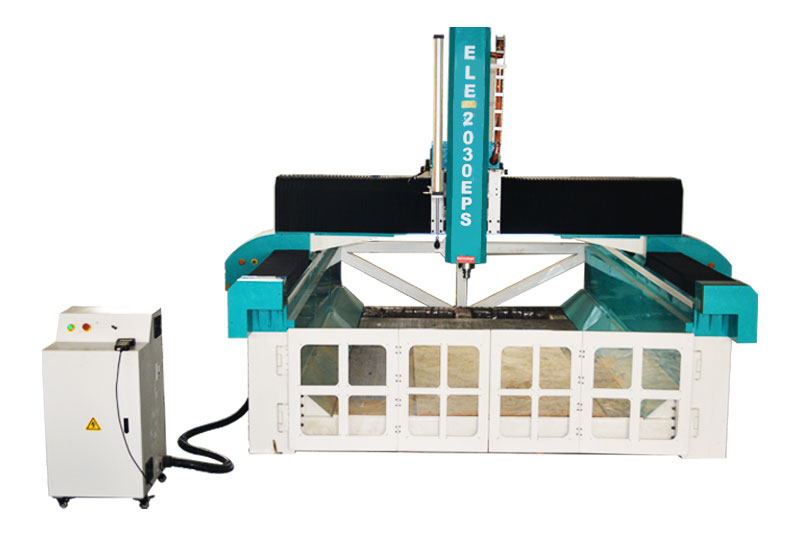

1530 EPS Foam CNC Engracing Machine
This CNC foam carving machine is fixed with screws, and the whole structure is tested to the limit for sturdiness and reliability. And this 3d cnc foam milling machine is the first choice for large workpieces.
1. Adopting 7.5kw Changsheng water cooling spindle, it can guarantee maximum processing efficiency and productivity.
2. The working size can be increased according to your special requirements.
3. Fixing with screws, the whole structure is tested to the limit for sturdiness and reliability.
4. With NK 105 controller and hand wheel guide, it has the features of break point resume, tool selection process, and high precision.
| Model | ELECNC2030 EPS |
| X,Y axis travel | 2000x3000mm, option: 1500*3000mm; 2100*3000mm; 2100*4000mm, etc |
| Z axis travel | 800mm, option: 900mm, 1000mm, etc |
| Spindle type | 7.5KW water cooling spindle |
| Inverter type | 7.5kw Fuling Inverter |
| Control system | Weihong NK105 controller with hand wheel guide |
| Driving system | 850KW YASKAWA servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot work table with PVC Protection |
| Linear guide | Taiwan linear guide with dust proof |
| Transmission | X,Y axis: Taiwan / Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Manual lubrication system |
| Tool calibration | Manual tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Type 3, Ucancam, Aspire, etc |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-45m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.03mm |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Working area | 1300*2500*200mm |
| Spindle | 7.5kw water cooling spindle |
| Inverter | Taiwan DELTA inverter |
| Table surface | Vacuum T-slot working table |
| Vacuum pump | 7.5kw water type circulation vacuum pump |
| Lubrication system | Manually |
| Tool sensor | Automatic tool sensor |
| Dust collector | New type double bags dust collector 5.5kw |
Click for details

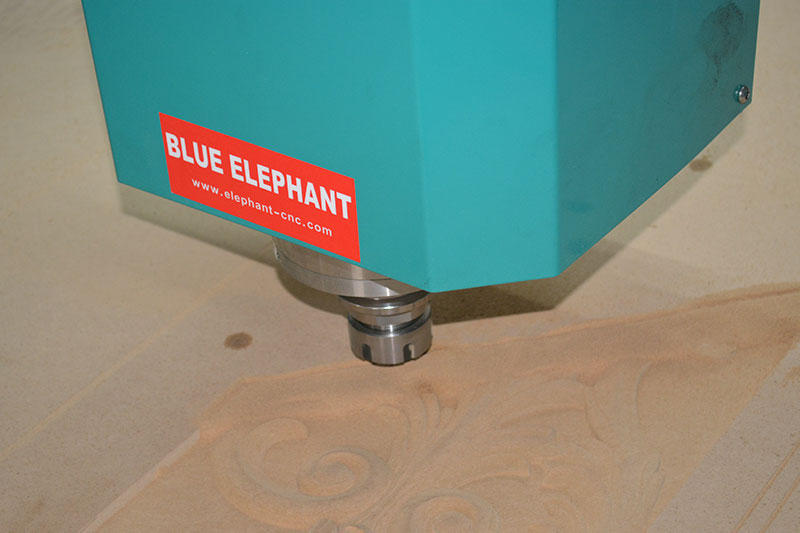

Spindle
Linear guide

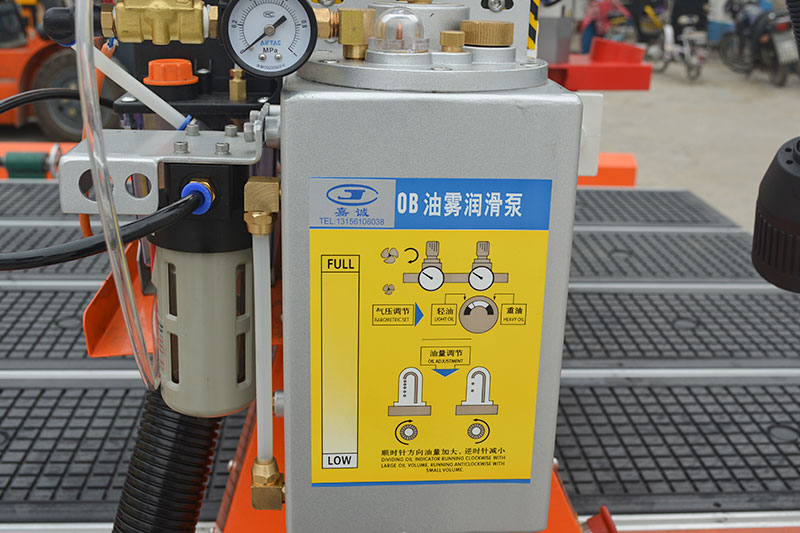

Oil mist lubrication pump

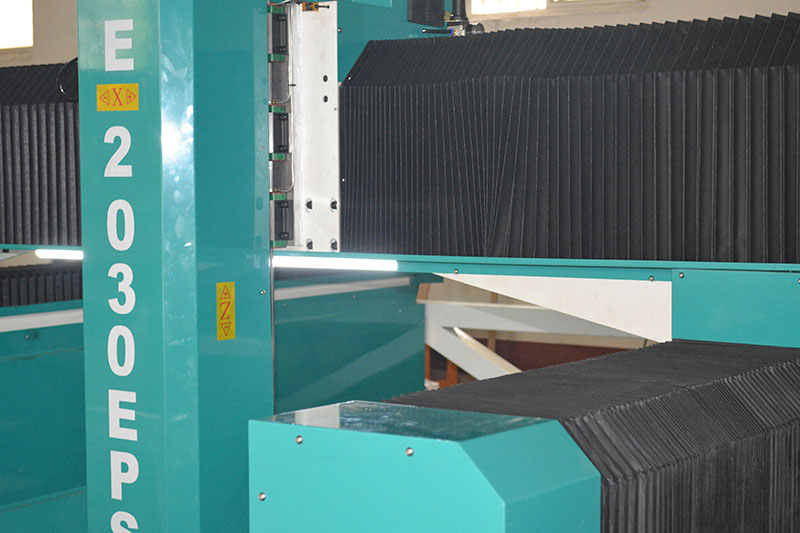

z axis
