1530 ATC 4 Axis CNC with Rotary Device
1325 ATC 4 Axis CNC with Rotary Device

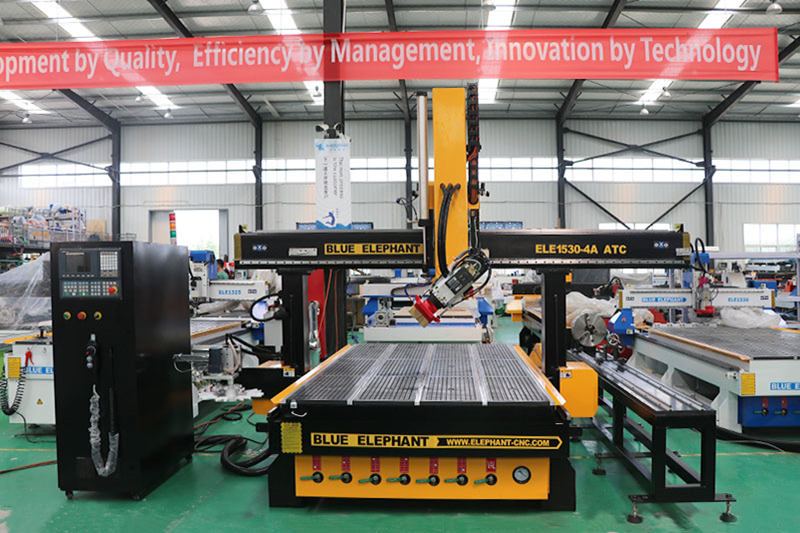

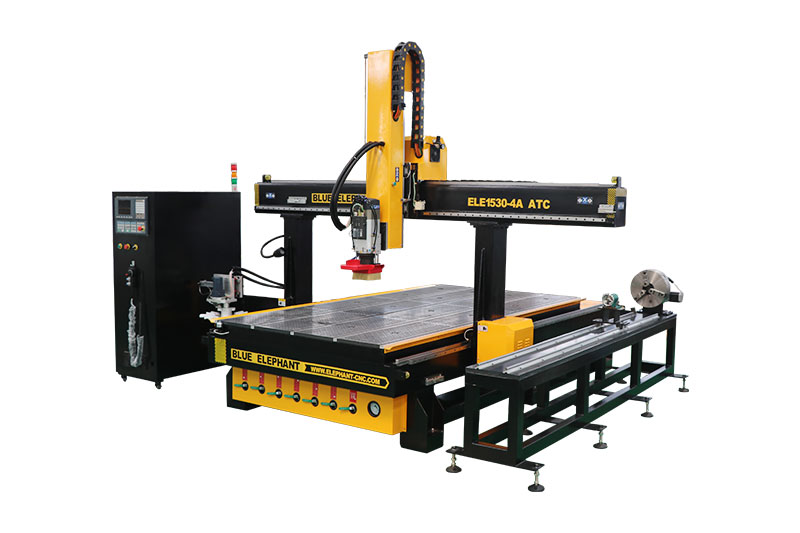

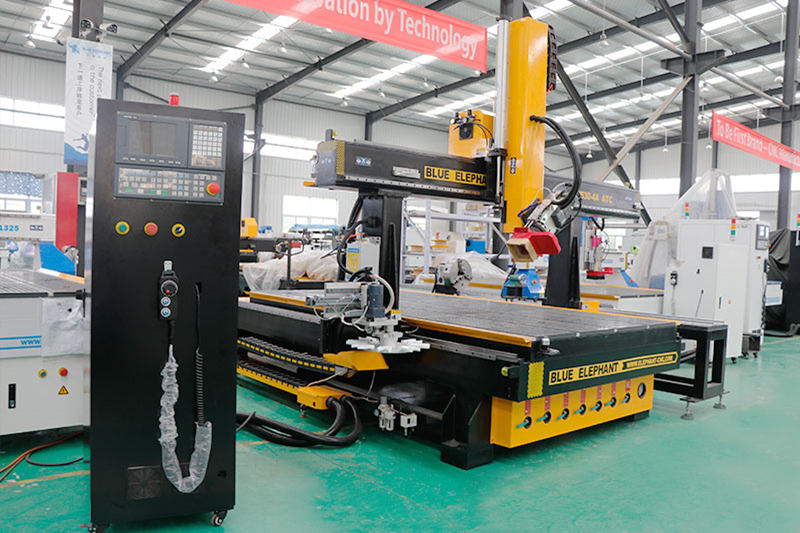

ELECNC-1530 5x10 ATC CNC router with rotary device is a combination of 4 axis CNC, ATC CNC and rotary device for wood carving and engraving. The automatic tool change function greatly saves manual tool changing time and increases work efficiency.
1. HSD air cooling spindle can swing 180 degrees and the speed of spindle can reach up to 24000RPM.

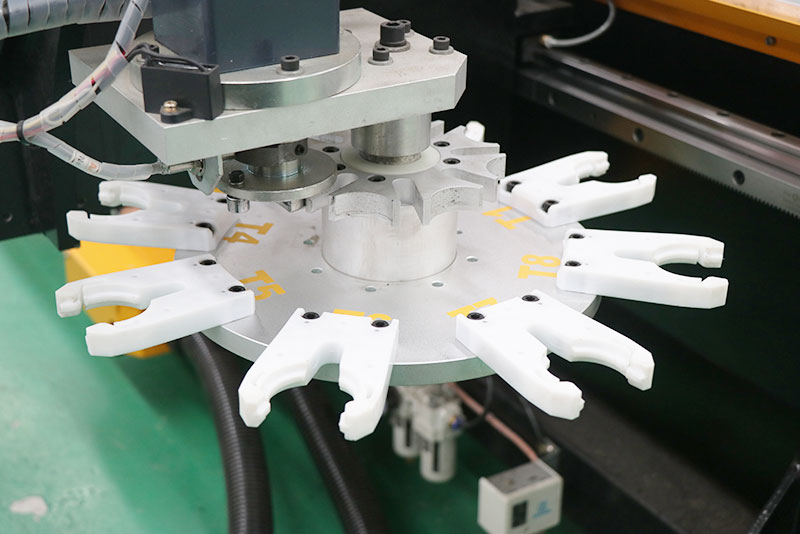

2. The Carousel type tool magazine can carry 8 sets of tools and manage to change tools automatically in the engraving process.
3. ATC CNC Router machine is suitable for making cabinet doors, wooden doors, solid wood furniture, panel wood furniture, windows, tables, chairs, and some others.
4. With larger sized worktable and processing area, the working efficiency can be greatly promoted.
5. Removable rotary device saves much more space and increases work flexibility.
| Model | ELECNC1530ATC-4A |
| X,Y axis travel | 1500*3000mm, option:1300*2500mm;2100*3000mm;2100*4000mm,etc |
| Z axis travel | 400mm, option:500mm,600mm,700mm,etc |
| Spindle type | 9kw ATC air cooling spindle, ISO30, ER32 |
| Inverter type | 11kw |
| The 4th axis | cycloidal pin wheel precision reducer，with high transmission accuracy and torsional stiffness can swing from -90 degree to +90 degree |
| Tool magazine | Carousel type auto tool changer Option: Linear type auto tool changer |
| Tool holder with collet | ISO30,ER32 collet:φ4,φ6,1/8,1/2 |
| Control system | Taiwan SYNTEC controller |
| Driving system | 1kw Japan YASKAWA AC servo driver and 850w AC servo motor,4 sets. option:1kw Taiwan Syntec servo |
| Reducer | Japan SHIMPO reducer |
| Machine structure | Heavy duty body with quenching treatment |
| Work table | Aluminum T-slot & vacuum work table |
| Positioning cylinder | Option: 5 pieces(X2,Y3) |
| Linear guide | Taiwan Linear guide |
| Transmission | X, Y axis: Taiwan /Germany Helical Rack and Pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | 1.5L automatic lubrication system |
| Tool Calibration | Automatic tool sensor calibration |
| Cables | Germany Igus cables with CE,cUL certificate |
| Compatible Software | Powermill,UG,Alphacam,Fusion 360,etc |
| Command Language | G Code & M Code |
| Traveling speed | 80m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working Accuracy | ±0.03mm |
| Working air pressure | 0.6MPa |
| Working voltage | 220V 1PH/3PH 50HZ/60HZ 380V 3PH 50HZ/ 60HZ |
| Vacuum pump |
|
| Dust collect system |
|
| Air Compressor | Piston air compressor, screw air compressor |
| Protection device | Light curtain |
| Spindle type | 9kw ATC spindle (HSK F63),12kw(ISO30,HSK F63),etc |

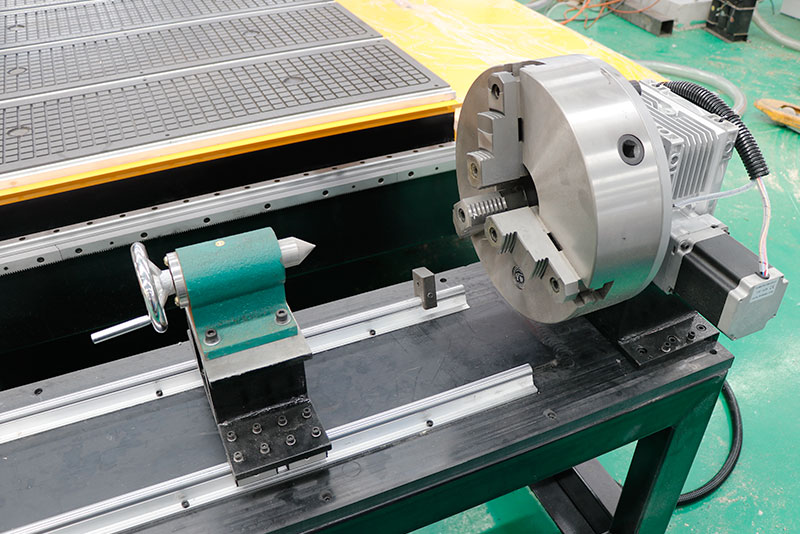

| Rotary device | Industrial-grade support of rotary device,diameter 200mm, 320mm. |
Click for details

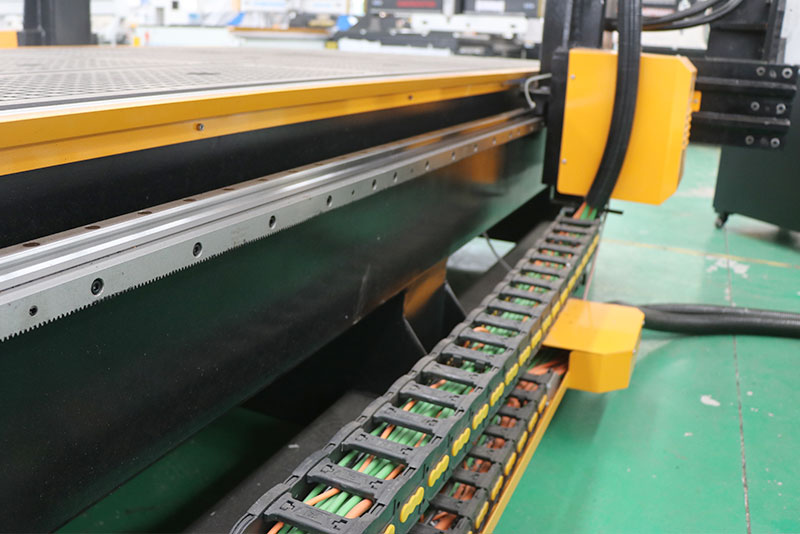

Rack
Tool Magazine

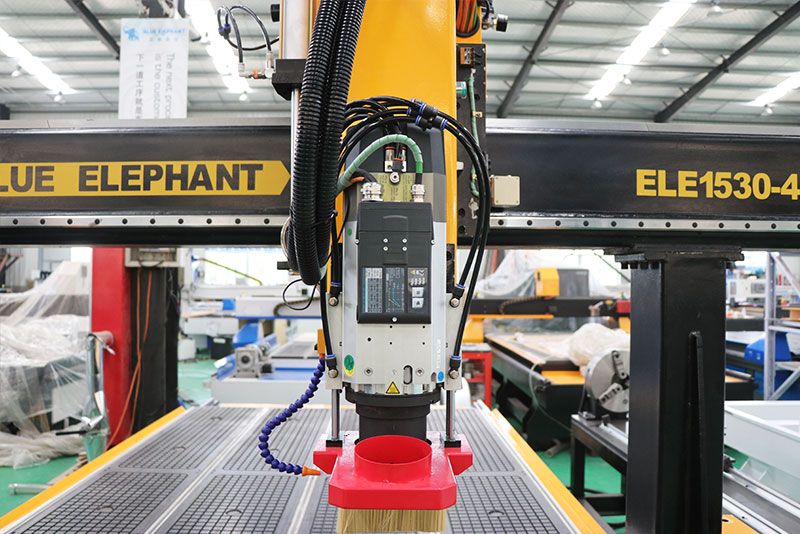

Spindle
Rotary Device
Click for solution
Click for quotation
