1325 Linear ATC Woodworking CNC Router
4x8 ATC CNC Woodworking Machine

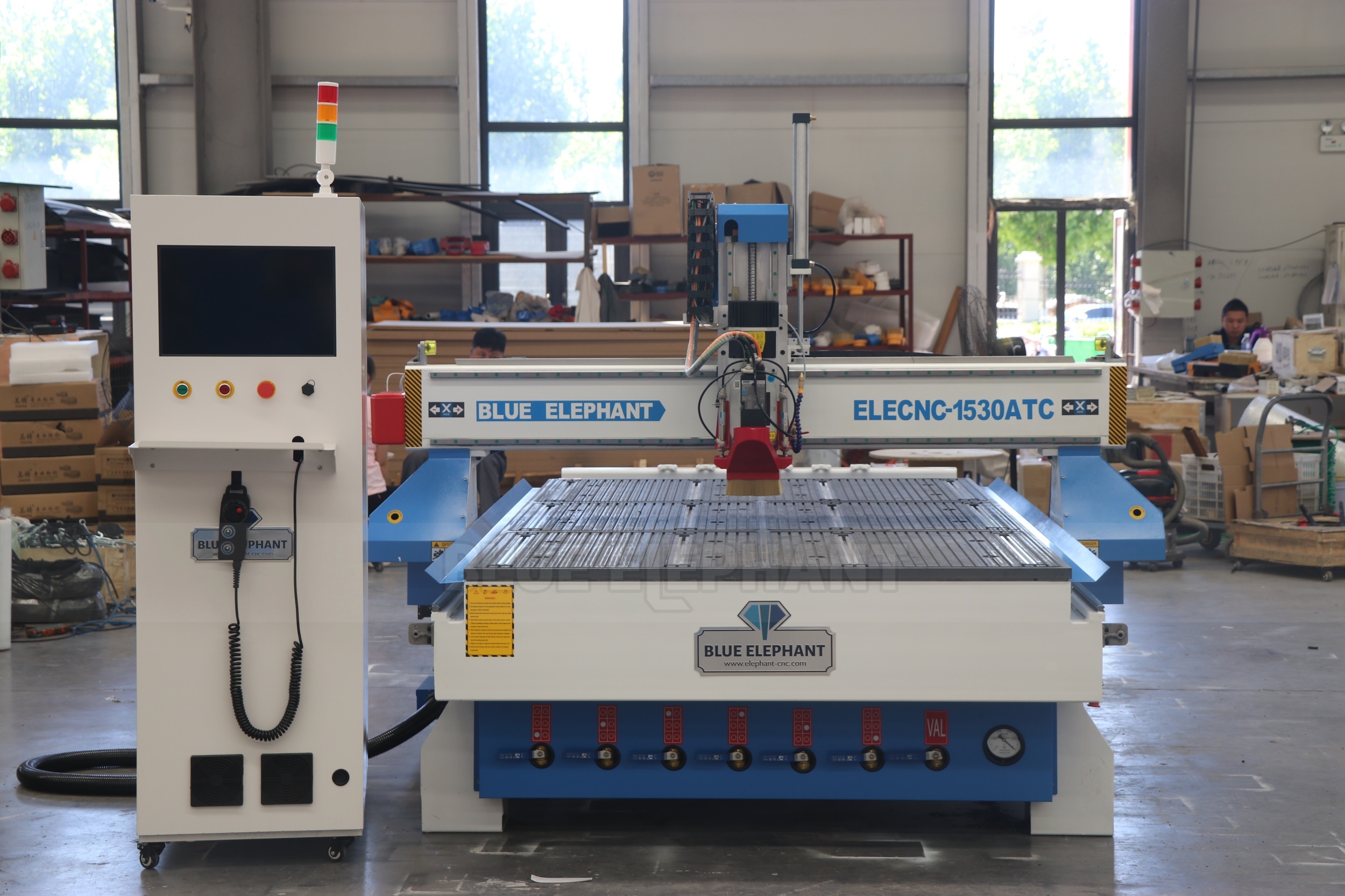

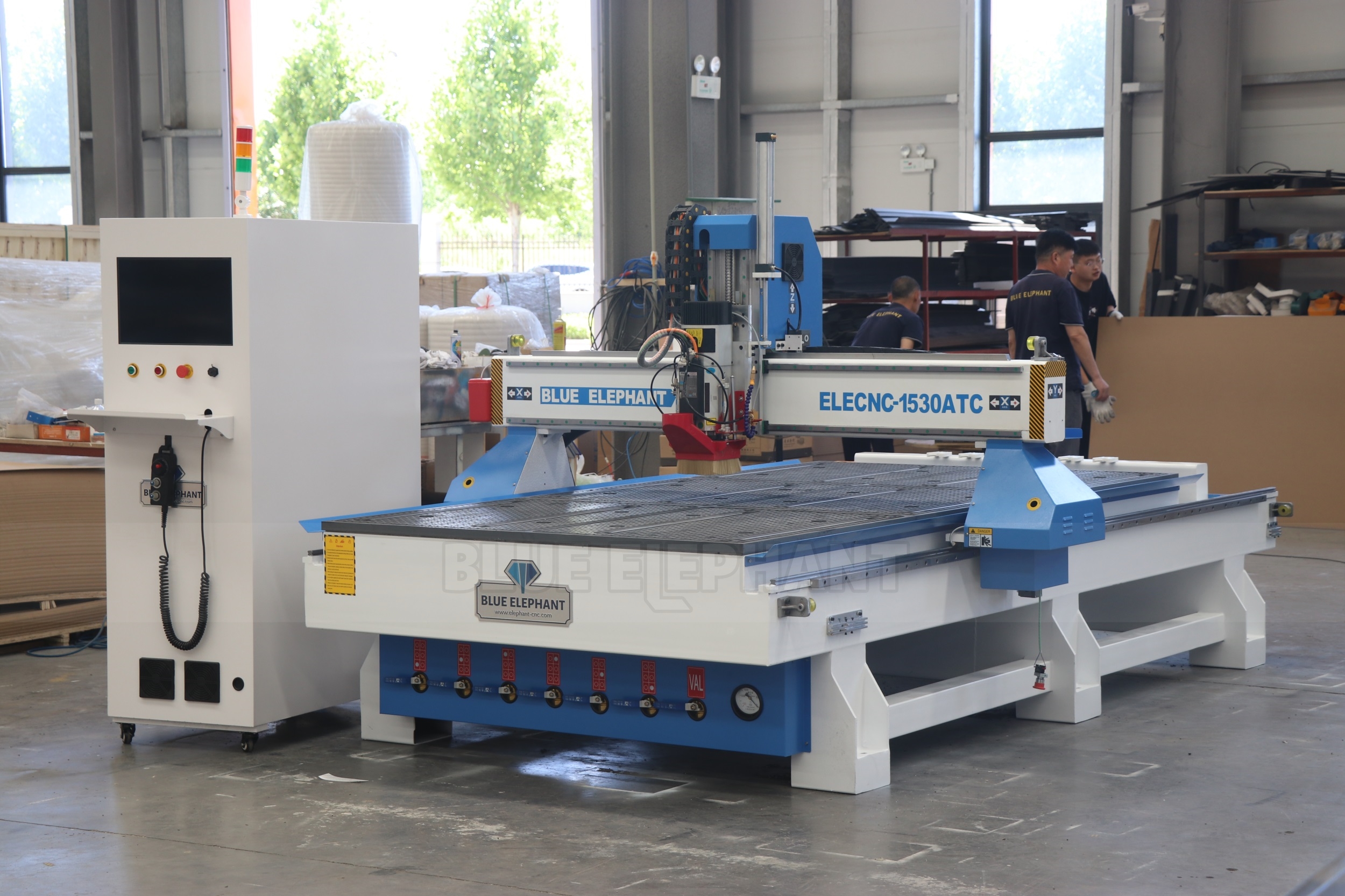

This 1530 ATC CNC router is one of the most classic and popular CNC among the tool change engraving machines. It adopts the linear tool change magazine with a fast tool change speed. And the tool changing can be completed within a few seconds, which greatly improves productivity.
1. Vacuum table saves time of fixing workpiece such as MDF plate on the table.
2. 9kw HQD ATC spindle, powerful and the cutting ability in the workpiece is stronger.
3. The CNC machine is equipped with a separate control cabinet, more convenient in terms of operation and maintenance.
4. This machine has always been well received by large companies or someone with diverse processing needs.
| Model | ELECNC1530ATC |
| Working area | 1500*3000*200mm |

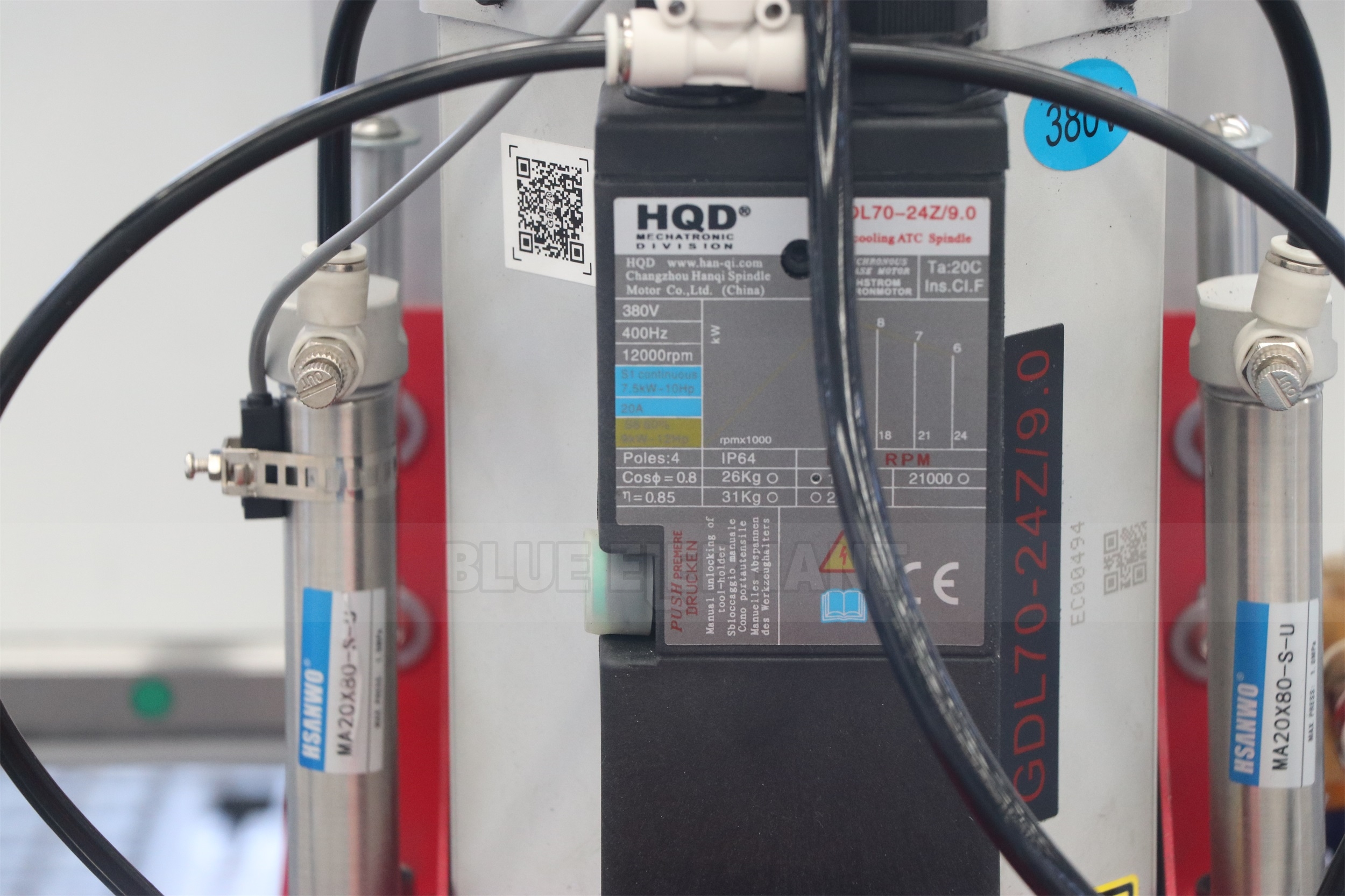

| Spindle type | 9KW HQD ATC spindle |
| Control system | Taiwan LNC MW2200/Syntec 60CB control system |
| Tool magazine | 8 pcs linear tool magazines with 8 pcs ISO 30 tool holders |
| Driving system | 1.5KW leadshine servo motor and driver |
| Reducer | Japan Shimpo reducer |
| Pins | Pop-up pins on the X and Y-axis |
| Worke table | Vacuum & T-slot working table |
| Vacuum pump | 11KW air cooling vacuum pump |
| Dust collect system | 3KW dust collector |
| Working voltage | 220V/380V, 3ph |
| Inverter type | 11kw |
| Drilling bank | Optional |
| Tool holder with collet | ISO30, ER32 collet: φ4, φ6, 1/8, 1/2 |
| Machine structure | Heavy duty body |
| Linear guide | Taiwan Original Linear guide |
| Transmission | X, Y axis: Taiwan /Germany helical rack and pinion Z axis: Taiwan TBI high precision ball screw |
| Lubrication system | Automatic lubrication system |
| Tool calibration | Auto tool sensor calibration |
| Cables | Germany Igus cables with CE, cUL certificate |
| Compatible software | Artcam, Alphcam, Type 3, Ucancam, Aspire, etc. |
| Command language | G Code & M Code |
| Traveling speed | 60m/min |
| Working speed | 0-25m/min |
| Re-positioning accuracy | ±0.03mm |
| System resolution | ±0.0025mm |
| Working accuracy | ±0.07mm |
| Working air pressure | 0.8MPa |
| Model | 1325/1530/2030/2128/2040 etc. |
| Spindle type | 9.6KW Italy HSD ATC spindle, ES951 |
| Driving system | 1000W Japan YASKAWA servo driver with 850W YASKAWA servo motor |
| Cooling sprayer | Water mist cooling sprayer |
Click for details

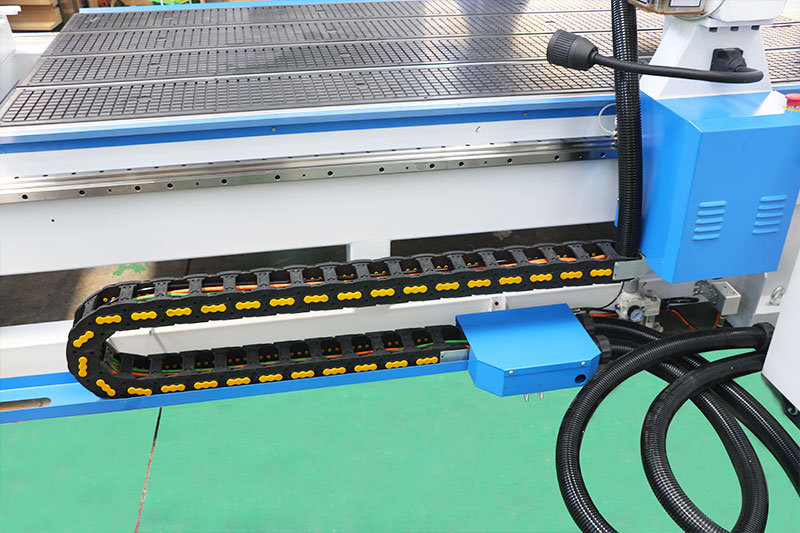

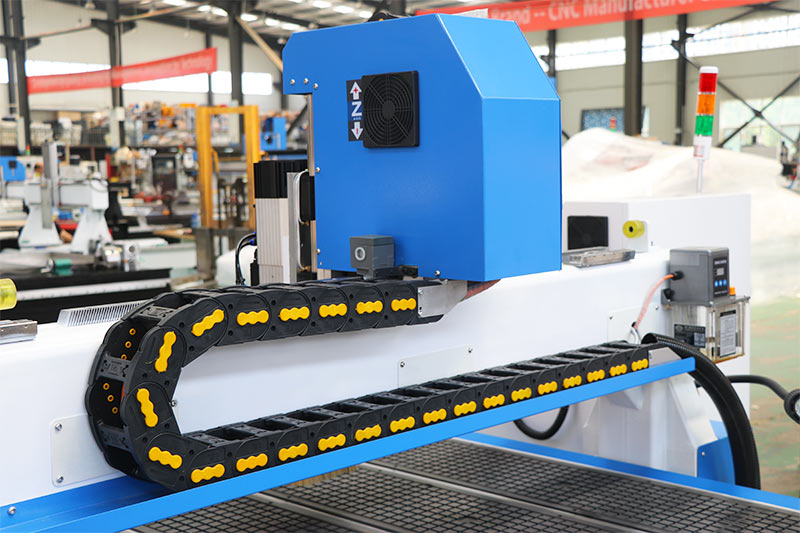

Towline

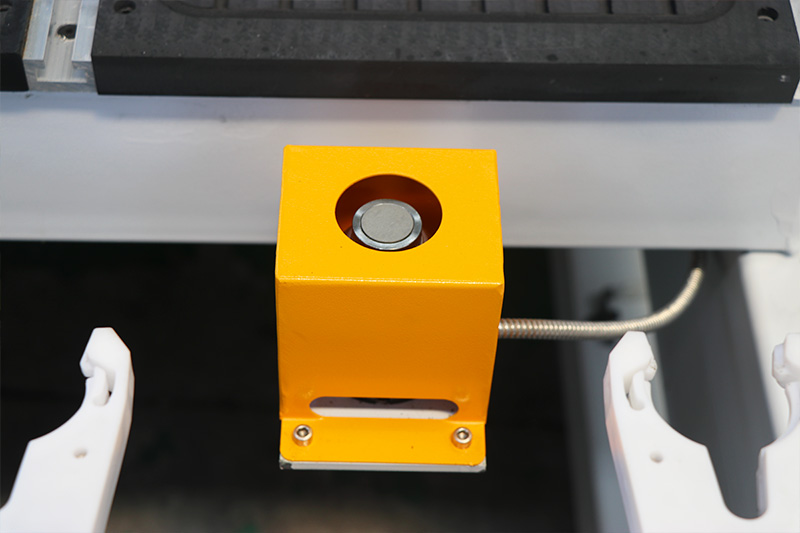

Tool sensor
Worktable

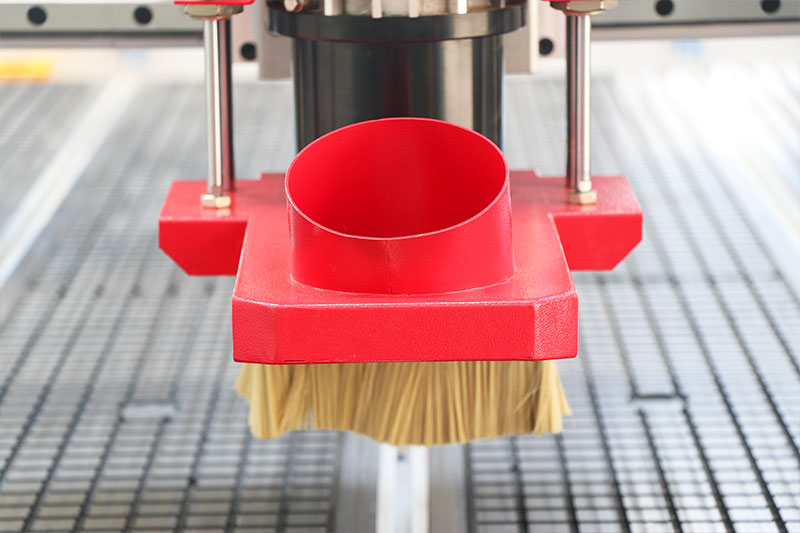

Head
