Introduction:

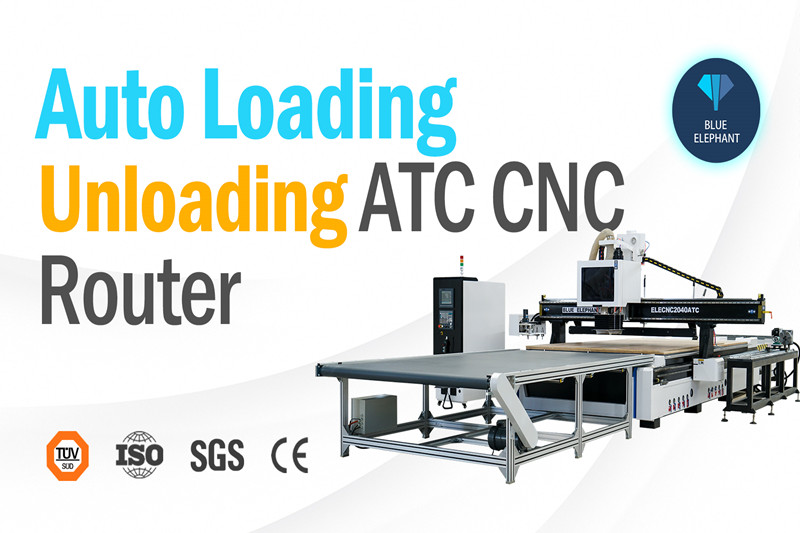

This is an ATC CNC router with automatic loading and unloading platforms, an aggregate head and a rotary axis. It's effective working area is 2000x4000mm. Adopting the carousel tool changing method, it has the features of fast tool change. And it greatly improves the processing efficiency of the machine, and it is the first choice for users with large production volumes.
Major parameters of the 2040 ATC rotary axis CNC router with aggregate head
| Terms |
Parameter |
| Model |
ELECNC-2040ATC |
| Working area |
2000x4000mm |
| C axis+aggregate head |
Italian HSD C axis with aggregate head |
| Spindle |
Original ATC 9.6KW Italy HSD spindle |
| Spindle speed |
24000RPM |
| Motor and drive |
Japan YASKAWA 850W servo motor and 1000W drivers |
| Control system |
Taiwan SYNTEC 21MA-E control system |
| Inverter |
Taiwan Delta 11KW |
| Reducer |
Japan Shimpo reducer |
| Machine Frame |
New type thicker and bigger heavy duty |
| Working table |
Entire vacuum work table |
| Tool Magazine |
8 pieces with Carousel Tools Changer |
| Cooling System |
Air cooling |
| Lubrication system |
1.5L Automatic lubrication system for rails |
| Tool sensor |
Automatic tool sensor |
| Voltage |
380v 3ph 50hz |
Contact us to know more parameters of this machine.
