Automatic Edge Banding Circular Production Line
E60 Double Trimming Automatic Edge Banding Machine

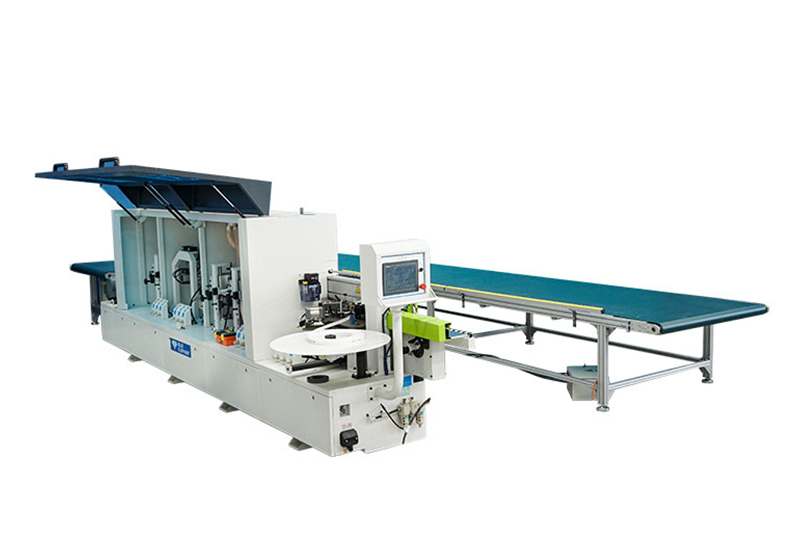

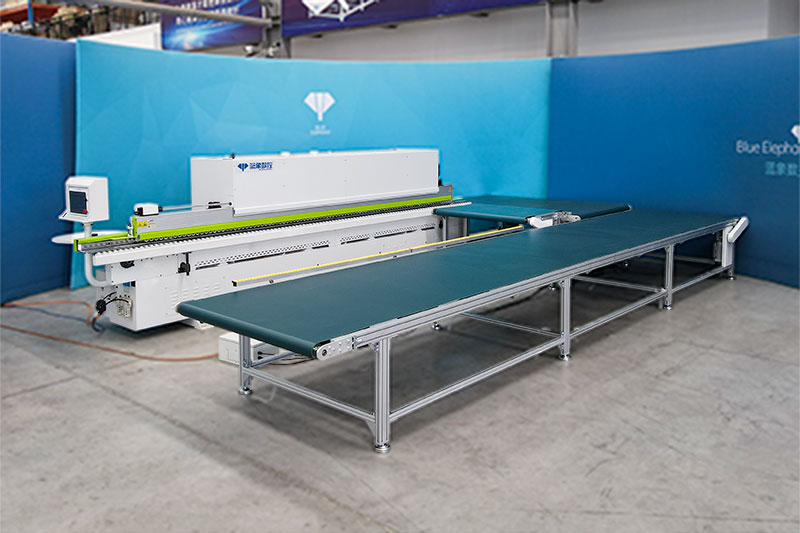

This is an automatic edgebander machine circular production line. It consists of a fully auto edge banding machine and auxiliary belt conveyor platforms. One operator is required to run this production line, which significantly improves the edge banding efficiency and reduces labor costs.
1.This line consists of one automatic edge banding machine and several belt conveyor platforms. It is very easy and convenient to operate this production line.
2.The edge banding machine can complete multiple functions automatically, include gluing, banding, end cutting, rough and fine trimming, profile tracking, scraping, and polishing.
3.It adopts a finishing unit with a high-speed motor, which ensures the finishing quality.
4.Only one operator is needed to operate this production line without running back and forth. It not only improves work efficiency but also saves much labor costs.
| Total power | 10.8kW |
| Dimension | 5600*960*1600mm |
| Feeding speed | 16-23m/min |
| Thickness of edge band | 0.4-3mm |
| Thickness of wood board | 10-60mm |
| Length of wood board | ≥150mm |
| Width of wood board | ≥60mm |
| Working pressure | 0.6Mpa |
Click for details
Click for solution
Click for quotation
