Machine information:
1 control system:mach3
2 auto tool sensor thickness:15mm

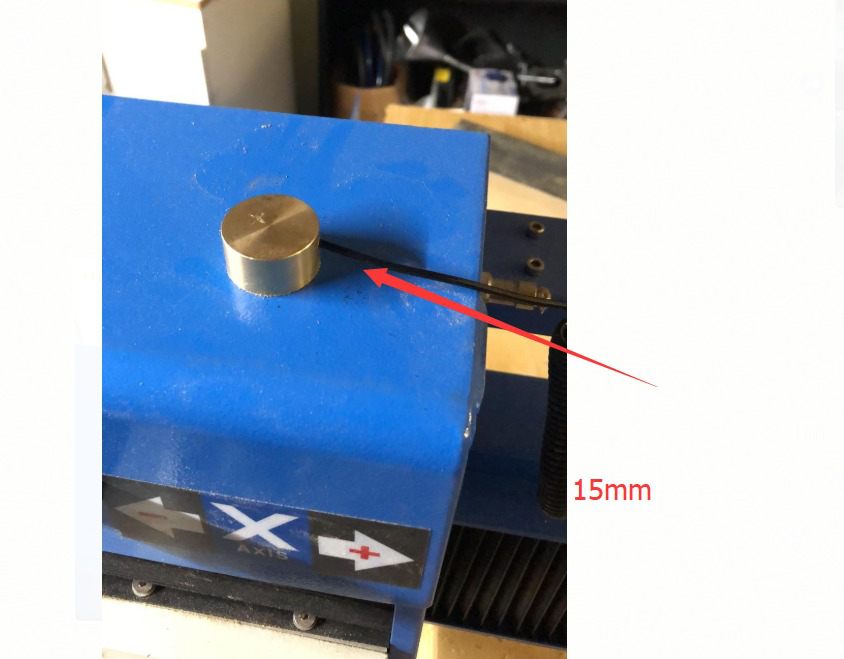

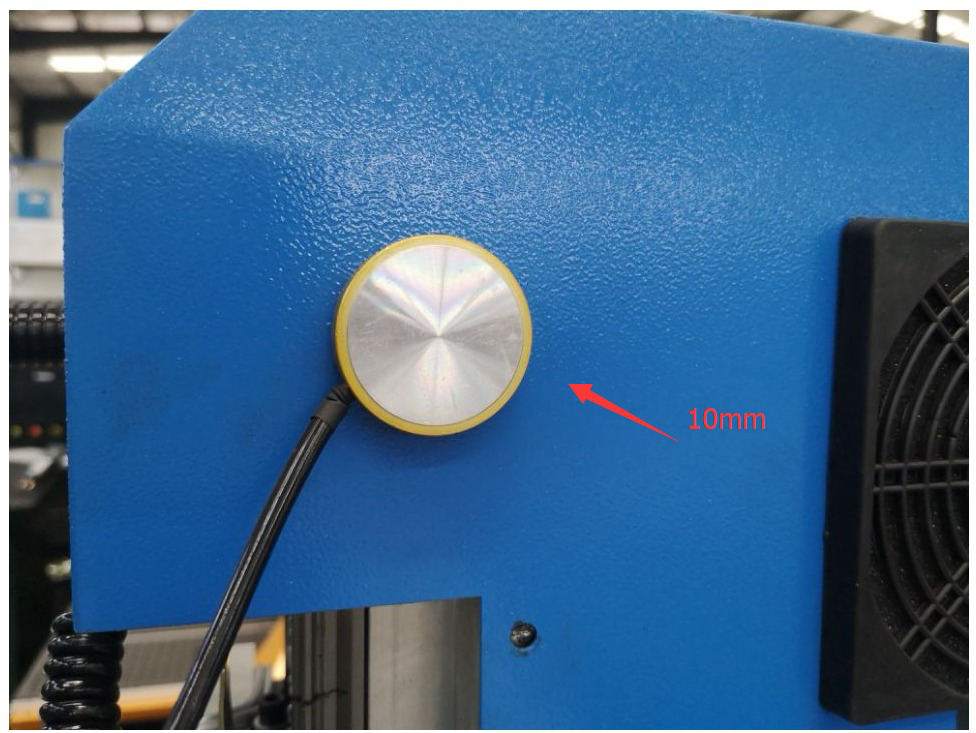

In our factory,we have two type auto tool sensor now,one is 10mmthickness,another one is 15mm thickness.
Like follow pic.

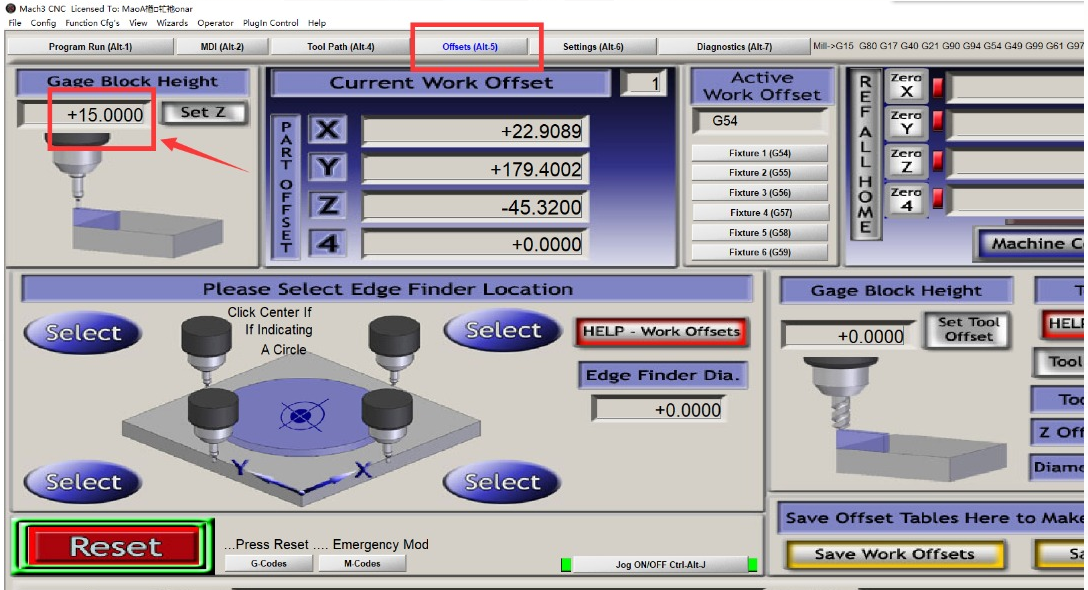

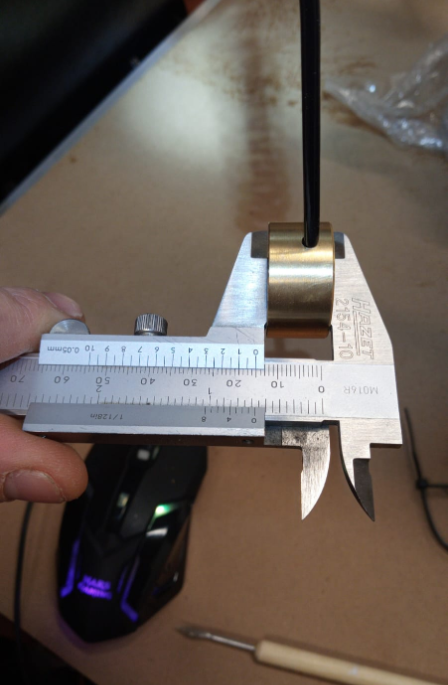

Customer measure their auto tool sensor thickness is 15mm,so we need input 15 to mach3-offset-Gage Block Height.
Input 15 then press “Enter” on keyboard.It is not available to click “SET Z”.
Auto tool sensor whatever is 10mm or 15mm,it both can use,and no other difference.
It is for Z axis.
